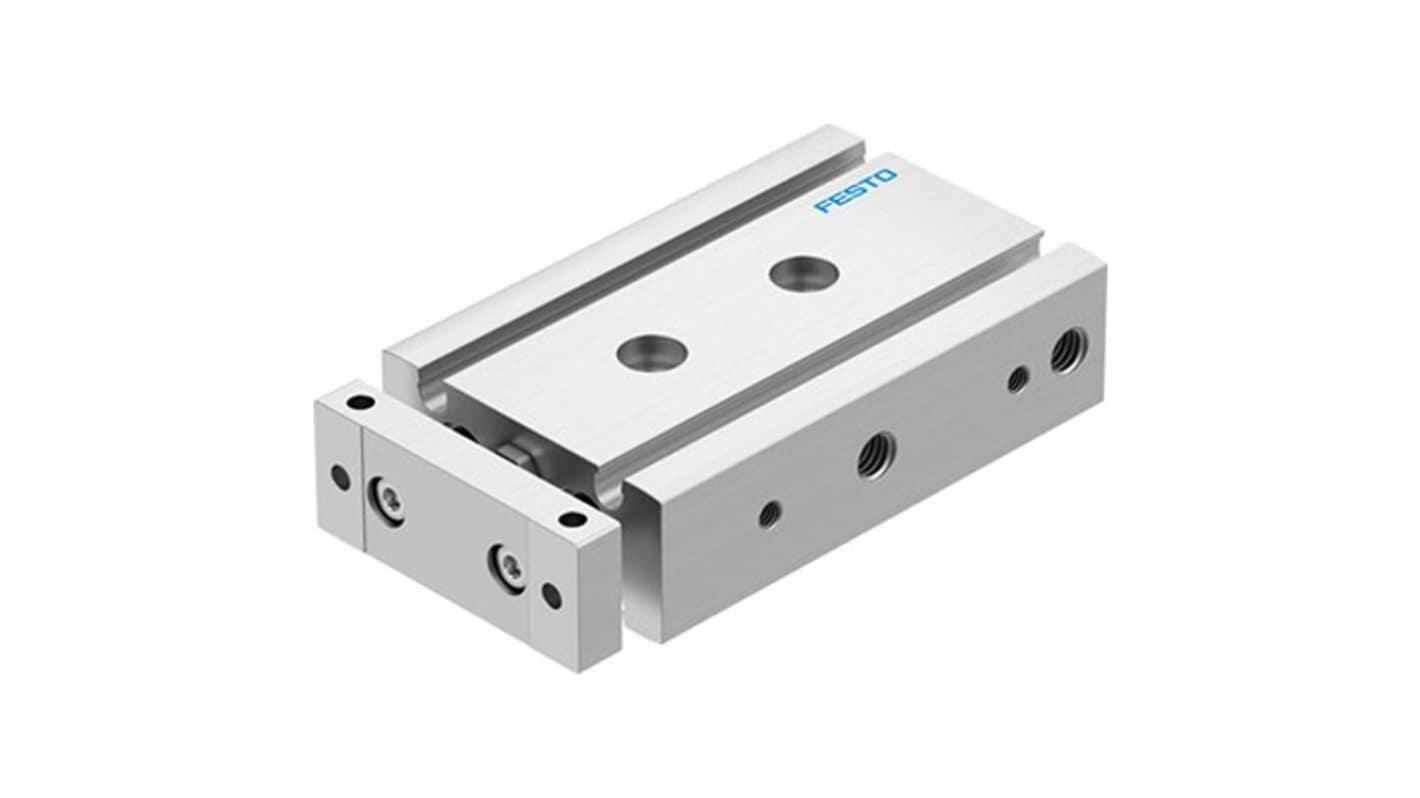

Festo Pneumatic Guided Cylinder - DGTZ-GF-6-20-P-A 6 mm Bore, DGTZ Series, 20 mm Double Acting Acting
- RS Stock No.:
- 342-372
- Mfr. Part No.:
- DGTZ-GF-6-20-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£112.04
(exc. VAT)
£134.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £112.04 |
*price indicative
- RS Stock No.:
- 342-372
- Mfr. Part No.:
- DGTZ-GF-6-20-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 6mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Weight | 98g | |
| Standards/Approvals | VDMA24364 zone III, RoHS, Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4) | |
| Width | 35mm | |
| Height | 14mm | |
| Stroke Length | 20mm | |
| Length | 123mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 6mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Weight 98g | ||
Standards/Approvals VDMA24364 zone III, RoHS, Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4) | ||
Width 35mm | ||
Height 14mm | ||
Stroke Length 20mm | ||
Length 123mm | ||
- COO (Country of Origin):
- CN
The Festo Twin Cylinder Actuator redefines versatility and precision in automated environments. Designed for a range of pneumatic applications, it combines an adjustable stroke length with robust construction, ensuring reliable operation in diverse conditions. The innovative elastic cushioning system ensures a gentle approach, safeguarding both the actuator and connected components. With its remarkable pressure range, this unit excels in energy efficiency while delivering high performance. User friendly design features such as a choice of mounting positions and proximity detection further enhance its adaptability, making this actuator an essential component for modern automated systems.
Optimised for double acting operation to enhance performance
Cushioning mechanism provides smooth movement throughout the stroke
Plain bearing guide assures consistent and reliable operation
Low corrosion resistance class ensures longevity even in challenging environments
RoHS compliant materials uphold modern environmental standards
Compact and lightweight design facilitates easier installation and integration
