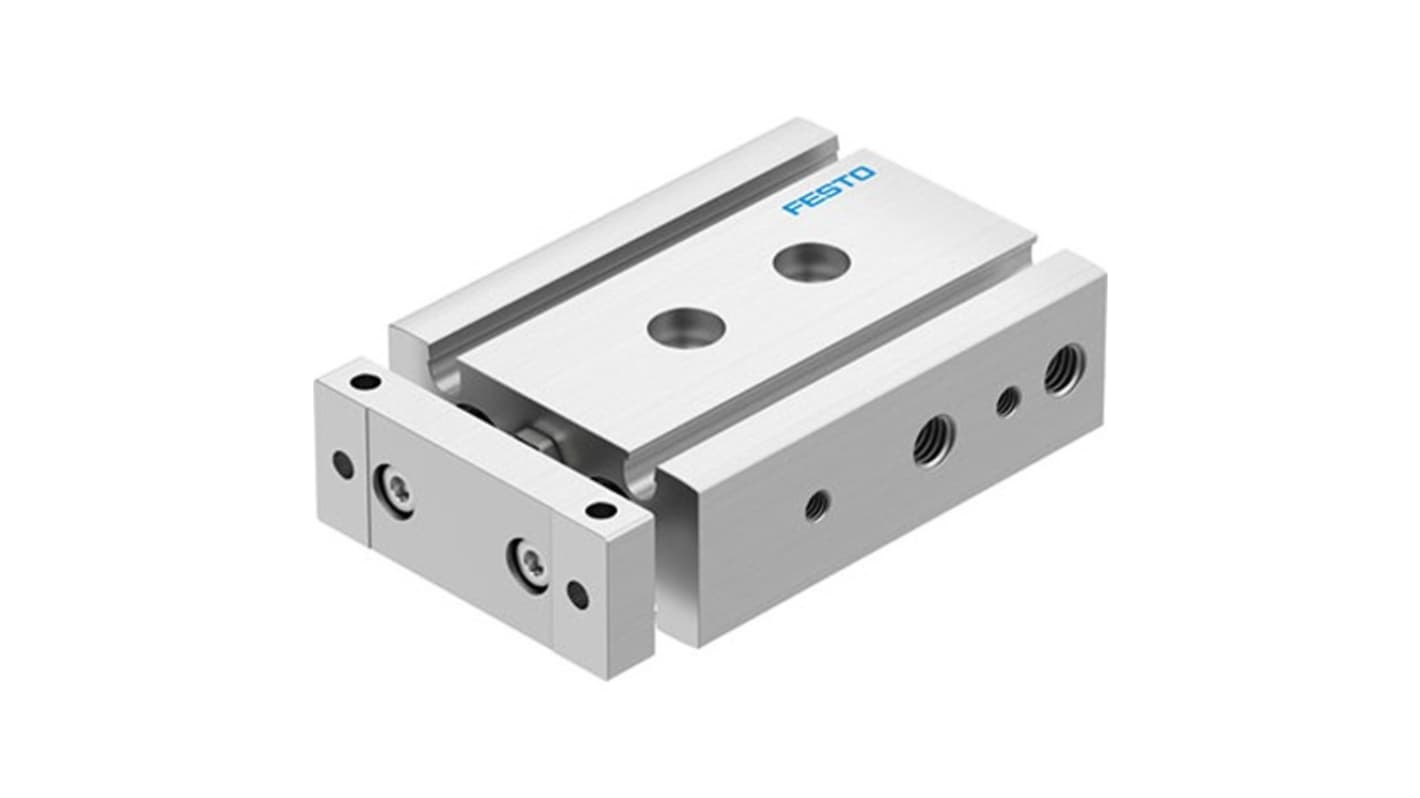

Festo Pneumatic Guided Cylinder - DGTZ-GF-6-10-P-A 6 mm Bore, DGTZ Series, 10 mm Double Acting Acting
- RS Stock No.:
- 343-867
- Mfr. Part No.:
- DGTZ-GF-6-10-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£109.30
(exc. VAT)
£131.16
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £109.30 |
*price indicative
- RS Stock No.:
- 343-867
- Mfr. Part No.:
- DGTZ-GF-6-10-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 6mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -10°C | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 6 according to ISO 14644-1, RoHS, ISO 8573-1:2010 (7:4:4), VDMA24364 zone III | |
| Height | 14mm | |
| Weight | 82g | |
| Width | 35mm | |
| Length | 103mm | |
| Stroke Length | 10mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 6mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Elastic | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Minimum Operating Temperature -10°C | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 6 according to ISO 14644-1, RoHS, ISO 8573-1:2010 (7:4:4), VDMA24364 zone III | ||
Height 14mm | ||
Weight 82g | ||
Width 35mm | ||
Length 103mm | ||
Stroke Length 10mm | ||
- COO (Country of Origin):
- CN
The Festo Twin-cylinder actuator is engineered for precision and efficiency in pneumatic systems. With its robust design and versatile specifications, it excels in both performance and reliability across various applications. This actuator features a double-acting mode, ensuring effective operational capacity. Designed to accommodate a wide operating pressure range, it performs optimally with compressed air, making it an ideal choice for operational flexibility in numerous industrial settings. The lightweight yet sturdy construction enhances its usability while maintaining its performance under different conditions, making it a reliable component in automated processes and machinery.
Designed with elastic cushioning rings for smooth end position dampening
Allows for adjustable end position ranges for customised application flexibility
Equipped with a plain bearing guide for enhanced stability and support
Incorporates proximity switch detection for precise position feedback
Crafted from RoHS compliant materials ensuring environmental safety
