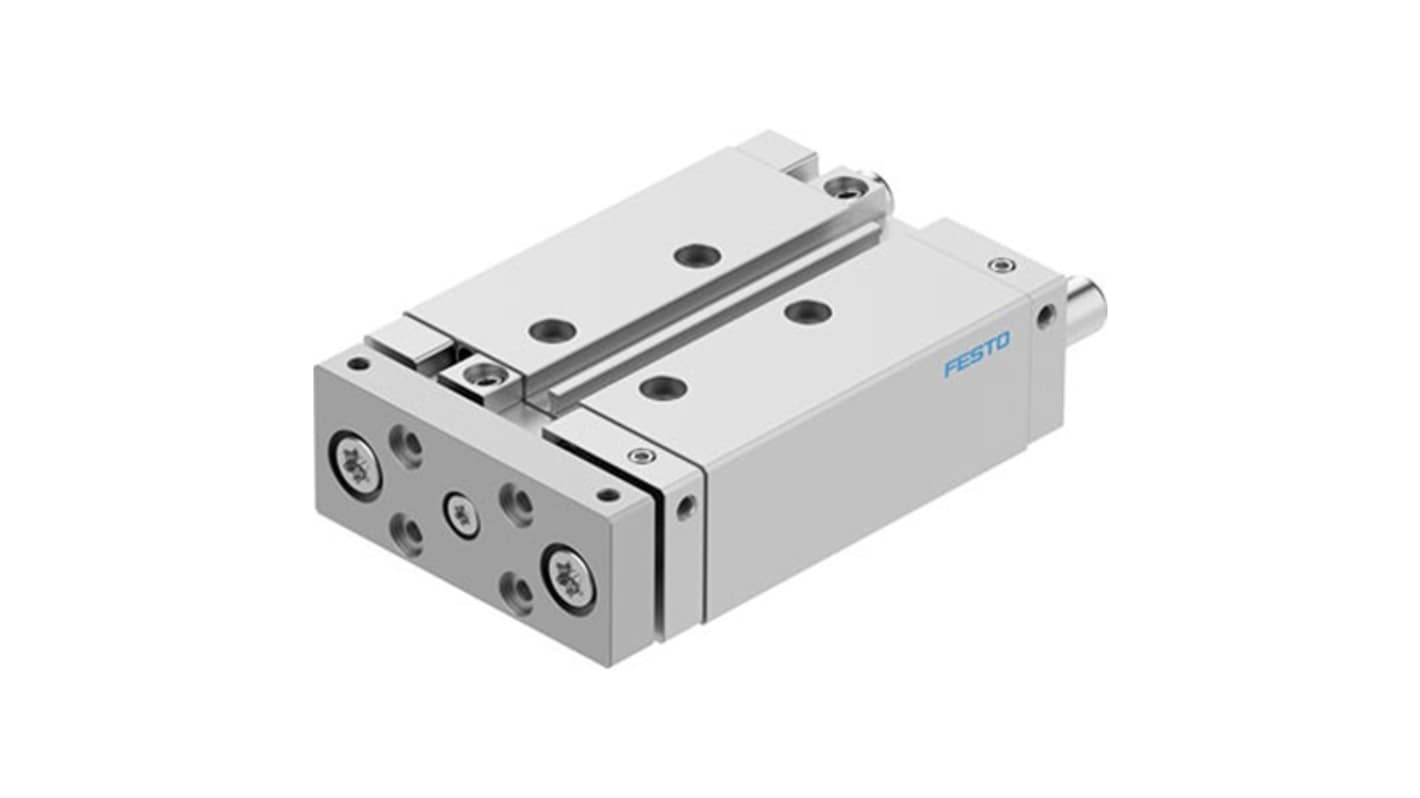

Festo Pneumatic Guided Cylinder - DFM-20-50-B-PPV-A-KF 20 mm Bore, DFM Series, 50 mm Double Acting Acting
- RS Stock No.:
- 341-901
- Mfr. Part No.:
- DFM-20-50-B-PPV-A-KF
- Brand:
- Festo
Subtotal (1 unit)*
£445.39
(exc. VAT)
£534.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £445.39 |
*price indicative
- RS Stock No.:
- 341-901
- Mfr. Part No.:
- DFM-20-50-B-PPV-A-KF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 20mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Wrought Aluminium Alloy | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 20mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Wrought Aluminium Alloy | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- DE
The Festo Guided drive excels in precision applications, offering an impressive stroke of 50 mm with a piston diameter of 20 mm. Engineered with pneumatic cushioning, it ensures a smooth and controlled operation at both ends, providing adaptability for various mounting positions. Its recirculating ball bearing guide enhances durability while its double-acting mechanism makes it an ideal choice for dynamic tasks. Operating effectively within a range of pressures, this equipment is suitable for cleanroom environments, boasting compliance with rigorous standards. Crafted for robustness, the drive is compatible with lubricated operation, affirming its reliability in demanding conditions. Overall, this guided drive stands out as a versatile solution for precision and performance in automation processes.
Dual-action operation enhances efficiency in various tasks
Adjustable pneumatic cushioning ensures tailored performance
Smooth recirculating ball bearing guide improves longevity
Cleanroom compliant design suited for sensitive environments
Materials used are RoHS-compliant for environmental safety
