Festo QSMK Series, 153420 Push-in Fitting 6mm Push-in, Male, 1/8 in, R
- RS Stock No.:
- 250-2710
- Mfr. Part No.:
- QSMK-1/8-6
- Brand:
- Festo
Subtotal (1 unit)*
£6.13
(exc. VAT)
£7.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 23 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.13 |
*price indicative
- RS Stock No.:
- 250-2710
- Mfr. Part No.:
- QSMK-1/8-6
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Push-in Fitting | |
| Connection Thread Size | 1/8 in | |
| Connection Thread Standard | R | |
| Series | QSMK | |
| Connection Gender | Male | |
| Tube Connection Type | Push-in | |
| Tube Connection Size | 6mm | |
| Material | Nitrile Rubber (NBR), High Alloy Steel, Polyoxymethylene, Brass Nickel Plated | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Finish | Nickel | |
| Connection Type | R 1/8 Male | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Push-in Fitting | ||
Connection Thread Size 1/8 in | ||
Connection Thread Standard R | ||
Series QSMK | ||
Connection Gender Male | ||
Tube Connection Type Push-in | ||
Tube Connection Size 6mm | ||
Material Nitrile Rubber (NBR), High Alloy Steel, Polyoxymethylene, Brass Nickel Plated | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Finish Nickel | ||
Connection Type R 1/8 Male | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

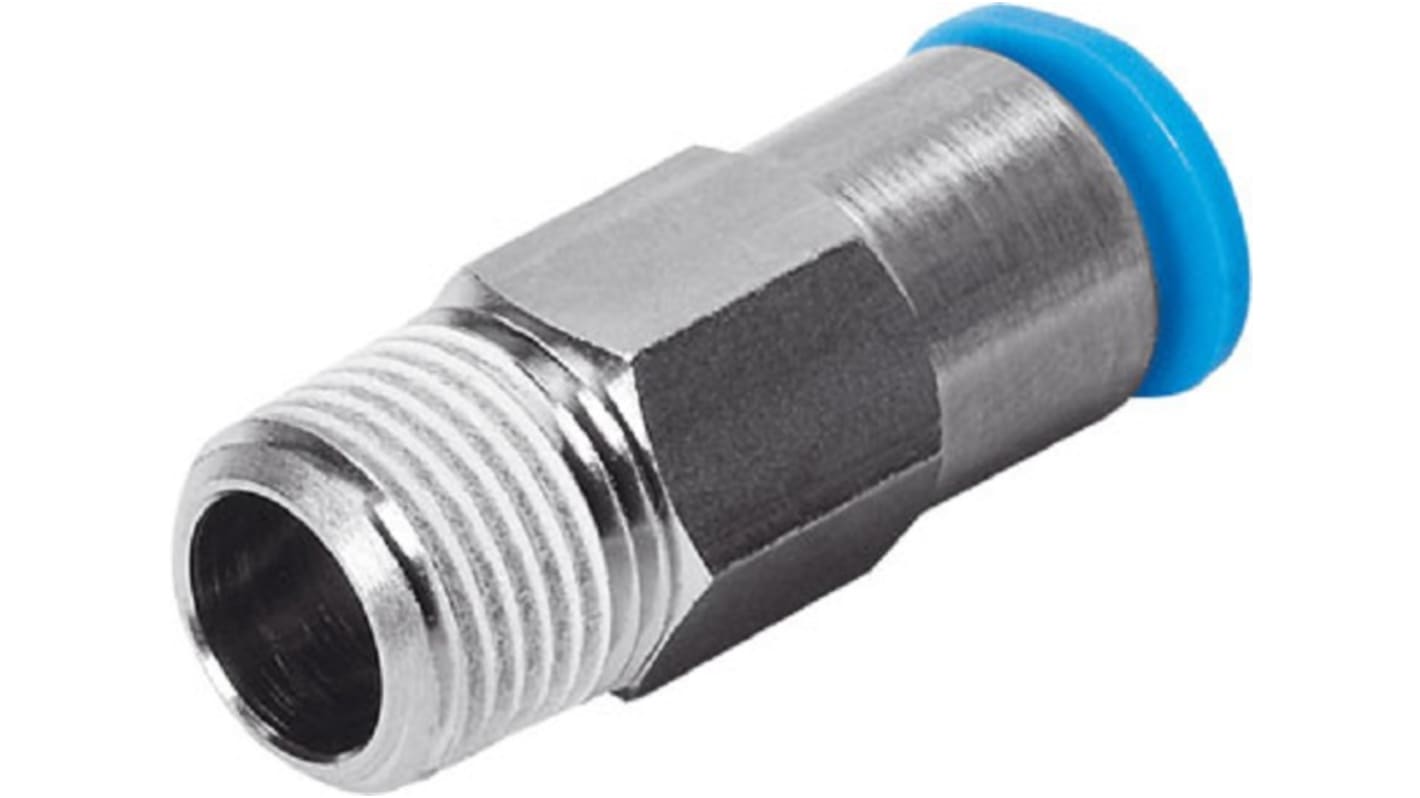

Festo QSMK Series Push-in Fitting, 6mm Tube Connection size, 1/8 inches Connection Thread size - QSMK-1/8-6, Numeric Part Number: 153420
This push-in fitting is a pneumatic connector designed to provide secure tube-to-thread connections in industrial systems. It links 6 mm tubing to a 1/8 R male threaded port and is intended for general pneumatic distribution and control applications where compact, Durable couplings are required.
Features & Benefits
• Nickel-plated brass body provides corrosion resistance and durability
• Push-in tube connection enables quick tool-free assembly
• Nitrile rubber seal ensures reliable sealing under pneumatic pressure
• Polyoxymethylene components reduce friction and wear
• Rated for continuous use up to 80°C enhancing thermal tolerance
• Conforms to RoHS for restricted substances compliance
• Push-in tube connection enables quick tool-free assembly
• Nitrile rubber seal ensures reliable sealing under pneumatic pressure
• Polyoxymethylene components reduce friction and wear
• Rated for continuous use up to 80°C enhancing thermal tolerance
• Conforms to RoHS for restricted substances compliance
**Applications**
• Suitable for pneumatic control manifolds in automation cells
• Ideal for compressed Air distribution in machine tools
• Used with sensor and actuator tubing in electrical panels
• Can be used for pneumatic test rigs and prototyping lines
• Suitable for retrofitting pneumatic connections on existing equipment
• Ideal for compressed Air distribution in machine tools
• Used with sensor and actuator tubing in electrical panels
• Can be used for pneumatic test rigs and prototyping lines
• Suitable for retrofitting pneumatic connections on existing equipment
What materials are in contact with the media and how do they perform?
Sealing is achieved with nitrile rubber which offers good resistance to oils commonly found in pneumatic systems, while internal moving parts use polyoxymethylene to maintain low friction and dimensional stability.
How does the fitting handle mechanical loading at the thread?
The threaded Interface is MADE from high-alloy steel and pairs with a nickel-plated brass exterior to provide mechanical strength for standard pneumatic mounting and repeated assembly cycles.
Is the connector suitable for high-temperature process environments?
The fitting is specified for operation up to 80°C, making it suitable for elevated temperature zones typical in industrial pneumatic circuits.
What tube connection method is used and how does it affect maintenance?
A push-in connection type is used, allowing Rapid insertion and straightforward release for maintenance without special tools.
Which standard ensures restricted hazardous substances are limited in the component?
The product meets RoHS requirements, restricting the use of certain hazardous materials in its construction.
