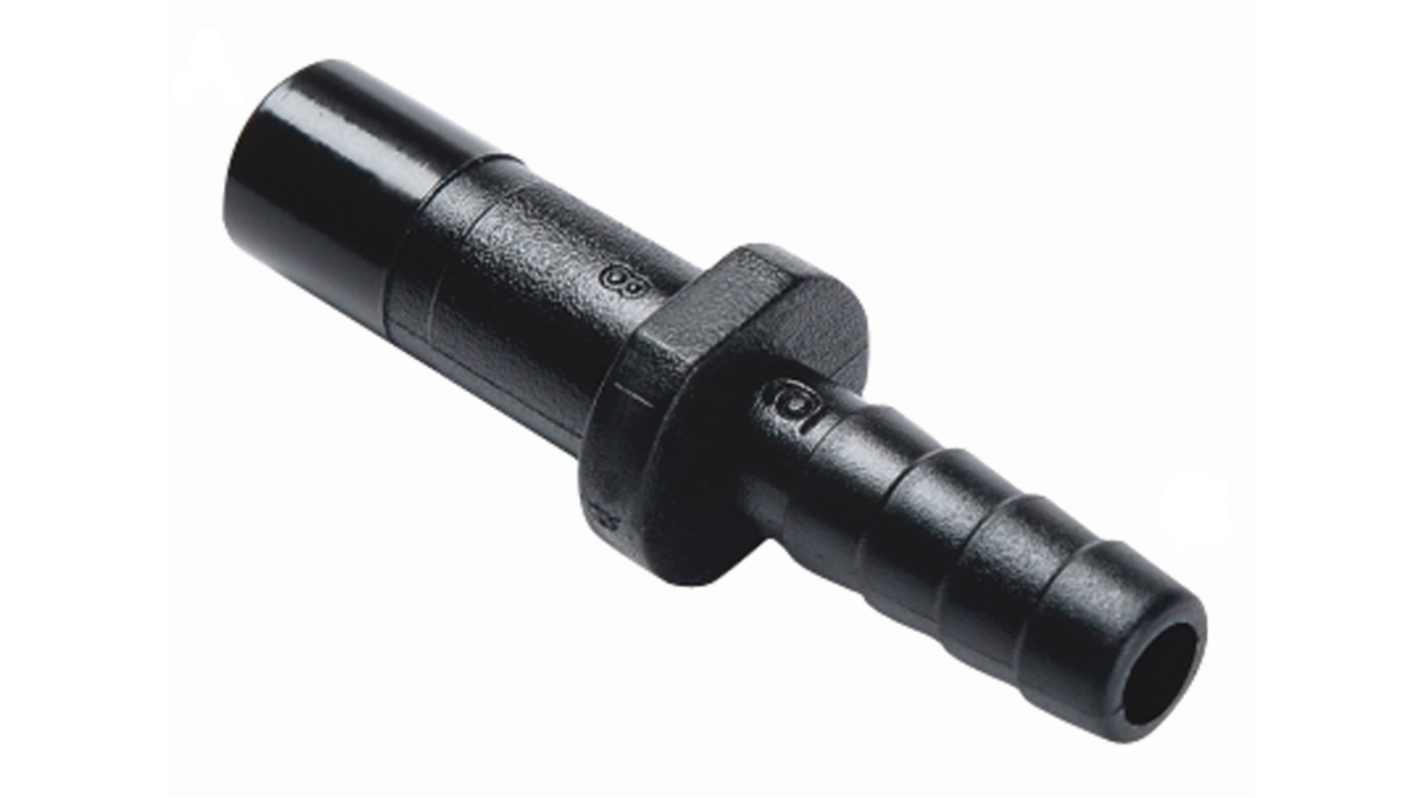

RS PRO Reducer, Push In 12 mm to 10 mm, Plug-in Connection Style
- RS Stock No.:
- 528-385
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£7.31
(exc. VAT)
£8.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £7.31 | £1.462 |
*price indicative
- RS Stock No.:
- 528-385
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Connector A | Push In 12 mm | |
Connector B | 10 mm | |
Pneumatic Fitting Type | Reducer | |
Connection Style | Plug-in | |
Number of Inlet Ports | 1 | |
Number of Outlet Ports | 1 | |
Maximum Operating Pressure | 10bar | |
Body Material | Acetal Copolymer | |
Minimum Operating Temperature | 1°C | |
Food Grade | Yes | |
Angle | Straight | |
Maximum Operating Temperature | 65°C | |
Mounting Type | Inline | |
Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Connector A Push In 12 mm | ||
Connector B 10 mm | ||
Pneumatic Fitting Type Reducer | ||
Connection Style Plug-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Maximum Operating Pressure 10bar | ||
Body Material Acetal Copolymer | ||
Minimum Operating Temperature 1°C | ||
Food Grade Yes | ||
Angle Straight | ||
Maximum Operating Temperature 65°C | ||
Mounting Type Inline | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR
RS PRO Pneumatic Fitting, 10 mm Stem, Inline
This RS PRO pneumatic fitting is designed for efficient and reliable fluid transfer in various industrial applications. It is ideal for use with water, food, and air contact, providing a versatile solution for connecting and releasing tubes quickly and easily. The fitting is constructed from non-toxic, NSF and ACS approved materials, ensuring safety and compliance with international standards.
Features and Benefits
Designed for Water, Food, and Air Contact: Offers versatility in applications, including selected gases, vacuum, and liquids
Easy Connection and Release: Saves time and reduces expenses with quick tube connectivity
Non-Toxic Material: Ensures safety with NSF and ACS approved construction
High-Temperature and Pressure Resistance: Operates efficiently up to 65 °C and 10 bar
Inline Mounting Type: Simplifies installation in various systems
Easy Connection and Release: Saves time and reduces expenses with quick tube connectivity
Non-Toxic Material: Ensures safety with NSF and ACS approved construction
High-Temperature and Pressure Resistance: Operates efficiently up to 65 °C and 10 bar
Inline Mounting Type: Simplifies installation in various systems
Applications
Water
Beverage
Vacuum
Compressed Air
Gases and Liquids Suitable with Construction Material
Beverage
Vacuum
Compressed Air
Gases and Liquids Suitable with Construction Material
Additional Information
Complies with ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS standards
Food grade quality for safe use in food and beverage industries
Reducer type with 10 mm push-in connection for seamless integration
Food grade quality for safe use in food and beverage industries
Reducer type with 10 mm push-in connection for seamless integration
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
