Carlo Gavazzi Through Beam Photoelectric Sensor, Cylindrical Sensor
- RS Stock No.:
- 609-748
- Mfr. Part No.:
- MPFT15-4C
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£26.18
(exc. VAT)
£31.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.18 |
*price indicative
- RS Stock No.:
- 609-748
- Mfr. Part No.:
- MPFT15-4C
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Sensor Style | Cylindrical | |
| Product Type | Photoelectric Sensor | |
| Detection Type | Through Beam | |
| Output Type | Relay | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 50V ac | |
| Maximum DC Voltage | 50V dc | |
| Light Source | 880 mm | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP40 | |
| Maximum Operating Temperature | 60°C | |
| Maximum Current | 0.5A | |
| Standards/Approvals | EN12453, UL325, UL508, CSA-C22.2 No.247, CE, EN12978 | |
| Response Time | 50ms | |
| Hazardous Area Certification | No | |
| Mount Type | Snap-On | |
| Housing Material | Polycarbonate | |
| Series | MPFRS | |
| Detection Range | 15 m | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Sensor Style Cylindrical | ||
Product Type Photoelectric Sensor | ||
Detection Type Through Beam | ||
Output Type Relay | ||
Terminal Type Screw | ||
Maximum AC Voltage 50V ac | ||
Maximum DC Voltage 50V dc | ||
Light Source 880 mm | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP40 | ||
Maximum Operating Temperature 60°C | ||
Maximum Current 0.5A | ||
Standards/Approvals EN12453, UL325, UL508, CSA-C22.2 No.247, CE, EN12978 | ||
Response Time 50ms | ||
Hazardous Area Certification No | ||
Mount Type Snap-On | ||
Housing Material Polycarbonate | ||
Series MPFRS | ||
Detection Range 15 m | ||
- COO (Country of Origin):
- LT

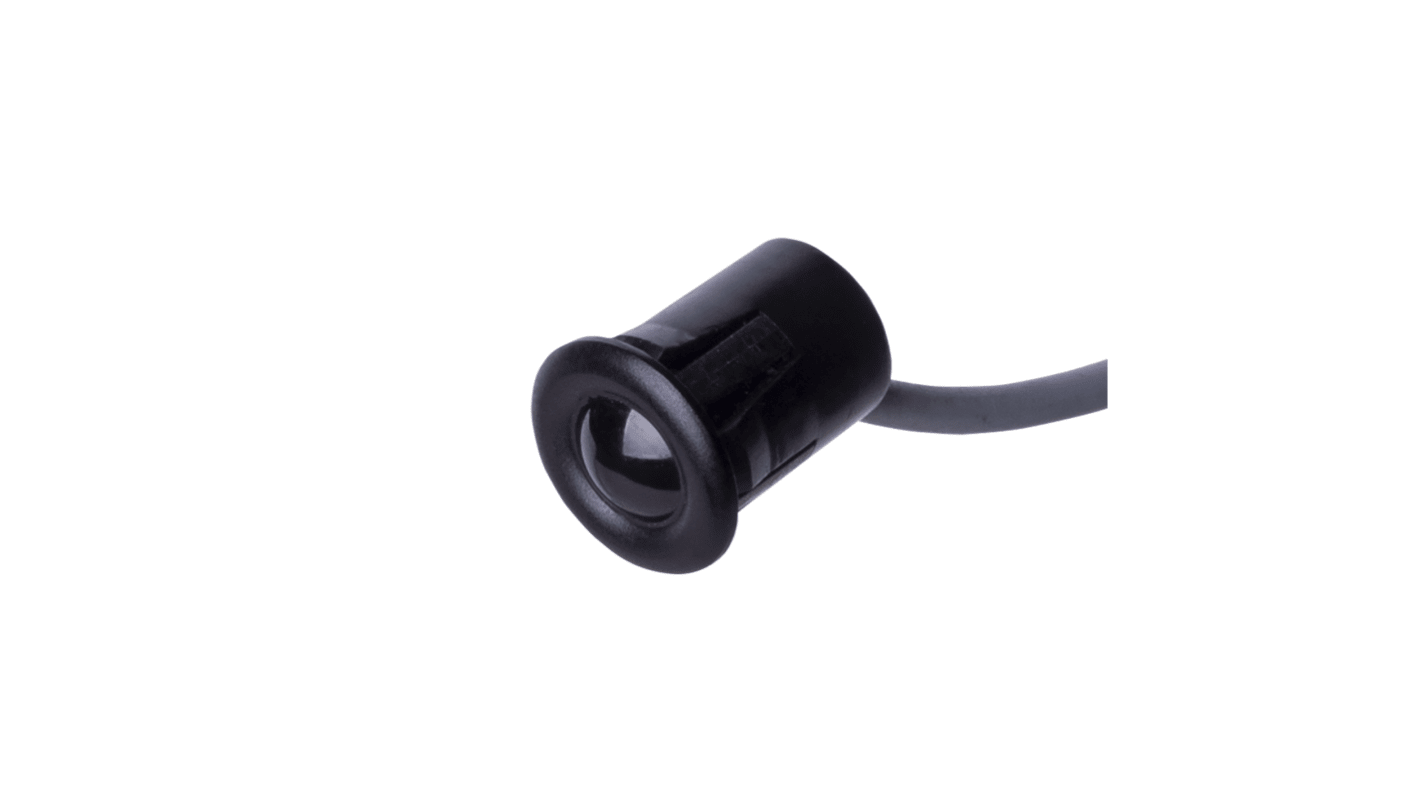

The Carlo Gavazzi Through-beam photoelectric sensor transmitter operates using modulated infrared light at 880nm, ensuring reliable detection performance. It features an optical angle of 4 degrees and comes with a cable and connector for efficient signal transmission. The sensor is housed in a durable 12mm diameter plastic casing, making it suitable for various industrial applications.
Connection type Cable with connector
Housing type Cylindrical and smooth barrel
Housing Material Plastic
