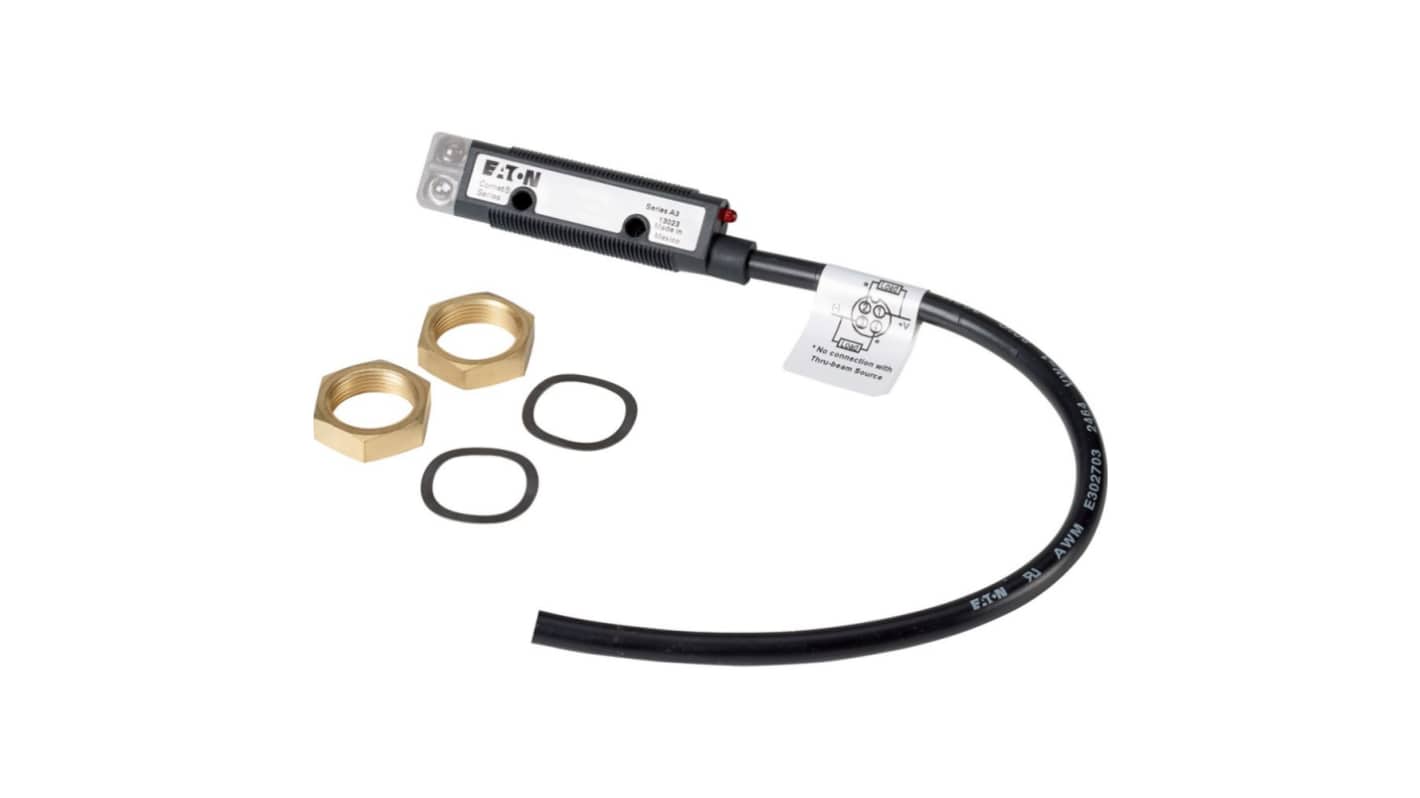

Eaton Diffuse Reflective Photoelectric Sensor, Rectangular Sensor, 100 mm, PNP, IP67
- RS Stock No.:
- 247-949
- Mfr. Part No.:
- 135589 13101AQD07
- Brand:
- Eaton
Subtotal (1 unit)*
£110.02
(exc. VAT)
£132.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £110.02 |
*price indicative
- RS Stock No.:
- 247-949
- Mfr. Part No.:
- 135589 13101AQD07
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Sensor Style | Rectangular | |
| Product Type | Photoelectric Sensor | |
| Detection Type | Diffuse Reflective | |
| Output Type | PNP | |
| Terminal Type | M12 | |
| Maximum AC Voltage | 0V ac | |
| Maximum DC Voltage | 30V dc | |
| Interface Type | Plug-In | |
| Light Source | Infrared | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current | 250mA | |
| Maximum Operating Temperature | 70°C | |
| Response Time | 1ms | |
| Standards/Approvals | CE, CSA, CSA-C22.2 No. 14, CSA Class No.:3211-07, CSA File No.:50513, IEC/EN 60947-5-2, NRKH7, UL, UL 508, UL Category Control No.:NRKH, UL File No.:E117028 | |
| Housing Material | Plastic | |
| Hazardous Area Certification | CE, UL | |
| Mount Type | Cylindrical, Screw | |
| Series | Comet | |
| Detection Range | 100 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Sensor Style Rectangular | ||
Product Type Photoelectric Sensor | ||
Detection Type Diffuse Reflective | ||
Output Type PNP | ||
Terminal Type M12 | ||
Maximum AC Voltage 0V ac | ||
Maximum DC Voltage 30V dc | ||
Interface Type Plug-In | ||
Light Source Infrared | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Current 250mA | ||
Maximum Operating Temperature 70°C | ||
Response Time 1ms | ||
Standards/Approvals CE, CSA, CSA-C22.2 No. 14, CSA Class No.:3211-07, CSA File No.:50513, IEC/EN 60947-5-2, NRKH7, UL, UL 508, UL Category Control No.:NRKH, UL File No.:E117028 | ||
Housing Material Plastic | ||
Hazardous Area Certification CE, UL | ||
Mount Type Cylindrical, Screw | ||
Series Comet | ||
Detection Range 100 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MX
The Eaton Reflective sensor redefines precision in proximity sensing with its innovative design, delivering reliable performance in a range of applications. Engineered for versatility, this sensor is capable of detecting objects with an impressive sensing distance of up to 100mm, making it ideal for various industrial settings. Its robust construction includes an insulated material housing, ensuring durability in demanding environments. Operating on a DC voltage range of 10-30V, it seamlessly integrates with existing systems. The user-friendly plug-in connection simplifies installation, while the compact dimensions enhance space efficiency. Designed with safety in mind, this model features short-circuit protection and polarity reversal safeguards, offering peace of mind in operational safety. Experience excellence in automation with Eaton's commitment to quality and innovation.
Offers reliable object detection with an adjustable bright/dark switching principle
Utilises infrared light for enhanced sensing accuracy
Equipped with a status indication red LED for easy monitoring
Designed to withstand ambient temperatures from -40 °C to 70 °C for versatile application
Features a compact diameter of only 18mm, ideal for tight spaces
Offers a high switching frequency of 500 Hz, ensuring swift response times
Incorporates NEMA 6 and IP67 ratings, ensuring protection against dust and water
Supports a load current of up to 250 mA, catering to various operational needs
Includes a programmable/configurable switch function for tailored performance
Constructed with a plastic optical surface material, enhancing longevity and performance
