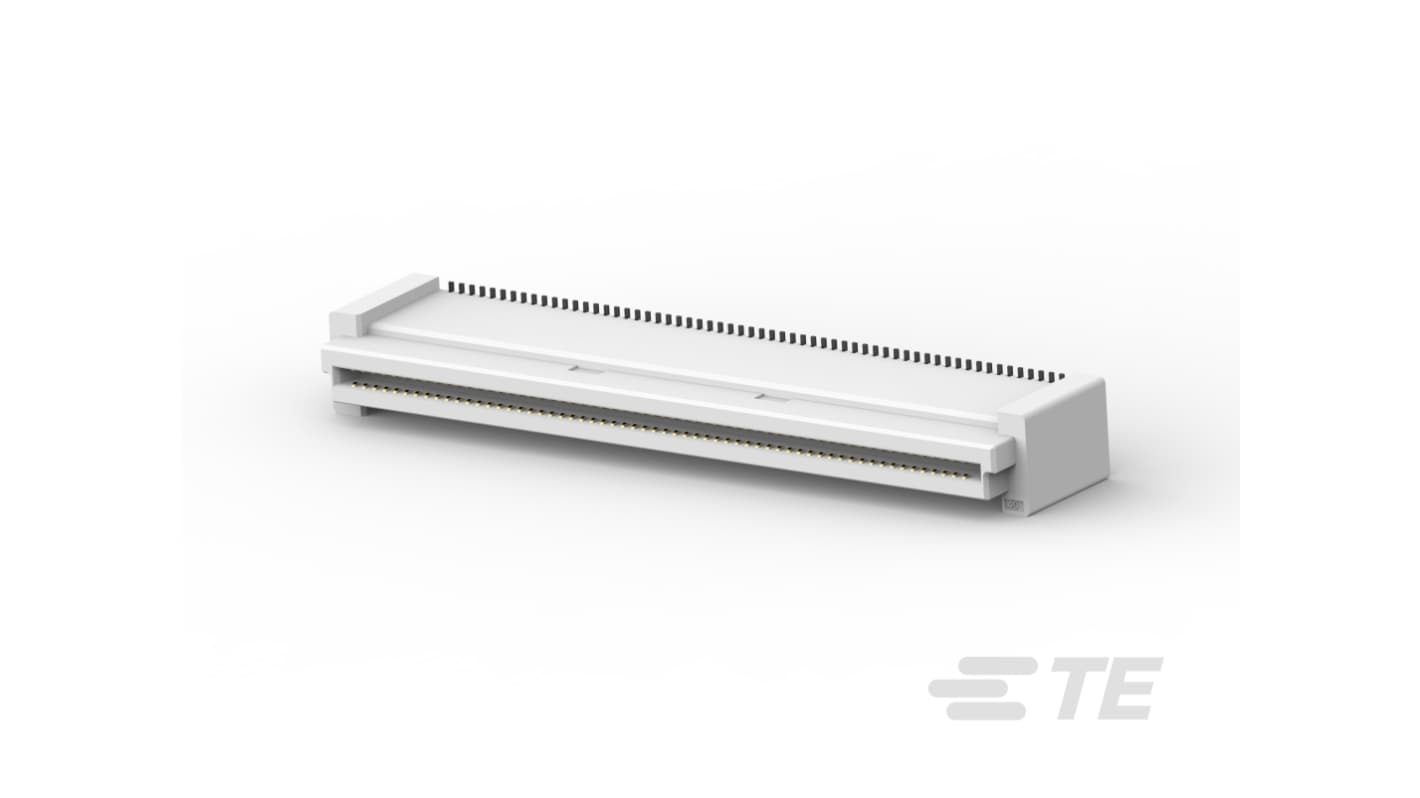

TE Connectivity 50846 Series Vertical Board PCB Socket, 120-Contact, 0.8 mm Pitch Surface Mount

View all PCB Sockets

Subtotal (1 reel of 200 units)*

£1,737.14

(exc. VAT)

£2,084.57

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£1,737.14£8.686

*price indicative

RS Stock No.:
482-248
Distrelec Article No.:
304-50-922
Mfr. Part No.:
5084616-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

120

Product Type

PCB Socket

Sub Type

PCB Receptacle

Pitch

0.8mm

Current

0.5A

Housing Material

Matt

Termination Type

Surface Mount

Mount Type

Board

Orientation

Vertical

Connector System

Board-to-Board

Stacking Height

16mm

Voltage

100 V

Series

50846

Row Pitch

0.8mm

Minimum Operating Temperature

-40°C

Contact Material

Copper Alloy

Contact Plating

Gold

Contact Gender

Female

Maximum Operating Temperature

125°C

Standards/Approvals

No

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Receptacle is designed for efficient and reliable board-to-board connections. Engineered with a vertical orientation, it supports up to 120 positions with a centreline pitch of 0.8 mm, ensuring excellent compactness and functionality. The surface-mount design features high-quality gold plating, providing superior conductivity and corrosion resistance. With its natural colour and free height configuration, this connector seamlessly integrates into various applications, maintaining optimal performance even under challenging conditions. The connector is compatible with pick and place assembly processes and meets industry standards for insulation resistance and dielectric strength, making it an ideal choice for a wide array of electronic devices. Designed for ease of assembly and maintenance, it signifies a blend of durability and innovation.

Supports high-speed signal transmission with minimal interference

Optimised for parallel stacking configurations to save space

Constructed with a robust steel material for enhanced durability

Offers operational temperature range suitable for diverse environments

Facilitates easy alignment and reliable retention during operation

Accommodates surface mount technology for simplified assembly processes

Compliant with EU RoHS and REACH regulations for environmentally conscious manufacturing

Features low halogen content for improved safety in electronic applications
