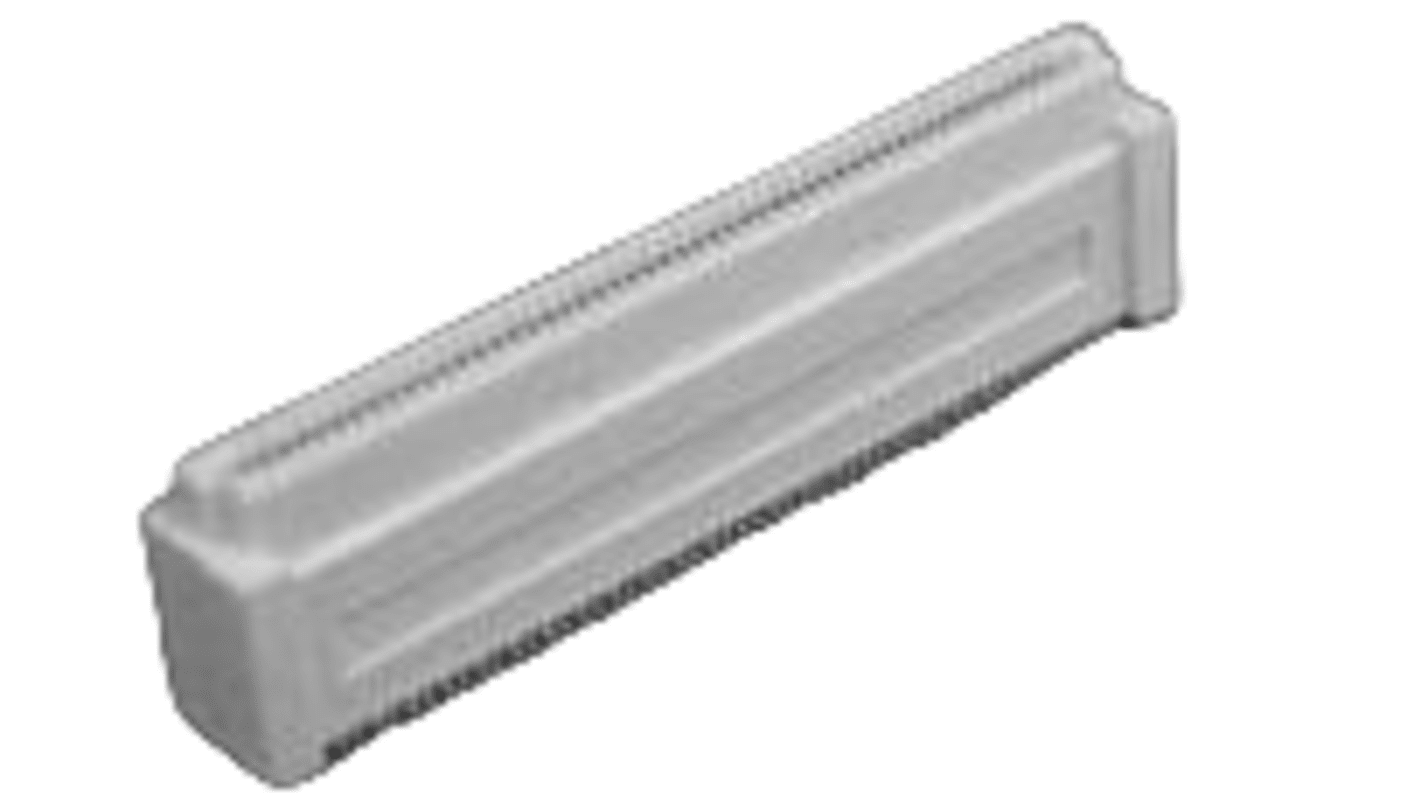

TE Connectivity 50846 Series Vertical Board PCB Header, 120 Contact(s), 0.8 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 469-781
- Mfr. Part No.:
- 5084618-5
- Brand:
- TE Connectivity
Subtotal (1 reel of 200 units)*
£1,694.50
(exc. VAT)
£2,033.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,694.50 | £8.473 |
*price indicative
- RS Stock No.:
- 469-781
- Mfr. Part No.:
- 5084618-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 50846 | |
| Pitch | 0.8mm | |
| Current | 0.5A | |
| Number of Contacts | 120 | |
| Housing Material | Matt | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 0.8mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 100 V | |
| Distrelec Product Id | 304-54-212 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 50846 | ||
Pitch 0.8mm | ||
Current 0.5A | ||
Number of Contacts 120 | ||
Housing Material Matt | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 0.8mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 100 V | ||
Distrelec Product Id 304-54-212 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount receptacle is designed for vertical board-to-board configurations, facilitating seamless connections in compact electronics. With its impressive 120 positions and an 0.8 mm centreline pitch, this connector optimises space and enhances signal integrity, making it an ideal choice for high-density applications. Crafted from durable materials with gold plating, it ensures reliable performance and longevity. Notably, this device can withstand operating temperatures between -40 and 125 °C, allowing it to perform reliably in demanding environments. The connector's unique free height design complements versatility in assembly processes, including pick and place techniques. Whether used in consumer electronics or industrial applications, this receptacle is engineered to support a wide array of connectivity needs, ultimately boosting efficiency and reliability across diverse circuit designs.
Optimised design for vertical applications
Support for high-density connections with 120 positions
Robust construction ensures long-lasting durability
Compatible with various assembly processes for enhanced efficiency
Excellent thermal stability across a wide temperature range
Gold plating for superior conductivity and corrosion resistance
Features a low halogen content for environmental compliance
Well-suited for both consumer and industrial electronic devices
