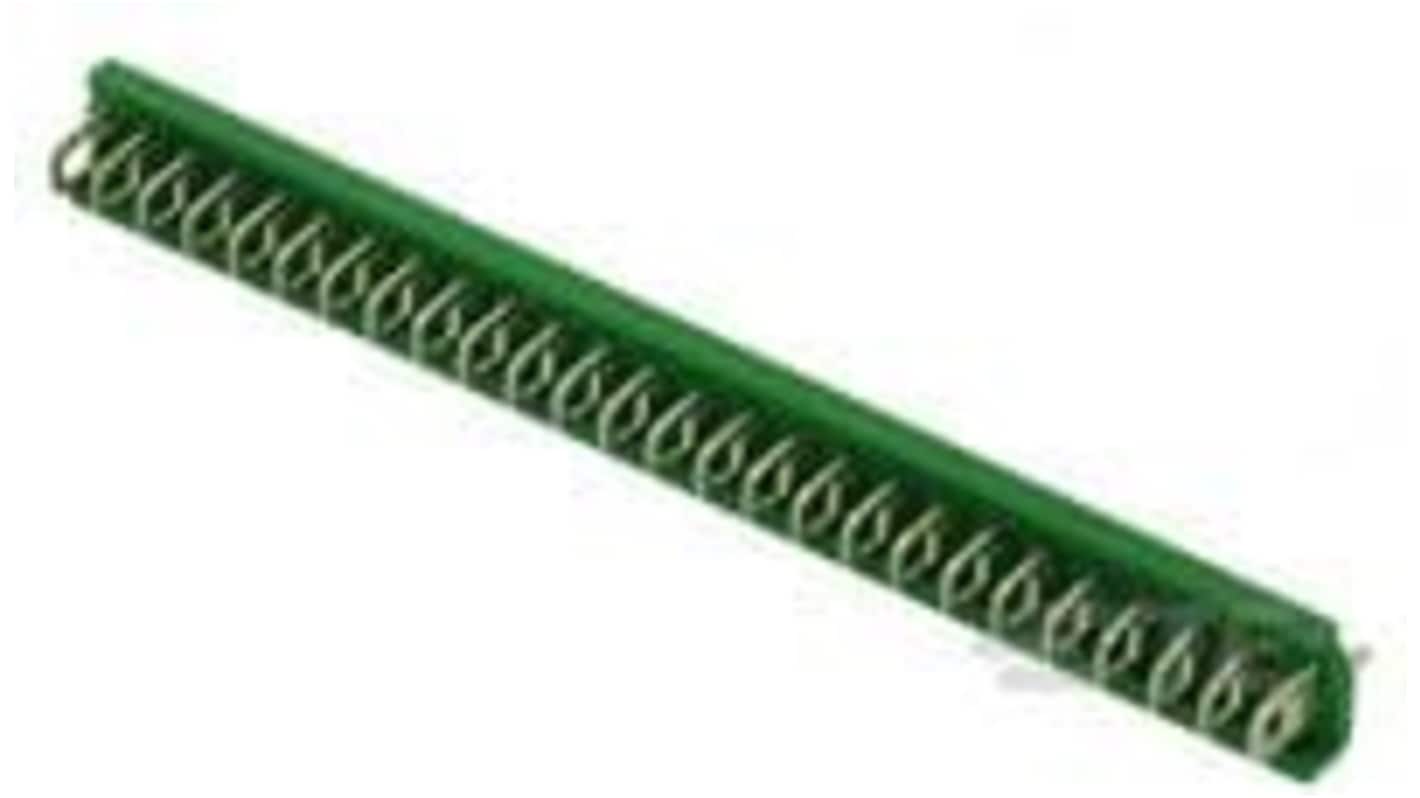

TE Connectivity Mini-Match Series Vertical PCB PCB Header, 11 Contact(s), 2.5 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 526-337
- Mfr. Part No.:
- 1-5164713-1
- Brand:
- TE Connectivity
Subtotal (1 box of 150 units)*
£232.90
(exc. VAT)
£279.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £232.90 | £1.553 |
*price indicative
- RS Stock No.:
- 526-337
- Mfr. Part No.:
- 1-5164713-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Mini-Match | |
| Product Type | PCB Header | |
| Current | 7A | |
| Pitch | 2.5mm | |
| Number of Contacts | 11 | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | PCB | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL 94 V-0 | |
| Distrelec Product Id | 304-53-502 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Mini-Match | ||
Product Type PCB Header | ||
Current 7A | ||
Pitch 2.5mm | ||
Number of Contacts 11 | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type PCB | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL 94 V-0 | ||
Distrelec Product Id 304-53-502 | ||
- COO (Country of Origin):
- IN
The TE Connectivity PCB Mount Header is engineered for a robust board-to-board connection, featuring an innovative vertical orientation that ensures space efficiency and reliability in your design. Ideal for both power and signal applications, its unshrouded design simplifies the mating process while enhancing accessibility. With an 11-position layout and a 2.5 mm centreline, this connector strikes the perfect balance between compactness and functionality. The durable housing material ensures that the connector withstands operational stresses, while the advanced plating technology enhances the contact reliability, vital for demanding environments.
Optimised for vertical mounting, saving valuable board space
Facilitates straightforward assembly with its unshrouded header design
Constructed to handle up to 7 A of current, ensuring robust performance
Compatible with through hole soldering for secure PCB attachment
Crafted from high-quality materials for enhanced durability
Designed to meet strict industry standards for reliable performance
Packaged in bulk quantities for cost-effective procurement
Compliant with major environmental regulations, ensuring safe usage
