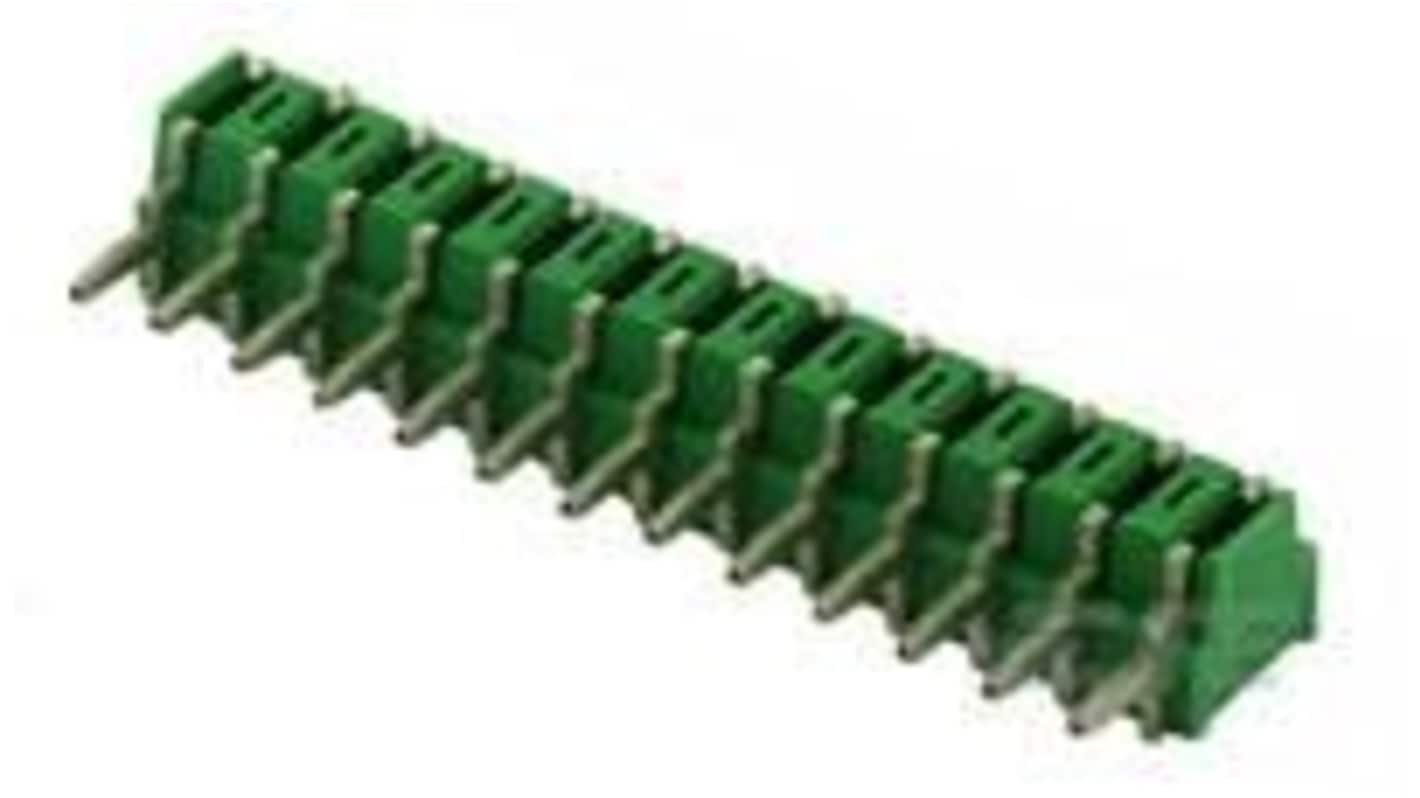

TE Connectivity Mini-Match Series Right Angle Board PCB Header, 11 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 box of 100 units)*

£191.60

(exc. VAT)

£229.92

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£191.60£1.916

*price indicative

RS Stock No.:
526-336
Mfr. Part No.:
1-5161800-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Mini-Match

Pitch

2.5mm

Current

7A

Number of Contacts

11

Housing Material

Thermoplastic

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Board-to-Board

Contact Material

Phosphor Bronze

Contact Plating

Tin Plated

Row Pitch

2.5mm

Termination Type

Solder

Contact Gender

Female

Tail Pin Length

3.2mm

Standards/Approvals

2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0

Voltage

354 V

Distrelec Product Id

304-53-500

COO (Country of Origin):
IN
The TE Connectivity mini-match FBTB connector is an exceptional solution for modern connectivity demands in compact electronic designs. Designed with precision, this PCB mount receptacle exemplifies a robust board-to-board connection, ensuring reliable performance in space-constrained applications. With its 2.5 mm pitch and 11 positions, this connector provides an efficient interface for electrical signals, catering perfectly to the needs of various industries. The thermoplastic housing enhances durability while allowing for easy alignment during assembly, making it a preferred choice among engineers seeking reliability and convenience. This connector is ideal for applications requiring signal transmission, boasting impressive characteristics like a rated operating voltage of 354 VAC and a maximum contact current rating of 7 A. It also meets stringent compliance standards, ensuring its suitability for international markets.

Compact 11-position design facilitates space-efficient PCB layouts

Supports a right-angle mounting orientation for flexible installation

Constructed with durable thermoplastic material for long-lasting reliability

Integrated polarizing tab ensures proper mating alignment during connections

PCB termination method via through-hole solder provides strong mechanical stability

Compliant with key industry standards, promoting global usability

Offers a maximum insulation resistance of 1 MΩ for enhanced safety

Seamless assembly process thanks to precise alignment features
