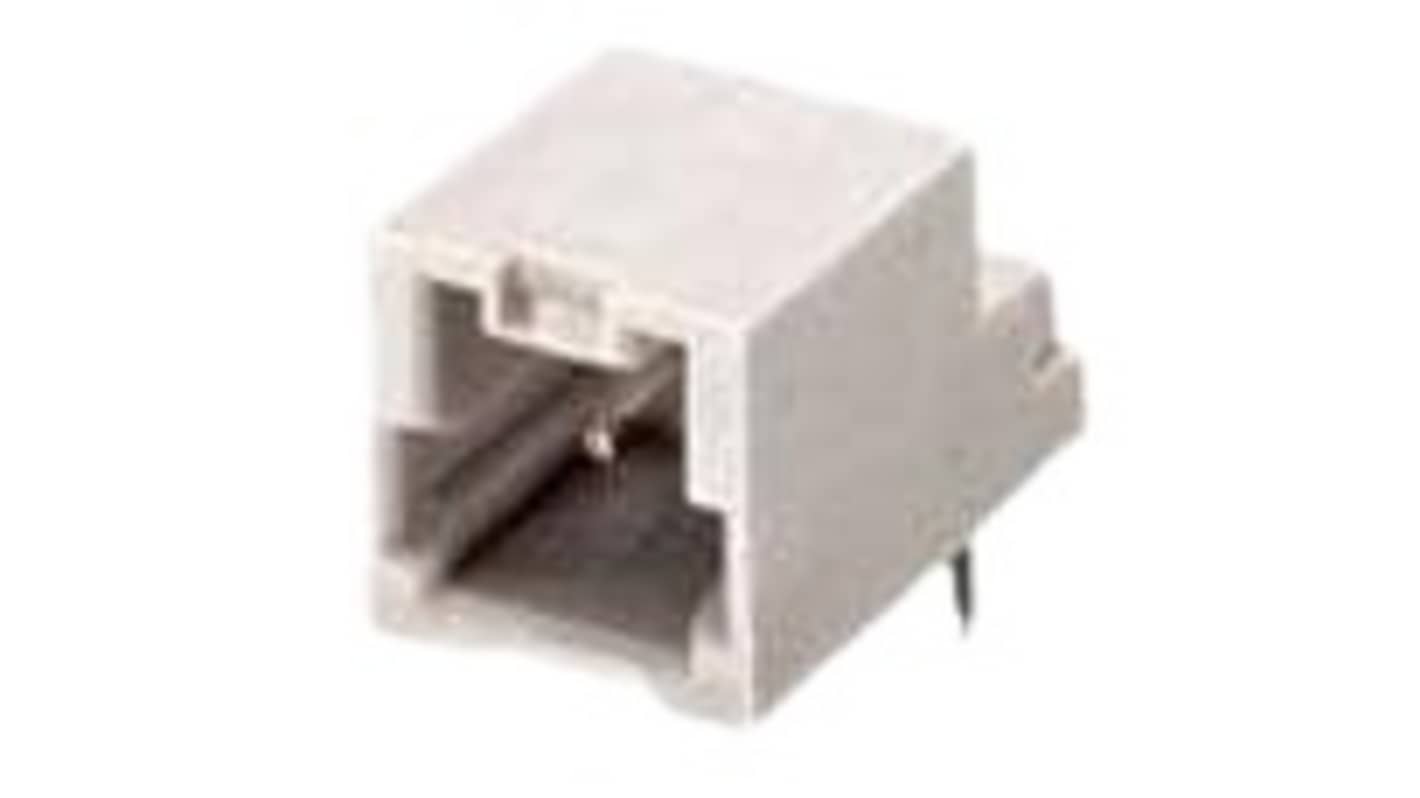

TE Connectivity AMP CT Series Right Angle Board Mount PCB Header, 11 Contact(s), 1.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-011
- Mfr. Part No.:
- 1-292206-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 250 units)*
£160.84
(exc. VAT)
£193.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £160.84 | £0.643 |
*price indicative
- RS Stock No.:
- 504-011
- Mfr. Part No.:
- 1-292206-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMP CT | |
Pitch | 1.5mm | |
Number of Contacts | 11 | |
Number of Rows | 1 | |
Body Orientation | Right Angle | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMP CT | ||
Pitch 1.5mm | ||
Number of Contacts 11 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header sets a new benchmark in connectivity solutions, designed specifically for wire-to-board applications. With a right-angle orientation and a fully shrouded header type, it ensures secure connections in compact spaces, making it ideal for diverse electronic assemblies. Boasting 11 positions and a 1.5 mm centreline, this connector is a robust choice for modern PCB designs, offering high reliability in performance. The durability and versatility of its nylon housing make it suitable for rigorous internal and external conditions. Furthermore, the header's tin-plated contacts enhance longevity, ensuring consistent signal integrity throughout its operational life. Additionally, its sleek design not only simplifies assembly processes but also optimises the overall aesthetic of your devices.
Engineered for durability with robust nylon housing
Features a secure fully shrouded design for added protection
Optimised for seamless integration into compact PCB layouts
Offers reliable connection through kinked legs for PCB retention
Facilitates easier assembly with pick and place cover feature
Ensures signal integrity with high-quality tin-plated contacts
Compatible with a wide range of applications, enhancing versatility
Designed to withstand various temperatures for reliable operation
Features a secure fully shrouded design for added protection
Optimised for seamless integration into compact PCB layouts
Offers reliable connection through kinked legs for PCB retention
Facilitates easier assembly with pick and place cover feature
Ensures signal integrity with high-quality tin-plated contacts
Compatible with a wide range of applications, enhancing versatility
Designed to withstand various temperatures for reliable operation
