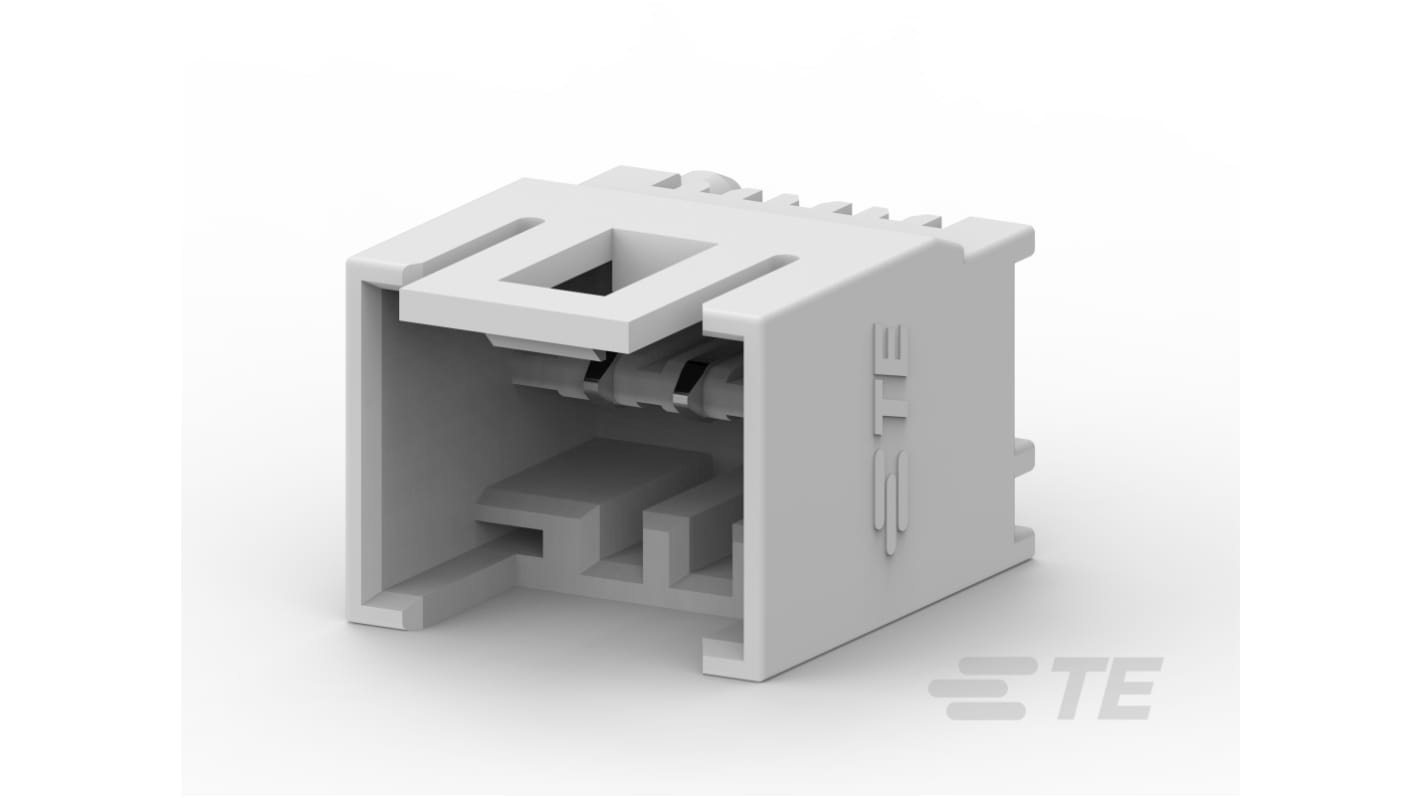

TE Connectivity AMPMODU Series Vertical Board PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 526-118
- Mfr. Part No.:
- 1-2232960-3
- Brand:
- TE Connectivity
Subtotal (1 box of 540 units)*
£180.18
(exc. VAT)
£216.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £180.18 | £0.334 |
*price indicative
- RS Stock No.:
- 526-118
- Mfr. Part No.:
- 1-2232960-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Current | 2A | |
| Pitch | 2.5mm | |
| Number of Contacts | 3 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Maximum Operating Temperature | 120°C | |
| Tail Pin Length | 2.9mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, VDE Certificate | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-53-445 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Current 2A | ||
Pitch 2.5mm | ||
Number of Contacts 3 | ||
Housing Material Polyamide 66 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Maximum Operating Temperature 120°C | ||
Tail Pin Length 2.9mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, VDE Certificate | ||
Voltage 50 V | ||
Distrelec Product Id 304-53-445 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header is designed for vertical wire-to-board applications, offering an efficient solution for interconnections in electronic devices. Fully shrouded and equipped with three positions, it facilitates secure connections, enhancing reliability in various applications. The component features a compact 2.5 mm centreline, making it ideal for space-constrained designs. Constructed with durable materials, it comes with a tin-plated finish and is suitable for through-hole soldering. This header excels in both electrical performance and mechanical stability, ensuring optimal functionality in demanding environments.
Offers a reliable connection for signal applications
Composed of robust PA 66 GF housing material for enhanced durability
Features a mating retention latch for secure connections
Designed for operational temperatures ranging from -40 to 120 °C
Incorporates inner alignment features to prevent misalignment during connection
Ensures compatibility with a range of related components and accessories
Provides easy installation with through-hole solder termination method
Sustainably manufactured to comply with EU RoHS regulations
