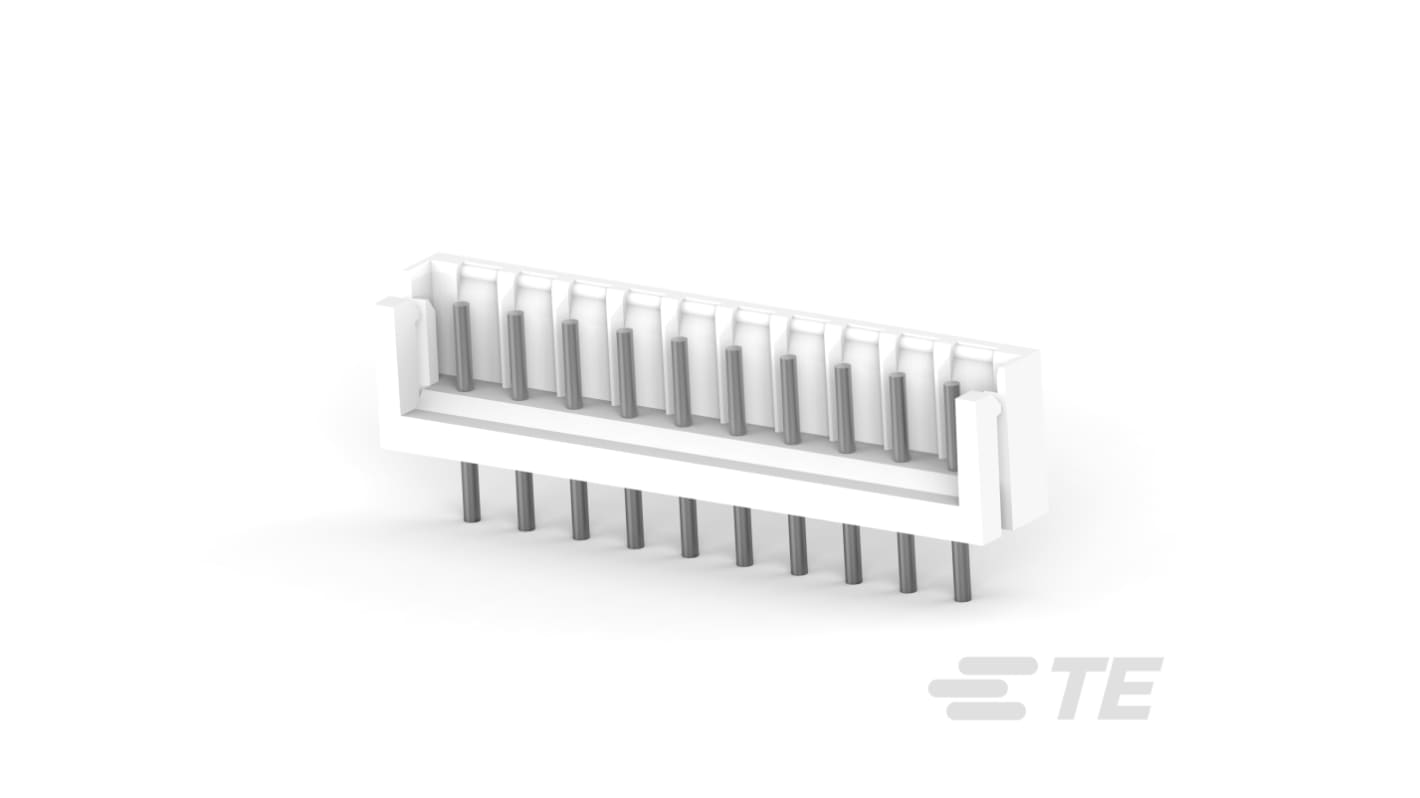

TE Connectivity MIS Series Vertical Board PCB Header, 10 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 508-326
- Mfr. Part No.:
- 1-177537-0
- Brand:
- TE Connectivity
Subtotal (1 bag of 800 units)*
£208.08
(exc. VAT)
£249.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £208.08 | £0.26 |
*price indicative
- RS Stock No.:
- 508-326
- Mfr. Part No.:
- 1-177537-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MIS | |
| Product Type | PCB Header | |
| Current | 4A | |
| Pitch | 2.5mm | |
| Number of Contacts | 10 | |
| Housing Material | 66 Nylon | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.17mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Mating Pin Length | 3.4mm | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MIS | ||
Product Type PCB Header | ||
Current 4A | ||
Pitch 2.5mm | ||
Number of Contacts 10 | ||
Housing Material 66 Nylon | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.17mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Mating Pin Length 3.4mm | ||
Voltage 250 V | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for reliable vertical wire-to-board connections, catering to demanding applications that require precision and quality. Featuring 10 positions on a compact 2.5 mm centerline, this partially shrouded header is expertly crafted with a natural finish. Its through-hole solder termination method ensures secure assembly onto printed circuit boards, making it ideal for industries that demand resilience and efficiency in their electronic connections. With operating voltage capabilities of up to 250 VAC, this connector boasts robustness in various operating environments. Its compatibility with a range of PCB contacts enhances its versatility, while the thoughtfully engineered housing material and dimensions guarantee ease of installation and integration within tight spaces. This product is an exemplary choice for any project requiring a dependable and efficient connection solution in the realm of signal applications.
Natural housing color enables seamless integration into various products
Tin-plated contact features enhance conductivity and longevity
Designed for wire-to-board applications, ensuring versatility in use
Polarized lock adds an extra layer of security during mating
Low halogen content reflects commitment to environmentally responsible engineering
Wave solder capability accommodates high-temperature soldering processes
Electrical and mechanical reliability optimizes performance in critical environments
Product compliance with multiple industry standards ensures quality assurance
