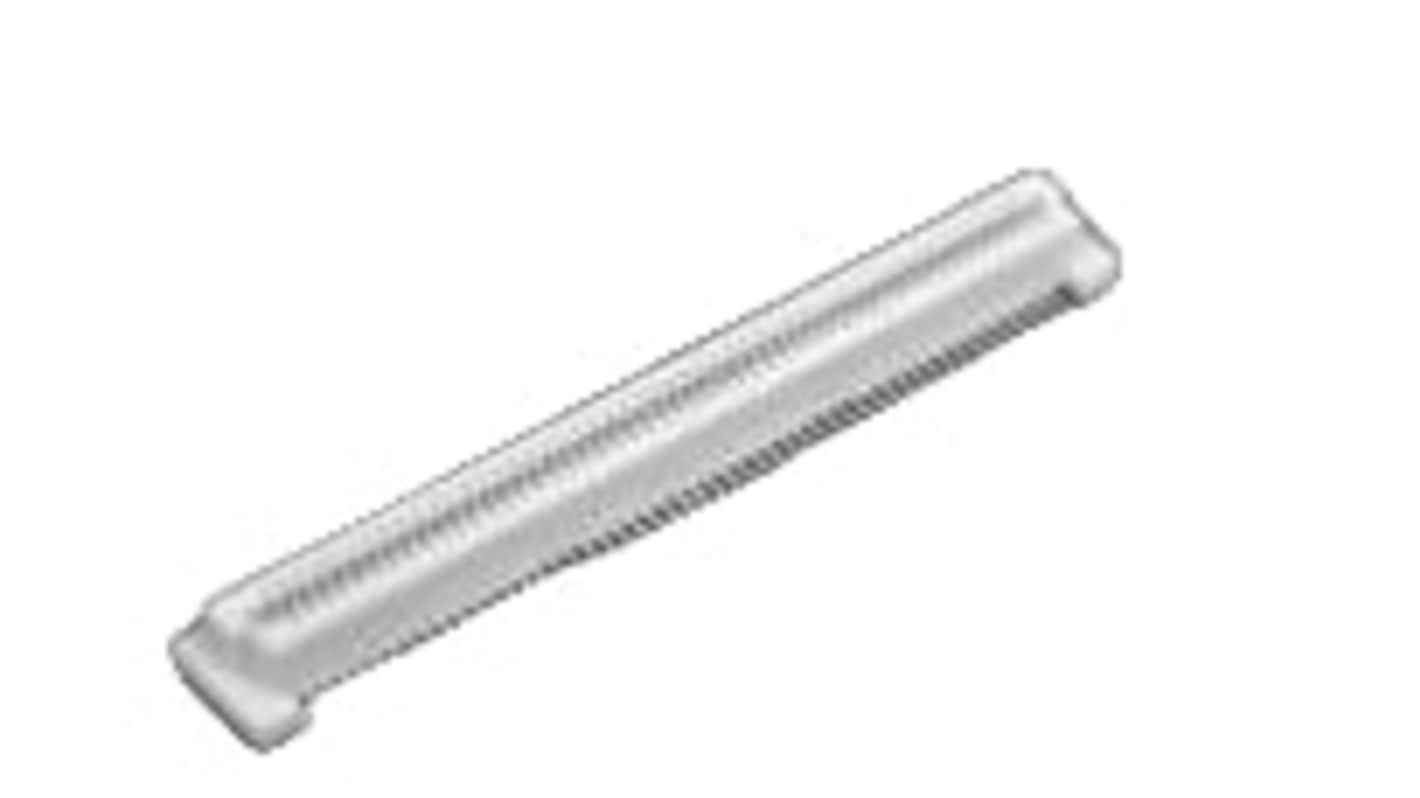

TE Connectivity Free Height Series Vertical Board PCB Header, 100 Contact(s), 0.8 mm Pitch
- RS Stock No.:
- 504-747
- Mfr. Part No.:
- 2-1735482-4
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 units)*
£1,116.63
(exc. VAT)
£1,339.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,116.63 | £11.166 |
*price indicative
- RS Stock No.:
- 504-747
- Mfr. Part No.:
- 2-1735482-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Free Height | |
| Pitch | 0.8mm | |
| Current | 0.5A | |
| Number of Contacts | 100 | |
| Housing Material | Matt | |
| Orientation | Vertical | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold, Tin | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Surface Mount | |
| Row Pitch | 0.8mm | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 100 V | |
| Distrelec Product Id | 304-53-770 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Free Height | ||
Pitch 0.8mm | ||
Current 0.5A | ||
Number of Contacts 100 | ||
Housing Material Matt | ||
Orientation Vertical | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold, Tin | ||
Minimum Operating Temperature -40°C | ||
Termination Type Surface Mount | ||
Row Pitch 0.8mm | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 100 V | ||
Distrelec Product Id 304-53-770 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is an innovative connector solution designed to facilitate seamless board-to-board connections with precision and reliability. With its vertical orientation and compact design, this product ensures optimal space utilisation on your circuit boards while supporting high-density applications. The advanced materials and construction methods provide excellent performance under varying environmental conditions, making it ideal for a wide range of electronic devices. This receptacle not only boasts an impressive number of positions but also offers compatibility with various board configurations, ensuring versatility in application. Its meticulous design prioritises user-friendliness, allowing for effortless integration and assembly, thus enhancing the overall efficiency of your manufacturing process.
Optimised for high-density applications, enhancing space management
Robust construction ensures durability and long-term reliability
Supports seamless board-to-board connectivity for streamlined functionality
Customization options available for specific application needs
Meets industry standards for quality and performance
Designed for efficient pick and place assembly, saving time during production
Natural colour blends well with different PCB layouts, maintaining aesthetic appeal
