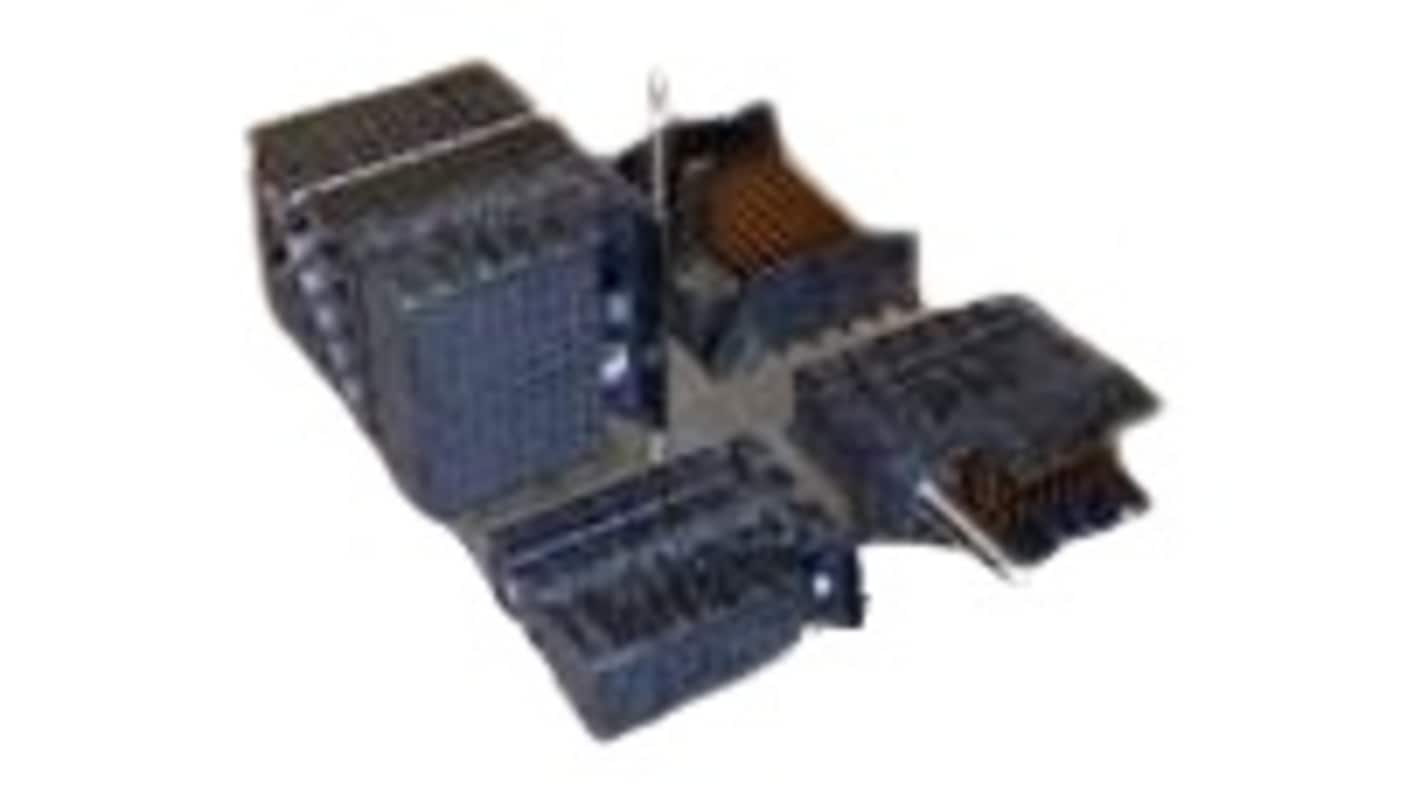

TE Connectivity IMPACT Series Vertical Board Mount PCB Header, 96 Contact(s), 1.9mm Pitch, 6 Row(s), Shrouded
- RS Stock No.:
- 504-670
- Mfr. Part No.:
- 2057743-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 20 units)*
£170.46
(exc. VAT)
£204.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £170.46 | £8.523 |
*price indicative
- RS Stock No.:
- 504-670
- Mfr. Part No.:
- 2057743-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | IMPACT | |
Pitch | 1.9mm | |
Number of Contacts | 96 | |
Number of Rows | 6 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series IMPACT | ||
Pitch 1.9mm | ||
Number of Contacts 96 | ||
Number of Rows 6 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity 96 Position High Speed Backplane Connector is engineered for optimal performance in data-intensive environments. This innovative product seamlessly integrates a 6-row configuration with 16 columns, ensuring robust connectivity for PCB mounting applications. Ideal for vertical alignment, it features a fully shrouded design that secures connection integrity and enhances durability. The advanced pin arrangement accommodates a maximum data rate of 25 Gb/s, making it suitable for high-frequency applications. With a reliable construction using durable materials, this connector excels in harsh operating conditions, offering both reliability and efficiency. Whether for industrial, telecommunications, or computing applications, it stands out as a dependable choice for reliable communication.
Six rows and 16 columns provide efficient space utilisation for complex designs
Fully shrouded design enhances protection against environmental factors
Accommodates differential signal arrangements for improved performance
Vertical PCB mount orientation simplifies installation and saves space
Constructed from high-quality LCP material for enhanced thermal stability
Guide pin type mating alignment ensures easy and secure connections
Operating temperature range supports diverse environmental conditions
Matte finish on PCB contact termination area enhances solderability
Packaging method includes both box and tube for versatile shipping options
Low halogen content aligns with environmental compliance standards
Fully shrouded design enhances protection against environmental factors
Accommodates differential signal arrangements for improved performance
Vertical PCB mount orientation simplifies installation and saves space
Constructed from high-quality LCP material for enhanced thermal stability
Guide pin type mating alignment ensures easy and secure connections
Operating temperature range supports diverse environmental conditions
Matte finish on PCB contact termination area enhances solderability
Packaging method includes both box and tube for versatile shipping options
Low halogen content aligns with environmental compliance standards
