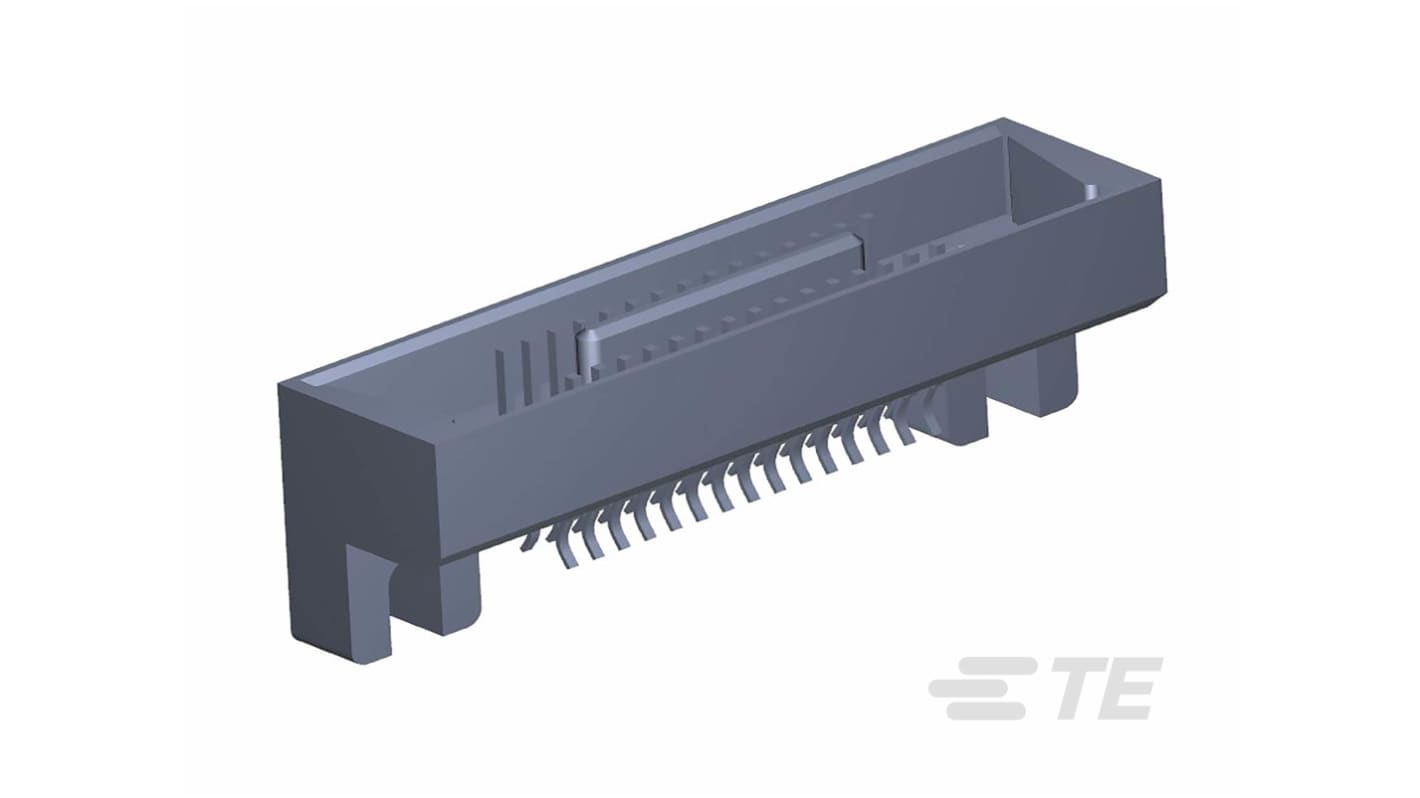

TE Connectivity 2-5318 Series Right Angle Board PCB Header, 100 Contact(s), 1.27 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 504-207
- Mfr. Part No.:
- 2-531803-0
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£224.21
(exc. VAT)
£269.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £224.21 |
*price indicative
- RS Stock No.:
- 504-207
- Mfr. Part No.:
- 2-531803-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 2-5318 | |
| Product Type | PCB Header | |
| Pitch | 1.27mm | |
| Current | 1.5A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 100 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 1.27mm | |
| Minimum Operating Temperature | 65°C | |
| Tail Pin Length | 3.81mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 60 V | |
| Distrelec Product Id | 303-30-377 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 2-5318 | ||
Product Type PCB Header | ||
Pitch 1.27mm | ||
Current 1.5A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 100 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 1.27mm | ||
Minimum Operating Temperature 65°C | ||
Tail Pin Length 3.81mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 60 V | ||
Distrelec Product Id 303-30-377 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is designed for reliable board-to-board connections, offering a robust solution for applications requiring a 100-position configuration. With its right-angle orientation, this component facilitates efficient space management on your circuit boards. Fully shrouded for added protection, it features high-quality gold plating on the contact mating area to ensure superior conductivity. Constructed from durable LCP (Liquid Crystal Polymer), this header is ideal for a wide range of environments, supporting an operating temperature range from -65 to 125 °C. The mounting ears enhance retention to the PCB, making this header an excellent choice for industries demanding both performance and durability.
Right angle orientation optimises space on your circuit board
Constructed from LCP for superior durability and performance
Fully shrouded design provides enhanced contact protection
Gold plating on contact mating area ensures excellent signal integrity
Mounting ears provide robust retention to the PCB
Meets UL 94V 0 flammability standards for added safety
Compatible with reflow soldering processes for efficient assembly
