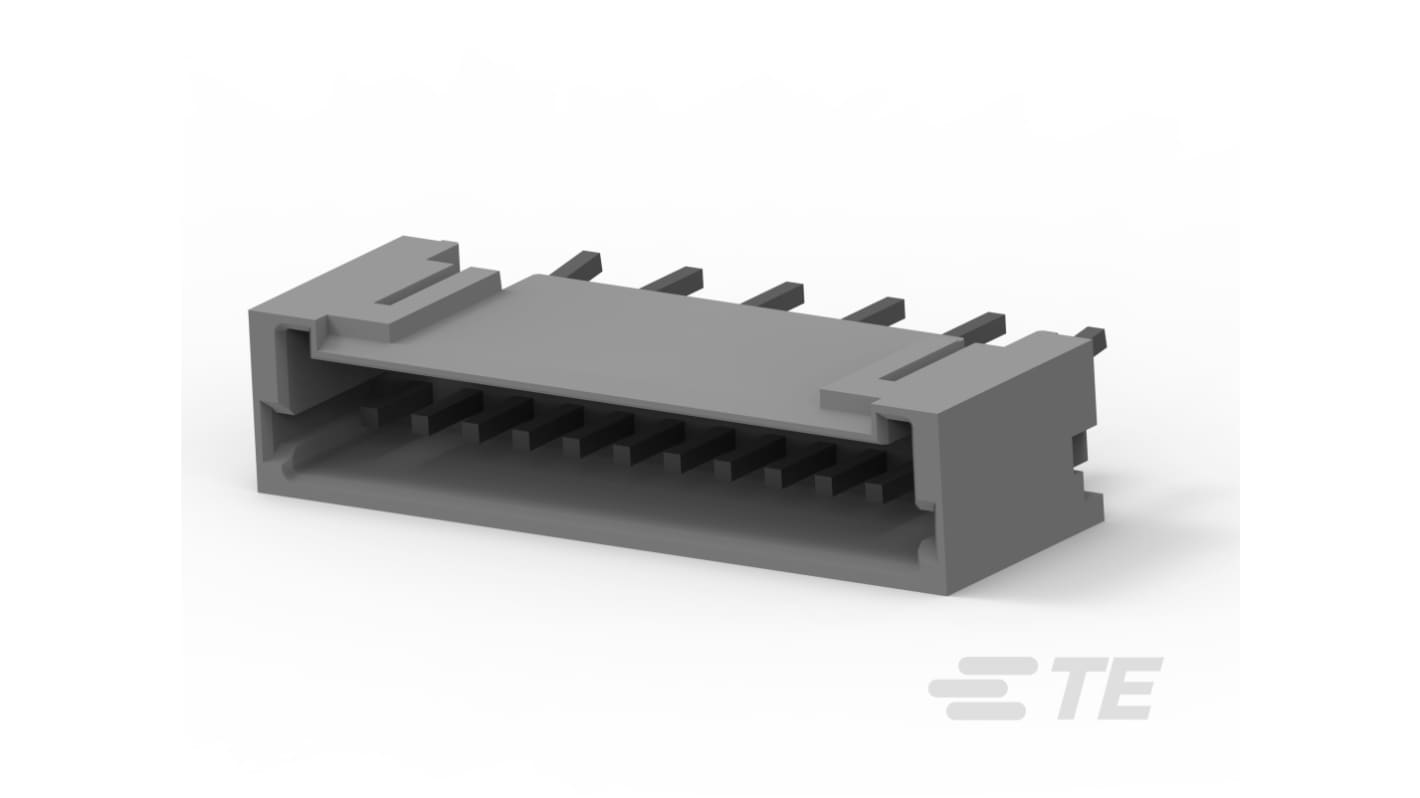

TE Connectivity AMP CT Series Vertical Board Mount PCB Header, 12 Contact(s), 1.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 503-201
- Mfr. Part No.:
- 1-292207-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 400 units)*
£186.31
(exc. VAT)
£223.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £186.31 | £0.466 |
*price indicative
- RS Stock No.:
- 503-201
- Mfr. Part No.:
- 1-292207-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMP CT | |
Pitch | 1.5mm | |
Number of Contacts | 12 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMP CT | ||
Pitch 1.5mm | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed for seamless wire-to-board connectivity in applications that demand reliability and performance. Featuring a vertical orientation and a shrouded header, this connector ensures robust and effective engagement. With 12 positions arranged in a staggered layout, it accommodates diverse circuit applications while maintaining superior electrical characteristics. The compact 1.5 mm centreline allows for efficient use of board space, making it ideal for modern electronic designs. Crafted from high-quality nylon housing and equipped with brass contacts, this connector is built to withstand harsh environments with an operating temperature range of -30 to 105 °C. Whether for industrial or consumer applications, this connector integrates effortlessly into your PCB designs, ensuring long-lasting connections and enhanced performance.
Fully shrouded header design ensures secure connections
Staggered contact layout facilitates optimal mating alignment
Natural colour housing blends seamlessly with various PCB designs
Wave solder capability enhances assembly efficiency
Brass contact material provides excellent conductivity
Matte finish on the mating area minimises wear and tear
Kinked legs provide additional PCB mount retention
Packaging quantity of 700 streamlines inventory management
Staggered contact layout facilitates optimal mating alignment
Natural colour housing blends seamlessly with various PCB designs
Wave solder capability enhances assembly efficiency
Brass contact material provides excellent conductivity
Matte finish on the mating area minimises wear and tear
Kinked legs provide additional PCB mount retention
Packaging quantity of 700 streamlines inventory management
