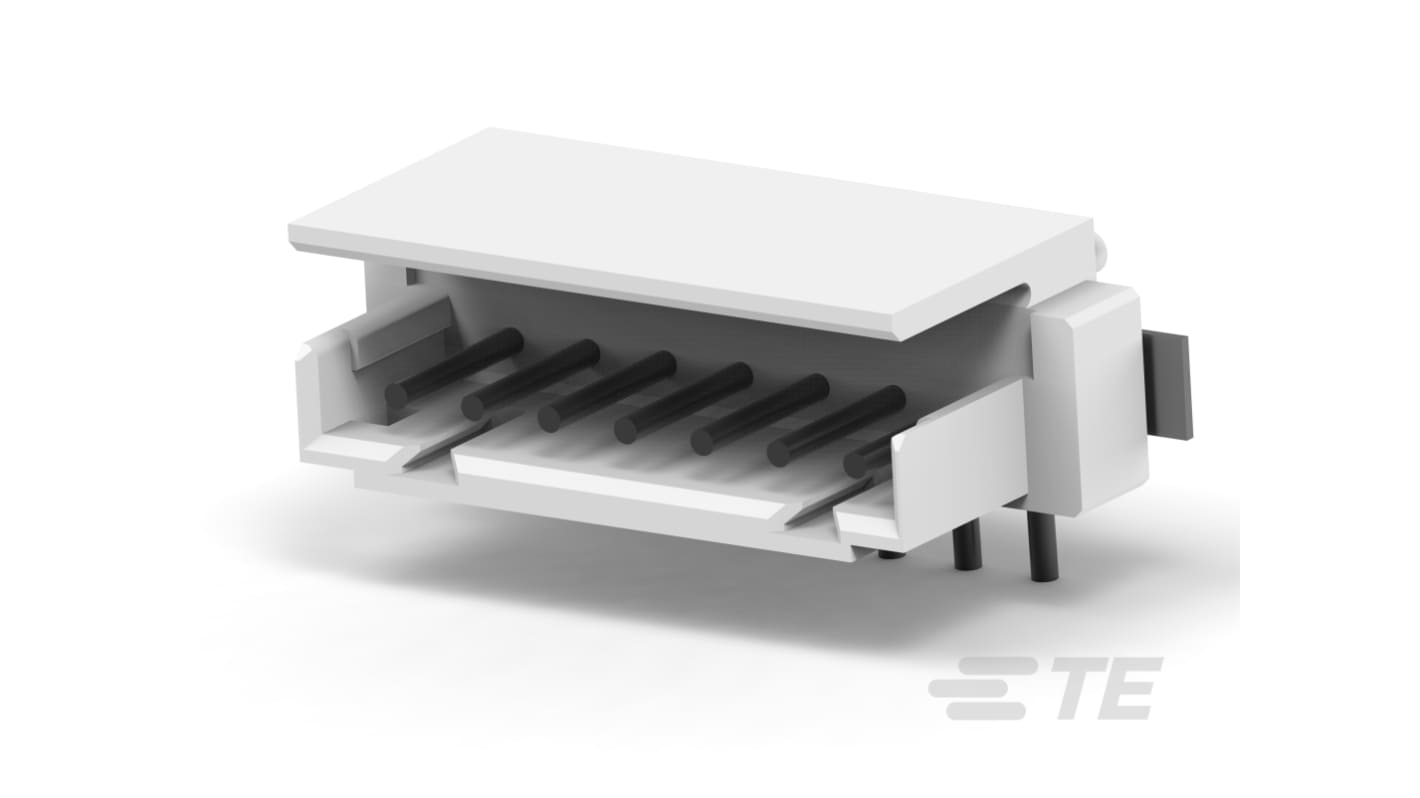

TE Connectivity AMP CT Series Vertical Board PCB Header, 7 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 482-041
- Mfr. Part No.:
- 292174-7
- Brand:
- TE Connectivity
Subtotal (1 reel of 700 units)*
£659.06
(exc. VAT)
£790.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £659.06 | £0.942 |
*price indicative
- RS Stock No.:
- 482-041
- Mfr. Part No.:
- 292174-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMP CT | |
| Pitch | 2mm | |
| Current | 4A | |
| Housing Material | Polyamide 6T | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Mating Pin Length | 4.5mm | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-978 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMP CT | ||
Pitch 2mm | ||
Current 4A | ||
Housing Material Polyamide 6T | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Mating Pin Length 4.5mm | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-978 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is specifically designed for vertical wire-to-board applications, offering a reliable connection solution with a compact structure. Featuring a 7-position configuration on a 2 mm [.079 in] centerline, the connector is ideal for power and signal transmission. Its partially shrouded design coupled with a tin plating enhances conductivity while ensuring durability in various operating environments. Capable of withstanding a temperature range of -40 to 105 °C, this robust component supports effortless installation with its surface mount termination method. The connector also facilitates easy alignment and retention, making it a perfect fit for diverse PCB layouts. Its innovative design and excellent mechanical characteristics promise seamless integration into your electronic devices, offering peace of mind for engineers and manufacturers alike.
Offers a sturdy and long-lasting connection for extensive applications
Designed with a compact footprint to optimize space on PCBs
Partially shrouded configuration enhances safety during operation
Supports a wide operating voltage, ensuring versatility in application
Includes board lock features for enhanced stability during use
