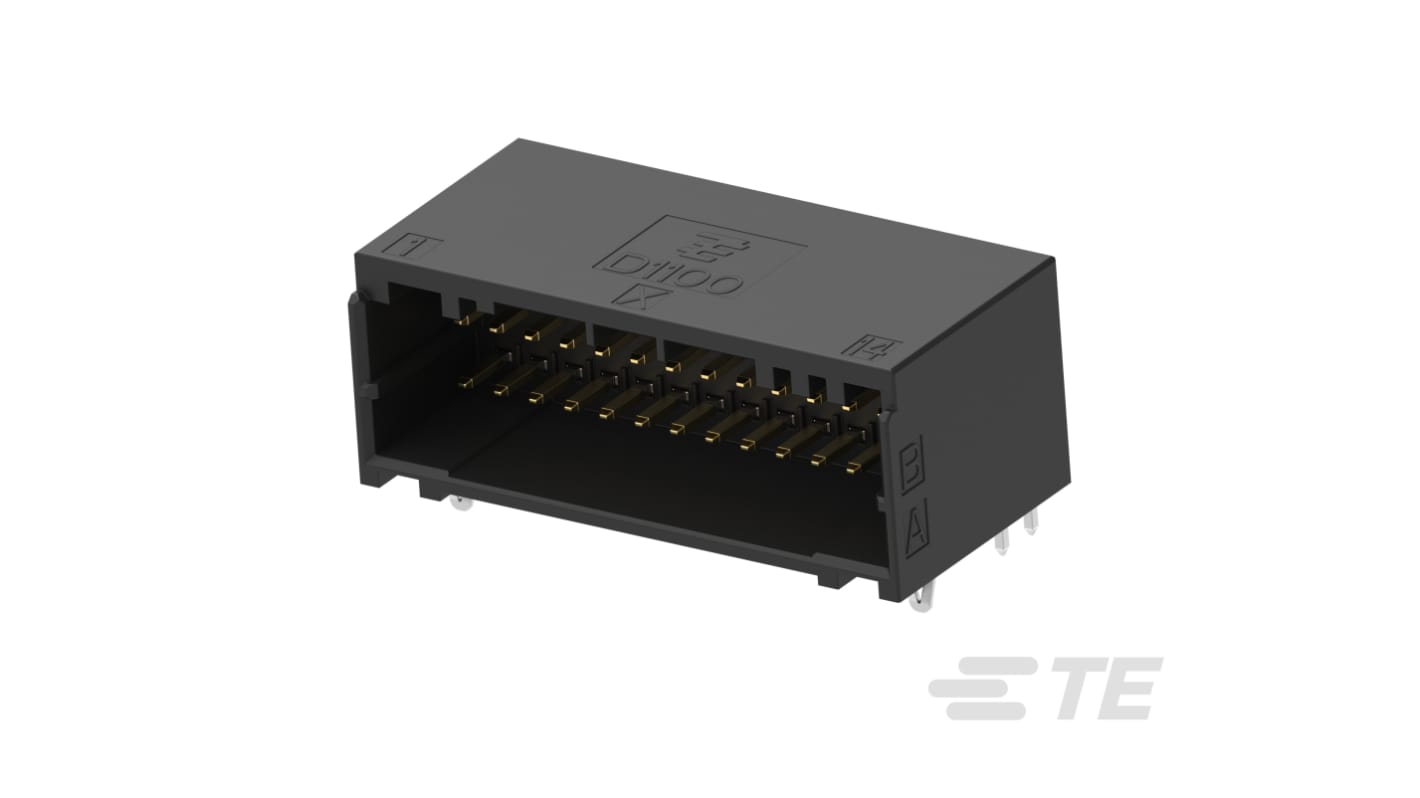

TE Connectivity Dynamic 1000 Series Horizontal Board PCB Header, 28 Contact(s), 2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 480-039
- Mfr. Part No.:
- 1-1939638-4
- Brand:
- TE Connectivity
Subtotal (1 tube of 15 units)*
£185.41
(exc. VAT)
£222.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £185.41 | £12.361 |
*price indicative
- RS Stock No.:
- 480-039
- Mfr. Part No.:
- 1-1939638-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Dynamic 1000 | |
| Product Type | PCB Header | |
| Pitch | 2mm | |
| Current | 3A | |
| Number of Contacts | 28 | |
| Housing Material | Fibreglass Polyester | |
| Number of Rows | 2 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold, Tin | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Distrelec Product Id | 304-51-389 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Dynamic 1000 | ||
Product Type PCB Header | ||
Pitch 2mm | ||
Current 3A | ||
Number of Contacts 28 | ||
Housing Material Fibreglass Polyester | ||
Number of Rows 2 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold, Tin | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 2mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Distrelec Product Id 304-51-389 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header from the dynamic 1000 series is designed for seamless wire-to-board connections, accommodating 28 positions with a compact 2 mm centerline. This fully shrouded connector ensures reliable connectivity while maintaining a sleek profile, making it ideal for diverse electronic applications. Constructed from robust materials, it withstands demanding conditions and supports efficient signal and power transmission. Its horizontal mounting orientation provides flexibility in various PCB layouts, ensuring compatibility with a range of devices. This connector’s gold-plated contacts deliver superior conductivity, enhancing performance and longevity. With specifications that meet industry standards, this connector is an exceptional choice for engineers seeking quality and reliability.
Accommodates a wide range of wire gauges for flexible applications
Utilizes durable polyester housing, ensuring long-term reliability
Designed for simple PCB through-hole soldering, reducing installation time
Features a keyed mating alignment for enhanced connection security
Boasts an operating temperature range that supports diverse environments
Compatible with various insertion and extraction tools, simplifying assembly
Available in packaging units that facilitate easy inventory management
