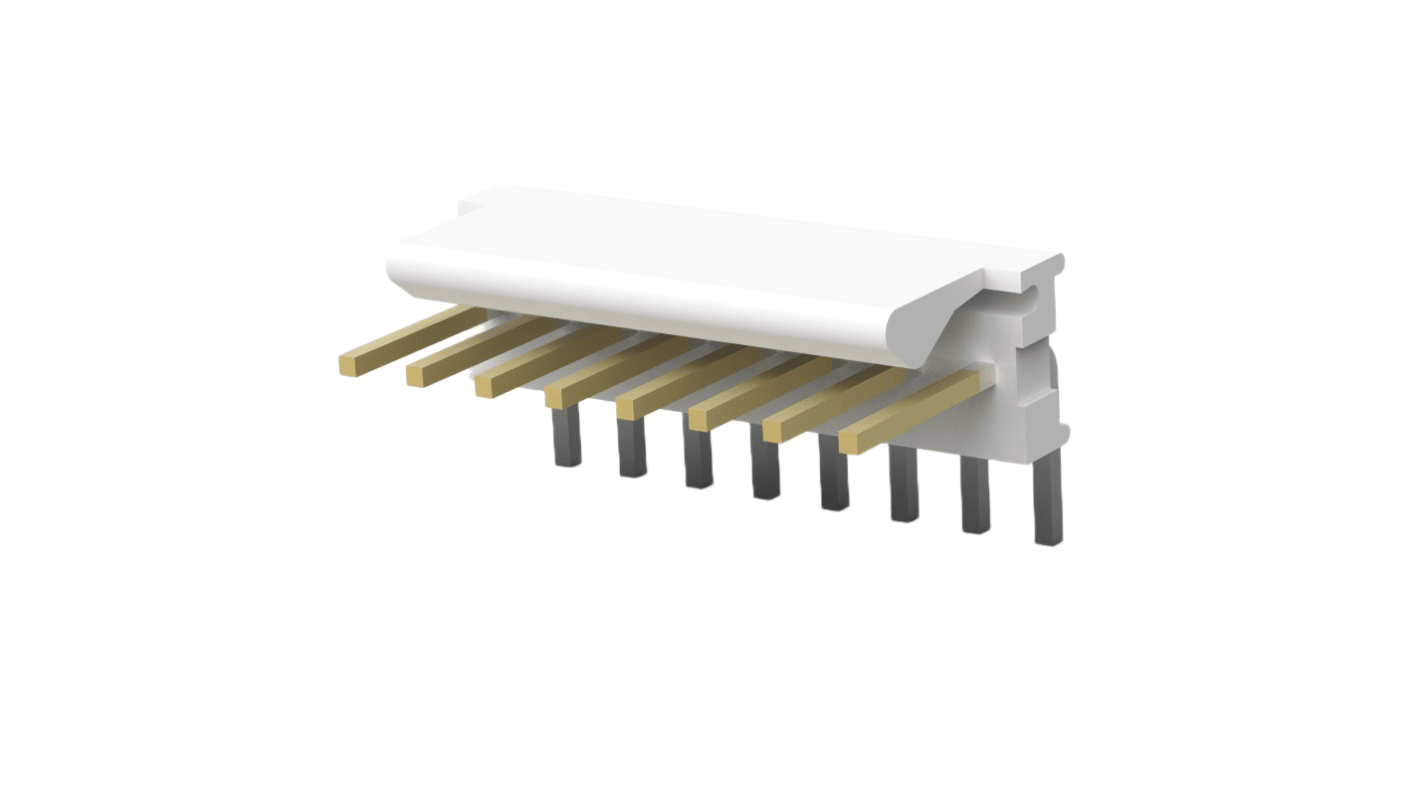

TE Connectivity MTA-100 Series Right Angle Board PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 479-912
- Mfr. Part No.:
- 3-641216-8
- Brand:
- TE Connectivity
Subtotal (1 pack of 100 units)*
£171.78
(exc. VAT)
£206.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £171.78 | £1.718 |
*price indicative
- RS Stock No.:
- 479-912
- Mfr. Part No.:
- 3-641216-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MTA-100 | |
| Product Type | PCB Header | |
| Current | 5A | |
| Pitch | 2.54mm | |
| Housing Material | Fibreglass Polyester | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.56mm | |
| Mating Pin Length | 7.49mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-675 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MTA-100 | ||
Product Type PCB Header | ||
Current 5A | ||
Pitch 2.54mm | ||
Housing Material Fibreglass Polyester | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.56mm | ||
Mating Pin Length 7.49mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-675 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header offers a sophisticated solution for wire-to-board connectivity, designed specifically for applications requiring reliable performance and durability. With a right-angle orientation and a compact design featuring eight positions, this connector is perfectly suited for space-constrained environments. Engineered from high-quality polyester material, it ensures excellent mechanical stability while safeguarding against environmental challenges. Its partially shrouded header type allows for easy mating and un-mating processes, facilitating quick assembly and maintenance. With operating voltage capabilities of up to 250 VAC, it is ideal for a variety of signal circuit applications. This header not only meets the high standards of modern electronics but also integrates efficiently within established systems, making it a sensible choice for both new designs and existing applications.
Right-angle orientation reduces space requirements on PCB
Partially shrouded design enhances mating accuracy
High-quality polyester housing material provides durability
Supports an operating voltage of up to 250 VAC for versatile use
Designed for through-hole solder termination for secure connections
Compact size with eight positions optimises layout efficiency
Friction lock mating retention ensures a stable connection
Mate with a variety of compatible parts for expanded options
Temperature range from -55 to 105 °C allows for diverse applications
