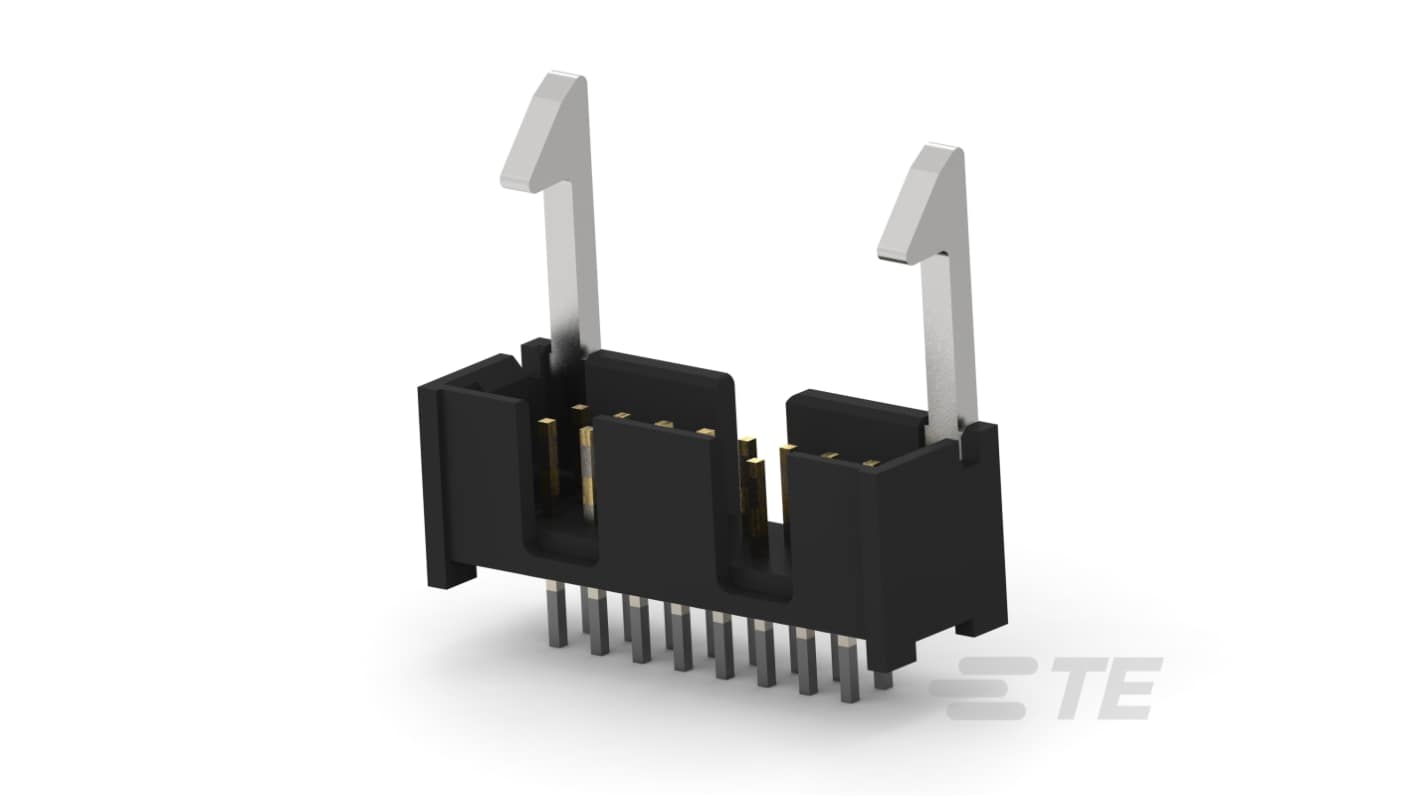

TE Connectivity AMP-LATCH Series Vertical Board PCB Connector, 16 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tray of 40 units)*

£179.72

(exc. VAT)

£215.66

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£179.72£4.493

*price indicative

RS Stock No.:
478-975
Mfr. Part No.:
104128-3
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Connector

Series

AMP-LATCH

Current

1A

Pitch

2.54mm

Housing Material

Nylon Fibreglass

Number of Contacts

16

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Board-to-Board

Contact Plating

Gold Flash over Nickel

Contact Material

Phosphor Bronze

Termination Type

Solder

Row Pitch

2.54mm

Minimum Operating Temperature

65°C

Maximum Operating Temperature

105°C

Tail Pin Length

3.05mm

Standards/Approvals

UL 94 V-0

Distrelec Product Id

304-48-507

Non Compliant

COO (Country of Origin):
CN
The TE Connectivity board-to-board connector is designed to provide reliable and efficient connections in applications requiring superior performance. With its low profile and dual-row configuration, it accommodates 16 positions on a 2.54 mm centerline, facilitating seamless integration into various electronic systems. This component excels in through-hole soldering applications, ensuring secure attachment to printed circuit boards. Ideal for connecting ribbon cables, this connector features a robust design that supports a wide operating temperature range, making it suitable for diverse industrial environments. Its practical design promotes easy alignment and enhances mating reliability, ensuring that your connections withstand daily wear and tear while delivering optimal electrical performance. Whether you're developing consumer electronics or advanced industrial systems, this connector is poised to meet the rigorous demands of your projects.

The connector is designed for board-to-board applications, promoting efficient use of space

It features a low-profile design for enhanced adaptability in compact configurations

With a vertical PCB mount orientation, it simplifies integration into existing layouts

The nickel-plated contacts ensure robust conductivity and increased durability

The connector's body is constructed from high-quality nylon, providing excellent resilience

Mating alignment features enhance the ease of connection during assembly

It includes an ejection latch for secure retention during operation

The product complies with various industry standards to ensure reliability
