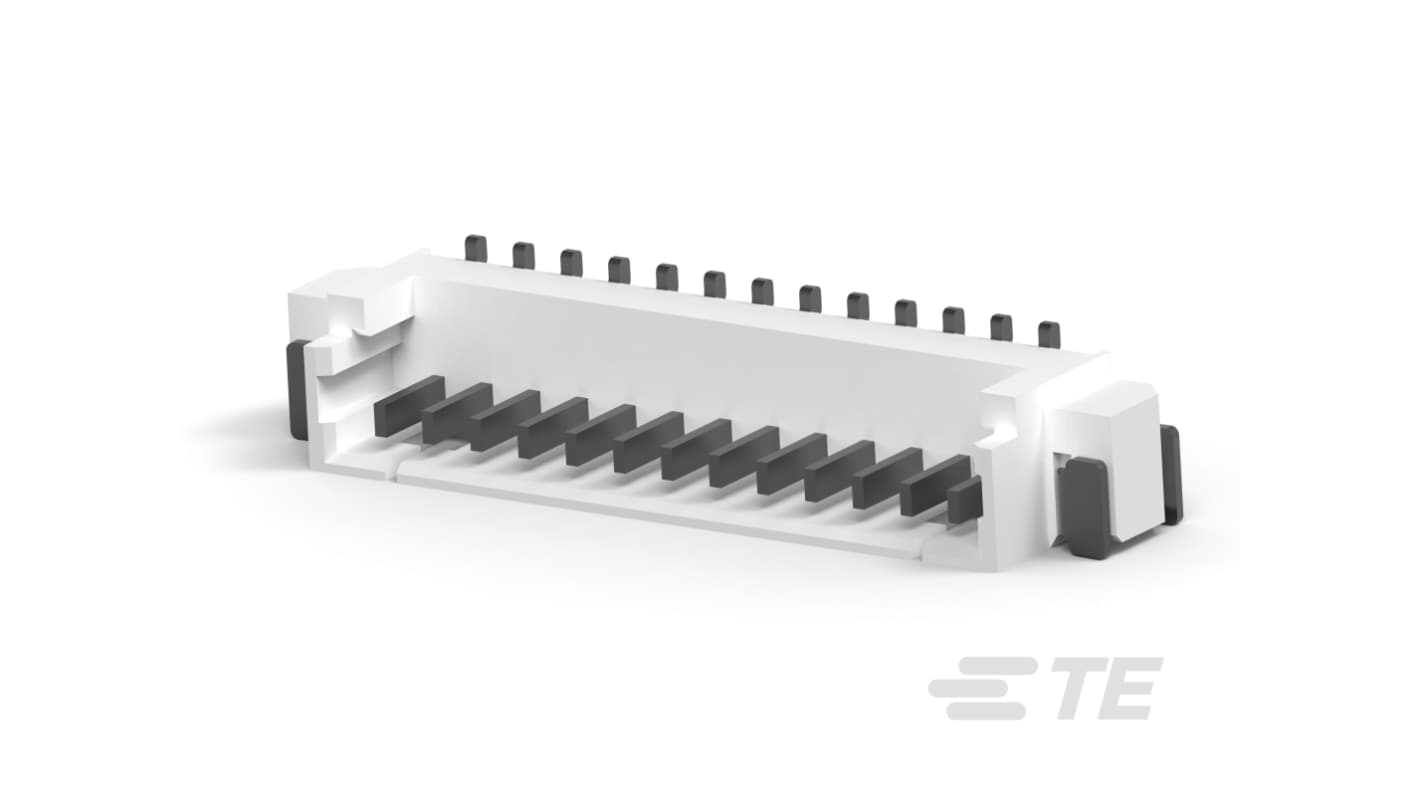

TE Connectivity AMP HPI Series Vertical Board PCB Header, 13 Contact(s), 1.25 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 474-281
- Mfr. Part No.:
- 1-1734260-3
- Brand:
- TE Connectivity
Subtotal (1 reel of 1000 units)*
£2,857.62
(exc. VAT)
£3,429.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,857.62 | £2.858 |
*price indicative
- RS Stock No.:
- 474-281
- Mfr. Part No.:
- 1-1734260-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMP HPI | |
| Product Type | PCB Header | |
| Pitch | 1.25mm | |
| Current | 3A | |
| Number of Contacts | 13 | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Nickel | |
| Row Pitch | 1.25mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 260°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-389 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMP HPI | ||
Product Type PCB Header | ||
Pitch 1.25mm | ||
Current 3A | ||
Number of Contacts 13 | ||
Housing Material High Temperature Thermoplastic | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Nickel | ||
Row Pitch 1.25mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 260°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-389 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header integrates advanced design with reliable performance, making it an ideal solution for wire-to-board connections in compact spaces. Crafted for efficiency, this connector accommodates 13 positions and features a partially shrouded header type. Designed with high-temperature thermoplastic housing, it ensures durability and resilience in various applications. The vertical orientation enhances space-saving designs, while the advanced contact and termination features promote dependable connectivity. Tailored for signal circuit applications, this connector complies with industry standards, maintaining the highest levels of safety and compliance.
Compact design optimises board space while ensuring connectivity
Fully loaded contact load condition supports rigorous use cases
High temperature thermoplastic housing enhances thermal resistance
PCB mount retention ensures stability during installation
Reflow solder capable to support modern manufacturing processes
UL 94V 0 rated for flammability compliance ensuring safety
