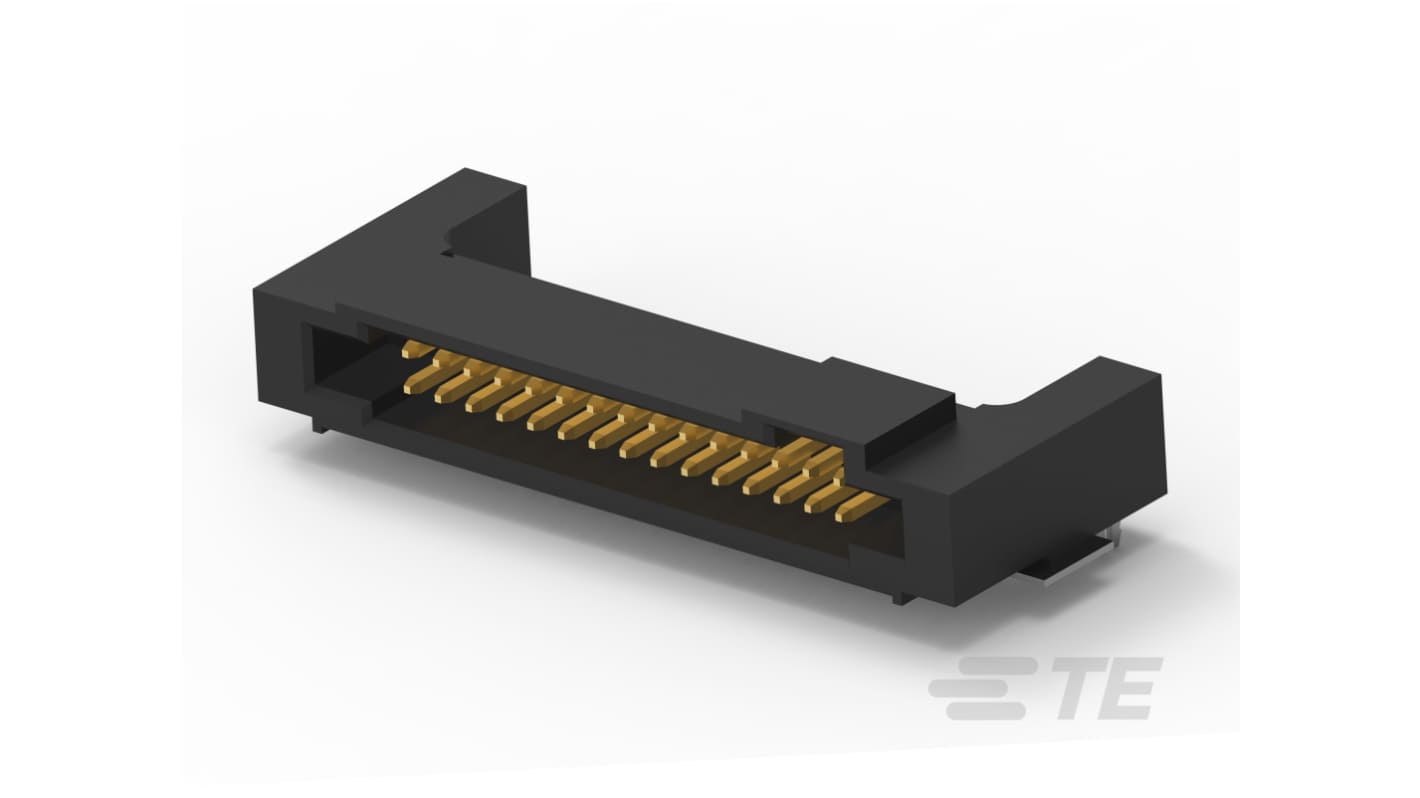

TE Connectivity AMPMODU 50/50 Grid Series Right Angle Surface PCB Header, 90 Contact(s), 1.27 mm Pitch, 2 Row(s),
- RS Stock No.:
- 474-242
- Mfr. Part No.:
- 104894-9
- Brand:
- TE Connectivity
Subtotal (1 tube of 20 units)*
£201.18
(exc. VAT)
£241.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £201.18 | £10.059 |
*price indicative
- RS Stock No.:
- 474-242
- Mfr. Part No.:
- 104894-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU 50/50 Grid | |
| Product Type | PCB Header | |
| Pitch | 1.27mm | |
| Current | 0.5A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 90 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 1.27mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-53-651 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU 50/50 Grid | ||
Product Type PCB Header | ||
Pitch 1.27mm | ||
Current 0.5A | ||
Housing Material Thermoplastic | ||
Number of Contacts 90 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 1.27mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Voltage 30 V | ||
Distrelec Product Id 304-53-651 | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header, a remarkable innovation designed for right angle board-to-board connectivity, excels in modern electronic applications. This fully shrouded connector boasts 90 positions and a compact 1.27 mm centerline, making it ideal for space-constrained designs. Engineered with precision, the product delivers exceptional reliability and performance, ensuring secure connections in a variety of operating conditions. The combination of gold plating and a sturdy thermoplastic housing enhances durability while also providing optimal electrical conductivity. Its advanced design is well-suited for high-density PCB layouts, enabling seamless integration in demanding environments. Ideal for both professional engineers and hobbyists, this connector represents a perfect blend of function and sophistication, tailored for high-performance systems.
Right angle orientation optimizes PCB space utilization
Fully shrouded design enhances safety and prevents accidental contact
Surface mount technology simplifies assembly processes
High contact current rating ensures reliable power delivery
Low halogen material content supports environmentally conscious designs
Mechanical alignment features guarantee accurate mating
Standard connector profile accommodates diverse applications
