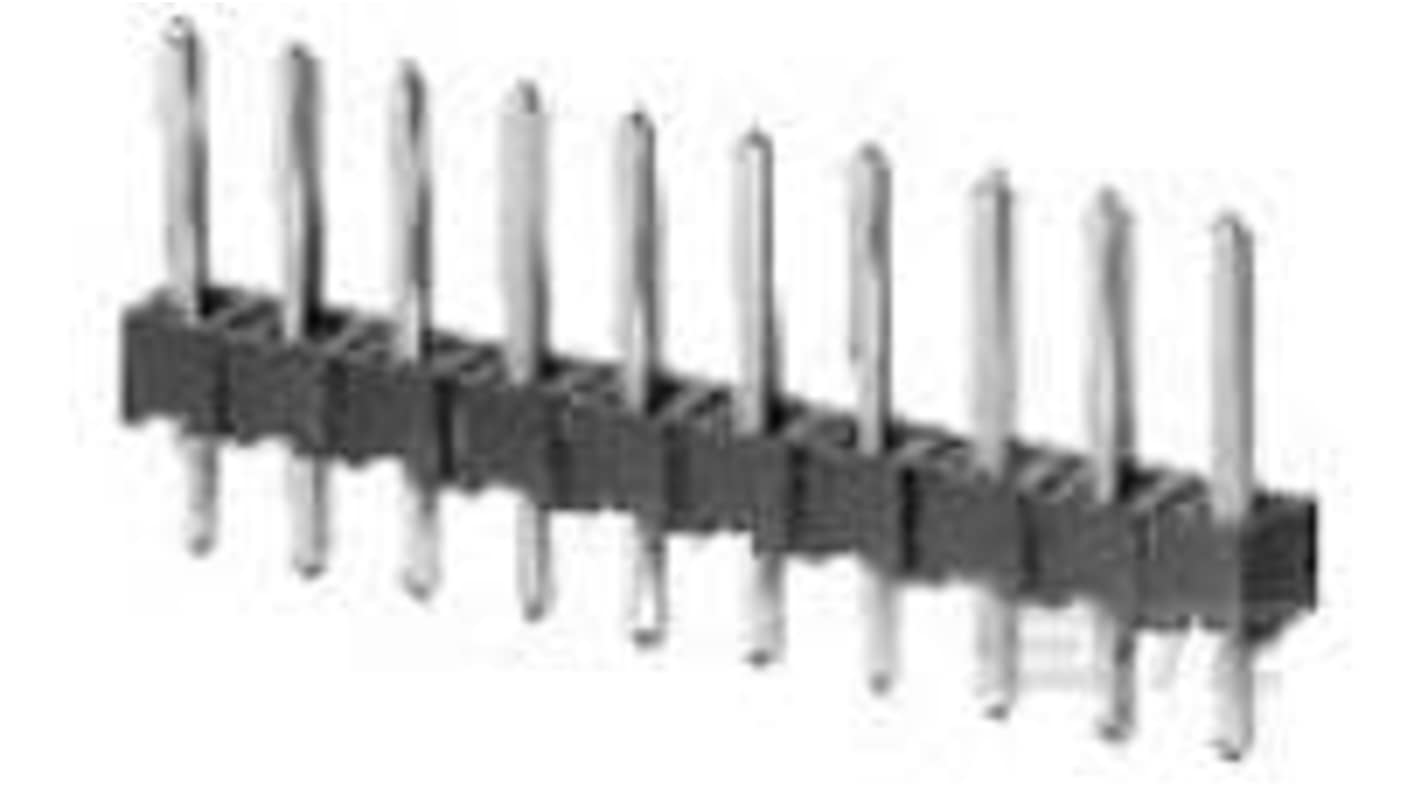

TE Connectivity AMPMODU Series Vertical Board PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- RS Stock No.:
- 473-605
- Distrelec Article No.:
- 304-50-887
- Mfr. Part No.:
- 5-146278-8
- Brand:
- TE Connectivity
Subtotal (1 pack of 200 units)*
£188.32
(exc. VAT)
£225.98
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £188.32 | £0.942 |
*price indicative
- RS Stock No.:
- 473-605
- Distrelec Article No.:
- 304-50-887
- Mfr. Part No.:
- 5-146278-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Number of Contacts | 8 | |
| Housing Material | Glass Filled Liquid Crystal Polymer | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Tail Pin Length | 3.05mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Voltage | 30V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Number of Contacts 8 | ||
Housing Material Glass Filled Liquid Crystal Polymer | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Tin Plated | ||
Contact Material Phosphor Bronze | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Tail Pin Length 3.05mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Voltage 30V | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is a cutting-edge connector designed for vertical board-to-board applications, featuring eight positions and a 2.54 mm centreline spacing. This connector excels in facilitating secure and efficient connections in various electronic assemblies, ensuring reliability and performance in demanding environments. Made from high-quality materials, the header offers excellent electrical characteristics, including a 30 VAC operating voltage. Its breakaway design not only simplifies integration but also enhances flexibility in circuit designs, making it ideal for both prototyping and production. With compatibility to both CSA and UL standards, this product represents a blend of practicality and compliance, confirming its place in innovative electronic solutions.
Connector system optimised for board-to-board configurations
Standard connector profile ensures a streamlined integration process
Designed to accommodate high temperatures with a robust housing material
Offers a through-hole solder termination method for enhanced stability
Features enhanced current ratings, ensuring reliability in demanding applications
Nickel underplating ensures improved conductivity and longevity
Breakaway design promotes easy modification and integration in various setups
Available in bulk quantities, ideal for large-scale assembly projects
