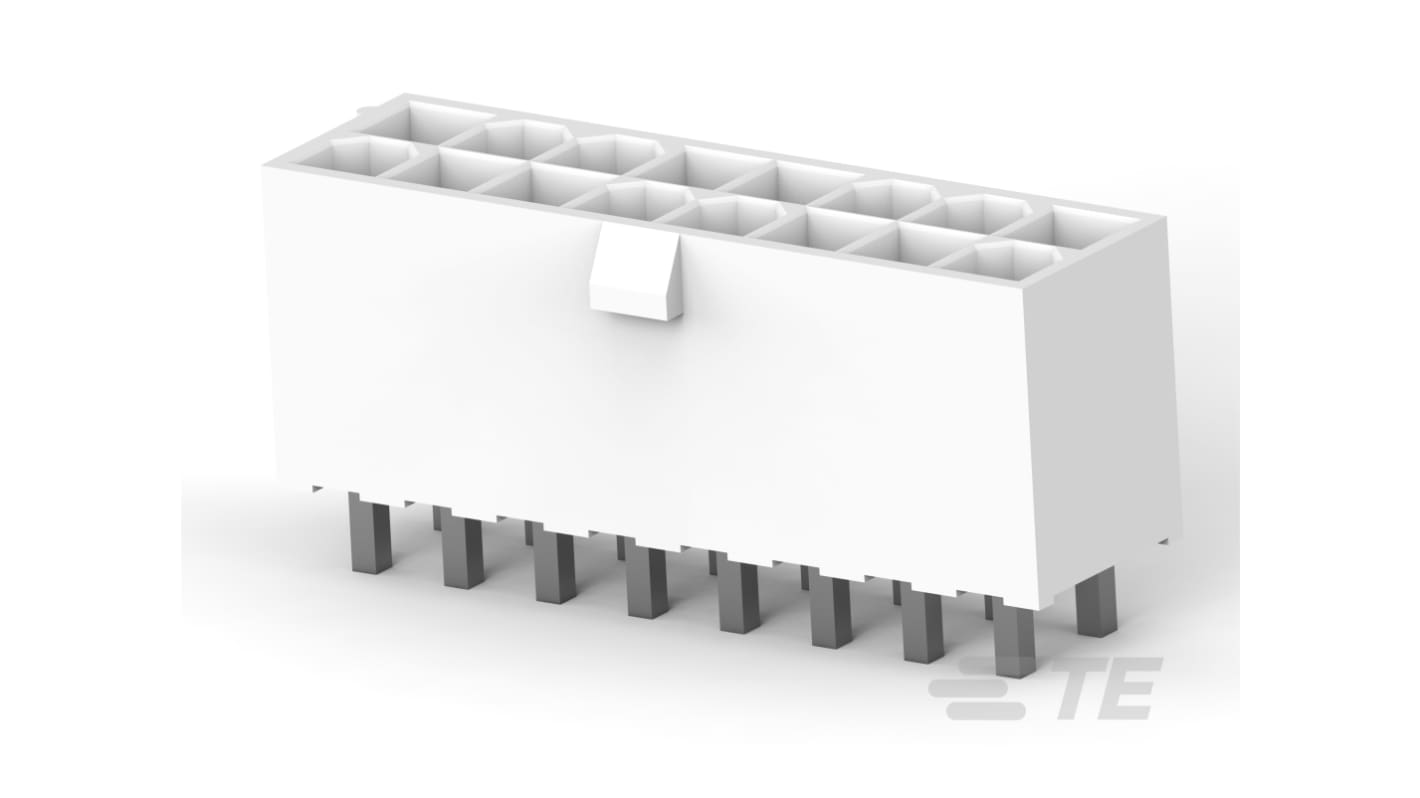

TE Connectivity AMPMODU Series Vertical Board Mount PCB Header, 16 Contact(s), 4.2mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 472-640
- Mfr. Part No.:
- 1-2825260-6
- Brand:
- TE Connectivity
Subtotal (1 tray of 165 units)*
£212.58
(exc. VAT)
£255.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £212.58 | £1.288 |
*price indicative
- RS Stock No.:
- 472-640
- Mfr. Part No.:
- 1-2825260-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMPMODU | |
Pitch | 4.2mm | |
Number of Contacts | 16 | |
Number of Rows | 2 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Pitch 4.2mm | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- TW
The TE Connectivity PCB Mount Header is designed for reliable vertical wire-to-board connections, featuring a robust assembly that accommodates 16 positions with a 4.2 mm centreline. Built with durability in mind, it boasts a fully shrouded design and is suitable for through-hole soldering applications. The header's natural colour provides an unobtrusive look, while its tin-coated construction ensures excellent conductivity and resistance to corrosion. This connector is ideal for power circuitry, supporting an operating voltage of up to 600 VAC. Designed for ease of installation, the locking tab feature secures the connection, enhancing stability during operation. With compliance to industry standards, it is a perfect choice for modern electronic applications across various sectors.
The header incorporates a fully shrouded design to enhance safety during use
Its vertical mounting orientation simplifies PCB space management
Engineered for a robust connection with a maximum contact current rating of 9 A
Includes a keyed mating alignment feature that ensures correct connection
Constructed from nylon housing material, delivering strength and thermal stability
Designed for operational temperatures ranging from -40 to 105 °C, providing versatility in applications
Composed of reliable nickel contact underplating, promoting excellent electrical performance
The tray packaging method ensures efficient handling and organisation during procurement
Its vertical mounting orientation simplifies PCB space management
Engineered for a robust connection with a maximum contact current rating of 9 A
Includes a keyed mating alignment feature that ensures correct connection
Constructed from nylon housing material, delivering strength and thermal stability
Designed for operational temperatures ranging from -40 to 105 °C, providing versatility in applications
Composed of reliable nickel contact underplating, promoting excellent electrical performance
The tray packaging method ensures efficient handling and organisation during procurement
