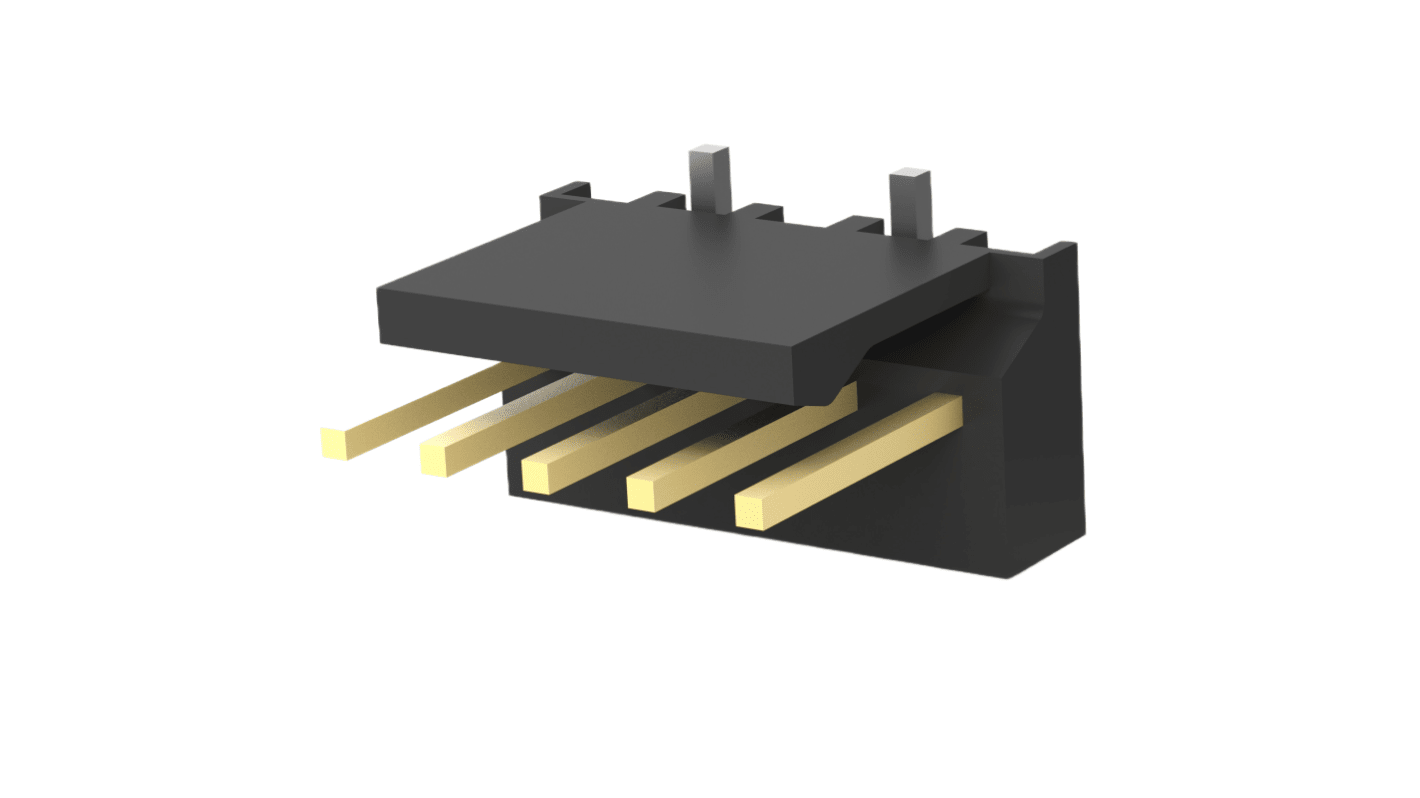

TE Connectivity MTA-100 Series Vertical Board PCB Header, 5 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 472-481
- Mfr. Part No.:
- 3-647167-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 85 units)*
£170.25
(exc. VAT)
£204.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £170.25 | £2.003 |
*price indicative
- RS Stock No.:
- 472-481
- Mfr. Part No.:
- 3-647167-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MTA-100 | |
| Current | 5A | |
| Pitch | 2.54mm | |
| Number of Contacts | 5 | |
| Housing Material | Nylon 46 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Termination Type | Surface Mount | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Mating Pin Length | 7.37mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-706 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MTA-100 | ||
Current 5A | ||
Pitch 2.54mm | ||
Number of Contacts 5 | ||
Housing Material Nylon 46 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Termination Type Surface Mount | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Mating Pin Length 7.37mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-706 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed to provide a reliable and efficient connection for wire-to-board applications. With a vertical orientation and five positions, this connector is expertly crafted for applications requiring space-saving solutions and secure connections. Its partially shrouded design enhances the reliability of the connection while the gold-plated contacts ensure excellent conductivity. Suitable for both industrial and consumer electronics, this robust header supports a wide operating temperature range and is built to withstand harsh conditions. Perfect for modern PCB layouts, this connector not only streamlines circuit design but also enhances overall performance, making it an ideal choice for engineers seeking dependability.
Vertical mount orientation allows for space-efficient installations
Partially shrouded design provides enhanced connection security
Gold-plated contacts ensure optimal conductivity and performance
Wide operating temperature range supports diverse applications
Surface mount capability simplifies assembly and reduces footprint
Nylon housing provides durability and resistance to environmental factors
Friction lock feature enhances mating retention for reliability
Single-row configuration optimises PCB layout flexibility
Compatible with MTA 100 series for versatile integration
