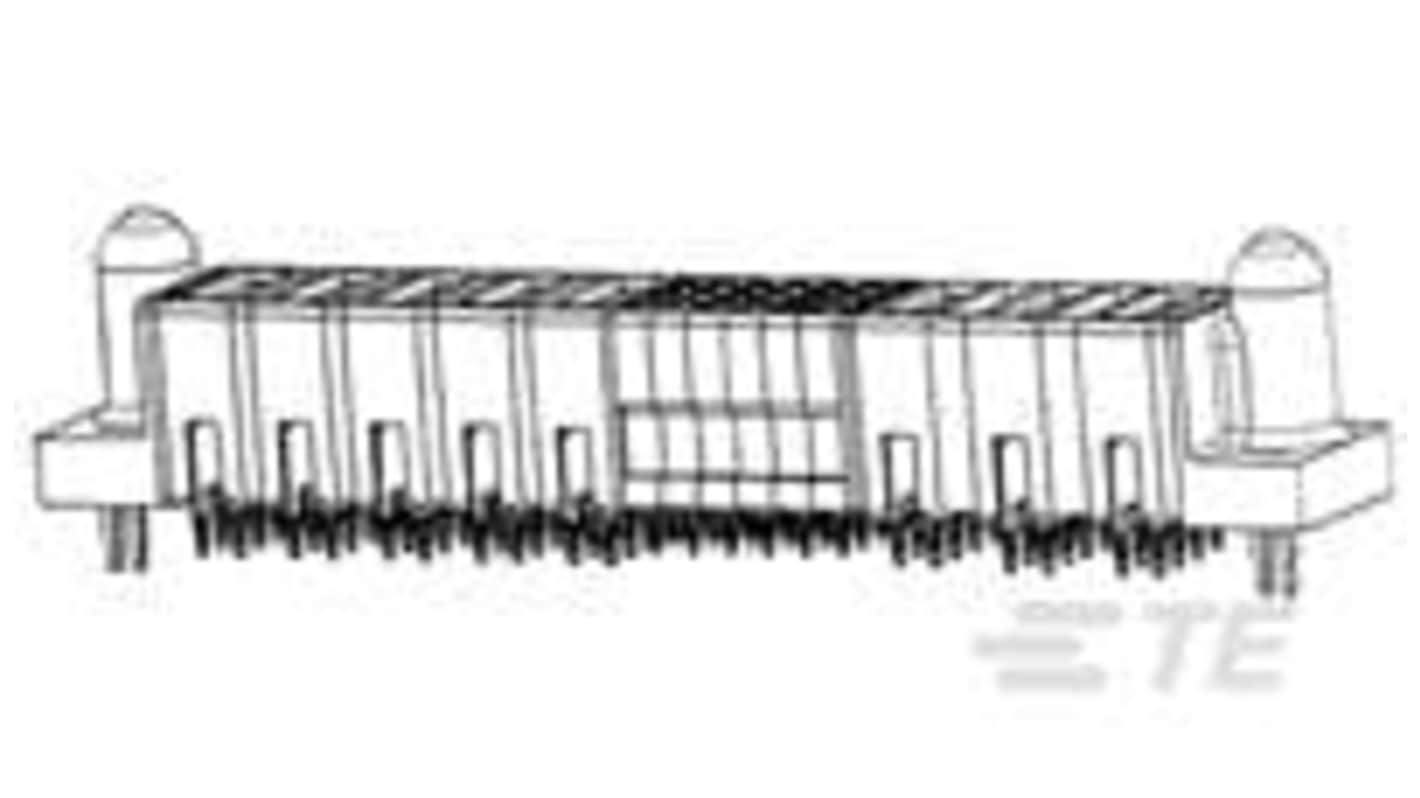

TE Connectivity MBXL Series Vertical Board PCB Header, 20 Contact(s), 6.35 mm Pitch, 4 Row(s), Shrouded
- RS Stock No.:
- 472-472
- Mfr. Part No.:
- 3-6450140-0
- Brand:
- TE Connectivity
Subtotal (1 tray of 10 units)*
£166.66
(exc. VAT)
£199.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £166.66 | £16.666 |
*price indicative
- RS Stock No.:
- 472-472
- Mfr. Part No.:
- 3-6450140-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MBXL | |
| Product Type | PCB Header | |
| Pitch | 6.35mm | |
| Current | 42A | |
| Number of Contacts | 20 | |
| Housing Material | Thermoplastic Glass Filled | |
| Number of Rows | 4 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 6.35mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.43mm | |
| Standards/Approvals | UL 94V-0, 2016, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant | |
| Voltage | 200 V | |
| Distrelec Product Id | 304-58-588 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MBXL | ||
Product Type PCB Header | ||
Pitch 6.35mm | ||
Current 42A | ||
Number of Contacts 20 | ||
Housing Material Thermoplastic Glass Filled | ||
Number of Rows 4 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 6.35mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.43mm | ||
Standards/Approvals UL 94V-0, 2016, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant | ||
Voltage 200 V | ||
Distrelec Product Id 304-58-588 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is designed for versatility in board-to-board interconnections, featuring a sleek vertical orientation and a robust 20-position configuration. The fully shrouded design coupled with a reliable gold contact plating ensures superior electrical performance and longevity in various applications. Engineered to accommodate high-density layouts, this connector boasts a flexible centreline that makes it suitable for both 2.54 mm and 6.35 mm configurations. Its black body, crafted from high-temperature thermoplastic glass-filled material, provides durability and resilience, making it an ideal choice for demanding environments. With compatibility for a wide range of circuit applications, it is well-suited for both power and signal connections, ensuring seamless data transmission and power delivery.
Mixed and hybrid header functionality enhances design flexibility
PCB mount retention features ensure stable and secure connections
High current rating supports demanding electronic applications
Guide post alignment facilitates easy and accurate mating
Tray packaging offers convenient handling and storage
Robust construction withstands high-temperature environments
Versatile dimensions cater to varying PCB thickness requirements
Compliant with strict environmental regulations, ensuring safety and sustainability
