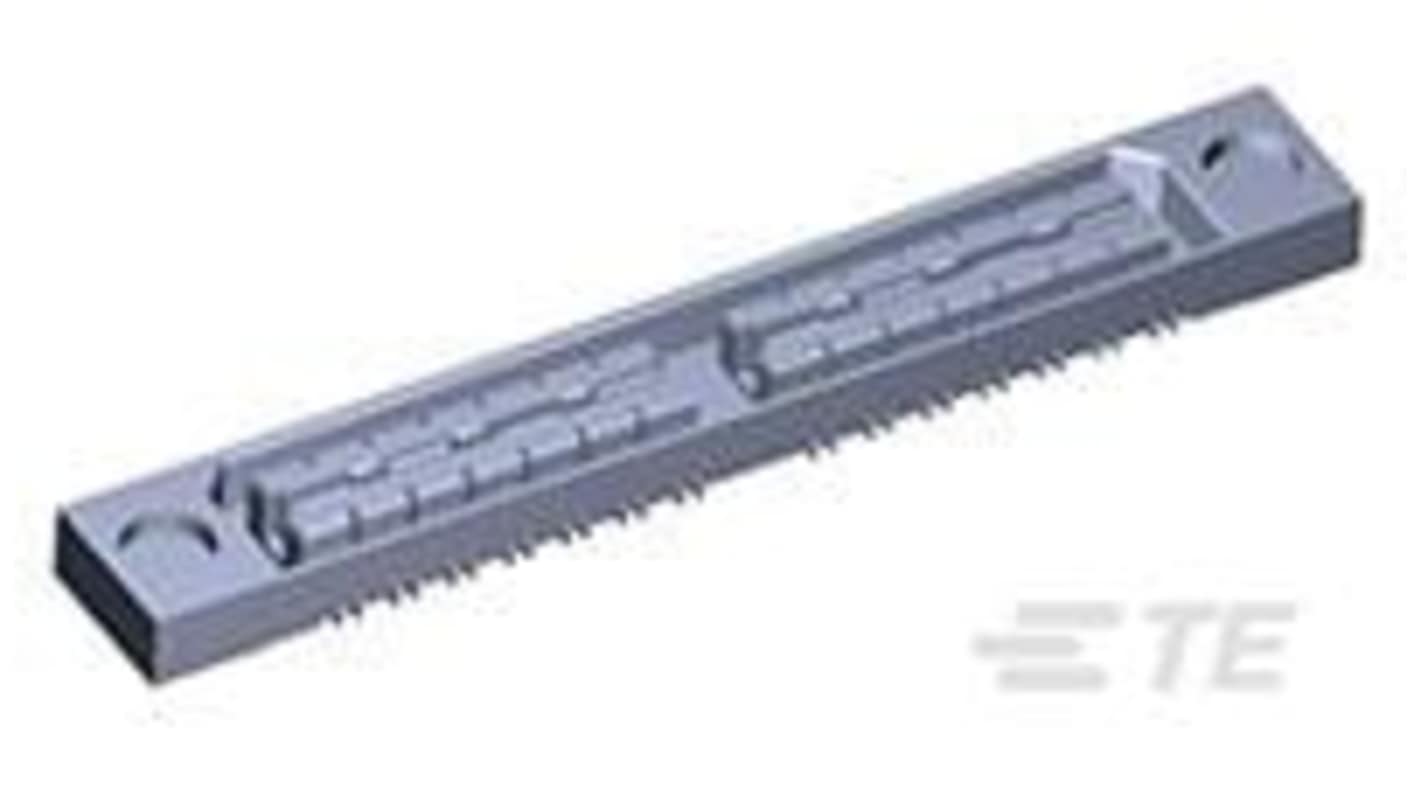

TE Connectivity MICTOR Series Vertical Board PCB Header, 56 Contact(s), 0.8 mm Pitch, Shrouded
- RS Stock No.:
- 471-462
- Distrelec Article No.:
- 304-53-383
- Mfr. Part No.:
- 1-1658486-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 20 units)*
£267.92
(exc. VAT)
£321.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £267.92 | £13.396 |
*price indicative
- RS Stock No.:
- 471-462
- Distrelec Article No.:
- 304-53-383
- Mfr. Part No.:
- 1-1658486-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MICTOR | |
| Product Type | PCB Header | |
| Current | 9.5A | |
| Pitch | 0.8mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 56 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 0.8mm | |
| Termination Type | Surface Mount | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Voltage | 125 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MICTOR | ||
Product Type PCB Header | ||
Current 9.5A | ||
Pitch 0.8mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 56 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 0.8mm | ||
Termination Type Surface Mount | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Voltage 125 V | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount receptacle is engineered for seamless board-to-board connections, offering a robust solution for electronic assemblies where space and reliability are paramount. Designed with a fully shrouded architecture, it ensures secure and dependable mating, making it an ideal choice for applications demanding high precision. The 56-position design features an impressively compact .8 mm centreline, allowing for excellent spatial efficiency without compromising performance. With gold plating and a confident operational voltage of 125 VAC, this connector not only meets current standards but exceeds expectations in signal integrity and power delivery.
Provides enhanced durability through gold contact plating
Supports efficient thermal management across a wide operating temperature range
Facilitates potential space saving designs due to its compact size
Offers straightforward surface mount termination for easy assembly
Features alignment posts to ensure precise positioning during installation
Is compliant with multiple international standards ensuring global usability
