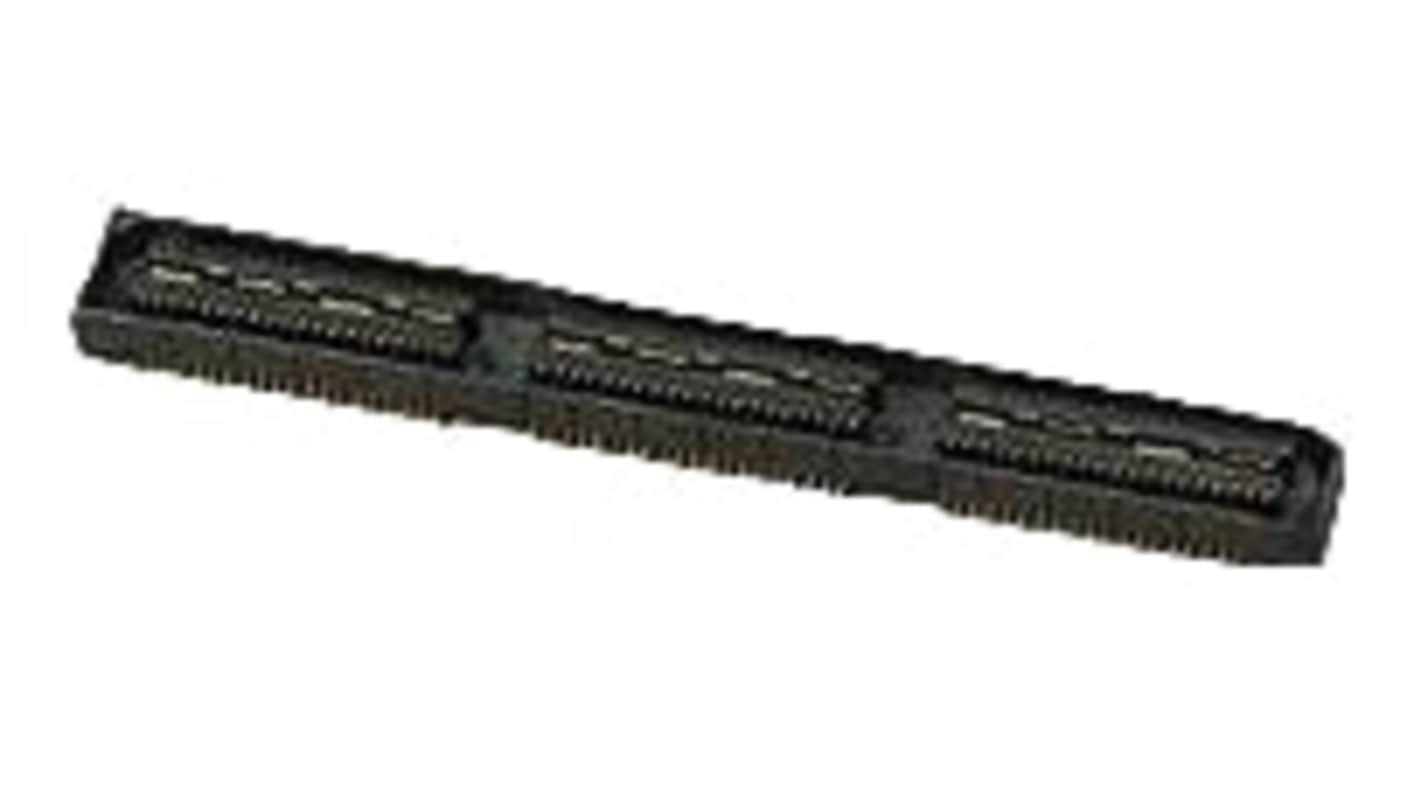

TE Connectivity MICTOR Series Vertical Board PCB Header, 120 Contact(s), 0.8 mm Pitch, Shrouded
- RS Stock No.:
- 468-862
- Mfr. Part No.:
- 2-1658043-3
- Brand:
- TE Connectivity
Subtotal (1 tray of 15 units)*
£203.12
(exc. VAT)
£243.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £203.12 | £13.541 |
*price indicative
- RS Stock No.:
- 468-862
- Mfr. Part No.:
- 2-1658043-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MICTOR | |
| Current | 9.5A | |
| Pitch | 0.8mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 120 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold Flash | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 0.8mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-759 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MICTOR | ||
Current 9.5A | ||
Pitch 0.8mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 120 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Plating Gold Flash | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 0.8mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-759 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is designed for vertical board-to-board applications, providing a reliable 120-position connectivity solution. Optimised for surface mounting, this component features a robust assembly process, utilising high-quality materials such as polyimide film and LCP (Liquid Crystal Polymer) for enhanced durability and performance. This receptacle is engineered to seamlessly handle power and signal, ensuring robust electrical characteristics with an operating voltage of up to 125 VAC. Its fully shrouded, gold-flash plating ensures exceptional conductivity and longevity, making it a preferred choice for high-performance applications.
Maintains excellent insulation resistance of 2 MΩ for enhanced reliability
Supports operation within an extensive temperature range of -65 to 125 °C
Features parallel board-to-board configuration, enhancing design flexibility
Facilitates easy assembly with a pick and place cover feature
Includes precision alignment posts for straightforward installation
Embraces low halogen content, aligning with eco-friendly practices
Provides a secure mating retention, ensuring a robust connection
Offers multiple stack heights to accommodate various design specifications
