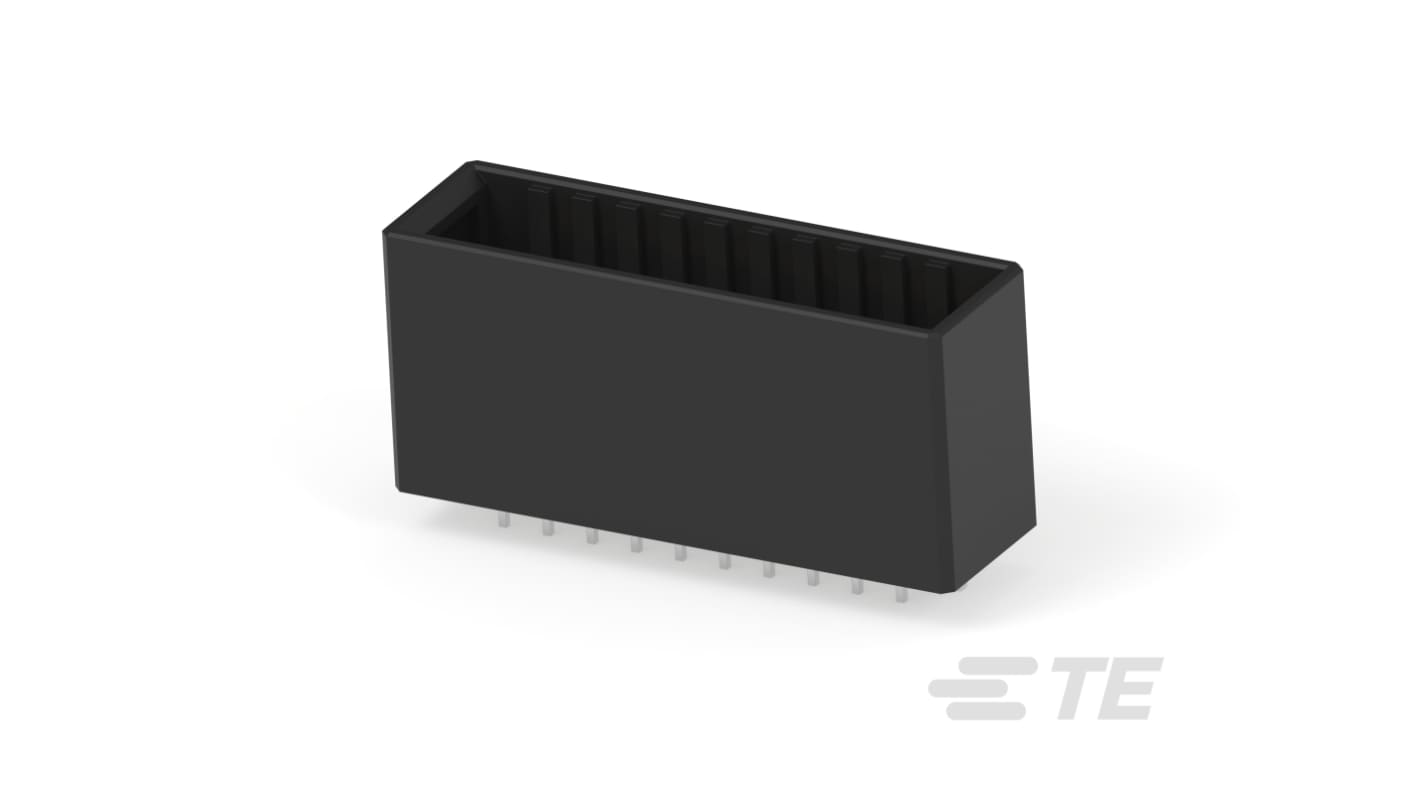

TE Connectivity Dynamic 3000 Series Vertical Board PCB Header, 20 Contact(s), 3.81 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 469-475
- Mfr. Part No.:
- 178328-5
- Brand:
- TE Connectivity
Subtotal (1 box of 30 units)*
£192.42
(exc. VAT)
£230.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £192.42 | £6.414 |
*price indicative
- RS Stock No.:
- 469-475
- Mfr. Part No.:
- 178328-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Dynamic 3000 | |
| Product Type | PCB Header | |
| Pitch | 3.81mm | |
| Current | 15A | |
| Number of Contacts | 20 | |
| Housing Material | Fibreglass Polyester | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 3.81mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-377 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Dynamic 3000 | ||
Product Type PCB Header | ||
Pitch 3.81mm | ||
Current 15A | ||
Number of Contacts 20 | ||
Housing Material Fibreglass Polyester | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 3.81mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-377 | ||
- COO (Country of Origin):
- JP
The TE Connectivity PCB mount header is an ideal solution for wire-to-board connections, designed with a robust structure and innovative features that make it stand out in the dynamic 3000 series. Offering a 20-position layout with a compact 3.81 mm centreline, this fully shrouded connector provides excellent reliability for various applications. Its dynamic design ensures optimal mating performance and durability, while the black polyester GF housing ensures a sleek appearance and enhanced strength. Capable of handling operating voltages up to 250 VDC, this connector is ideal for both power and signal circuit applications, making it a versatile choice for engineers and designers alike. With a range of compliance certifications, this component meets stringent industry standards, ensuring peace of mind in performance and safety for end users.
Seamless integration with a wire-to-board connector system for enhanced connectivity quality
Fully shrouded header design to prevent accidental disengagement
Optimised contact design that maximises electrical performance
Designed to withstand a wide operating temperature range from -55°C to 105°C
Mating retention features lock connectors in place for secure connections
Polarisation aids in proper mating alignment, reducing assembly errors
RoHS compliant materials ensure environmentally responsible manufacturing
