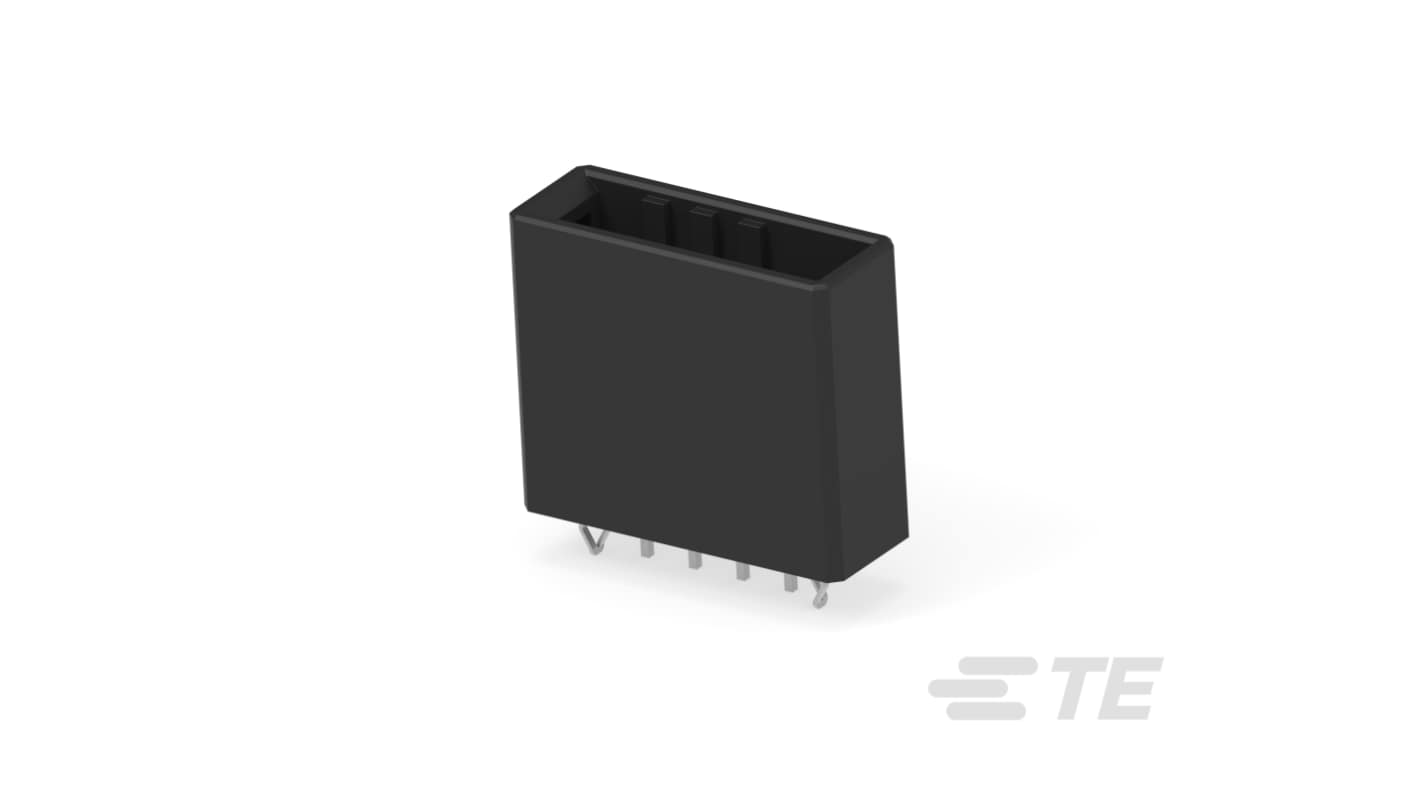

TE Connectivity Dynamic 3000 Series Vertical Board PCB Header, 4 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 468-943
- Mfr. Part No.:
- 2-178314-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 152 units)*
£232.74
(exc. VAT)
£279.29
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £232.74 | £1.531 |
*price indicative
- RS Stock No.:
- 468-943
- Mfr. Part No.:
- 2-178314-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Dynamic 3000 | |
| Current | 15A | |
| Pitch | 3.81mm | |
| Number of Contacts | 4 | |
| Housing Material | Fibreglass Polyester | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Tin Plated | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Distrelec Product Id | 304-51-686 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Dynamic 3000 | ||
Current 15A | ||
Pitch 3.81mm | ||
Number of Contacts 4 | ||
Housing Material Fibreglass Polyester | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Tin Plated | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Distrelec Product Id 304-51-686 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is an exemplary component designed for vertical wire-to-board applications, adhering to the dynamic 3000 series standards. It offers a highly reliable connection with four positions and a 3.81 mm centreline, ensuring compatibility across various circuit layouts. Crafted from durable polyester GF, this fully shrouded connector not only enhances performance but also guarantees robustness in demanding environments. With a remarkable temperature operating range of -55 to 105 °C, it efficiently caters to both power and signal applications. The component is remarkably user-friendly, featuring a through-hole solder termination method that simplifies installation on printed circuit boards. Additionally, the matte tin plated contacts enhance conductivity and ensure lasting performance under heavy load conditions.
Designed for vertical orientation to maximise space efficiency
Supports wire-to-board connections for versatile applications
Fully shrouded design provides added protection against environmental factors
Matte tin plated contacts facilitate improved electrical performance
Built to withstand extreme temperature fluctuations
Simplifies installation process with its through-hole soldering method
Retains connectors securely in place, ensuring reliable mating
Meets strict industry standards for safety and performance
