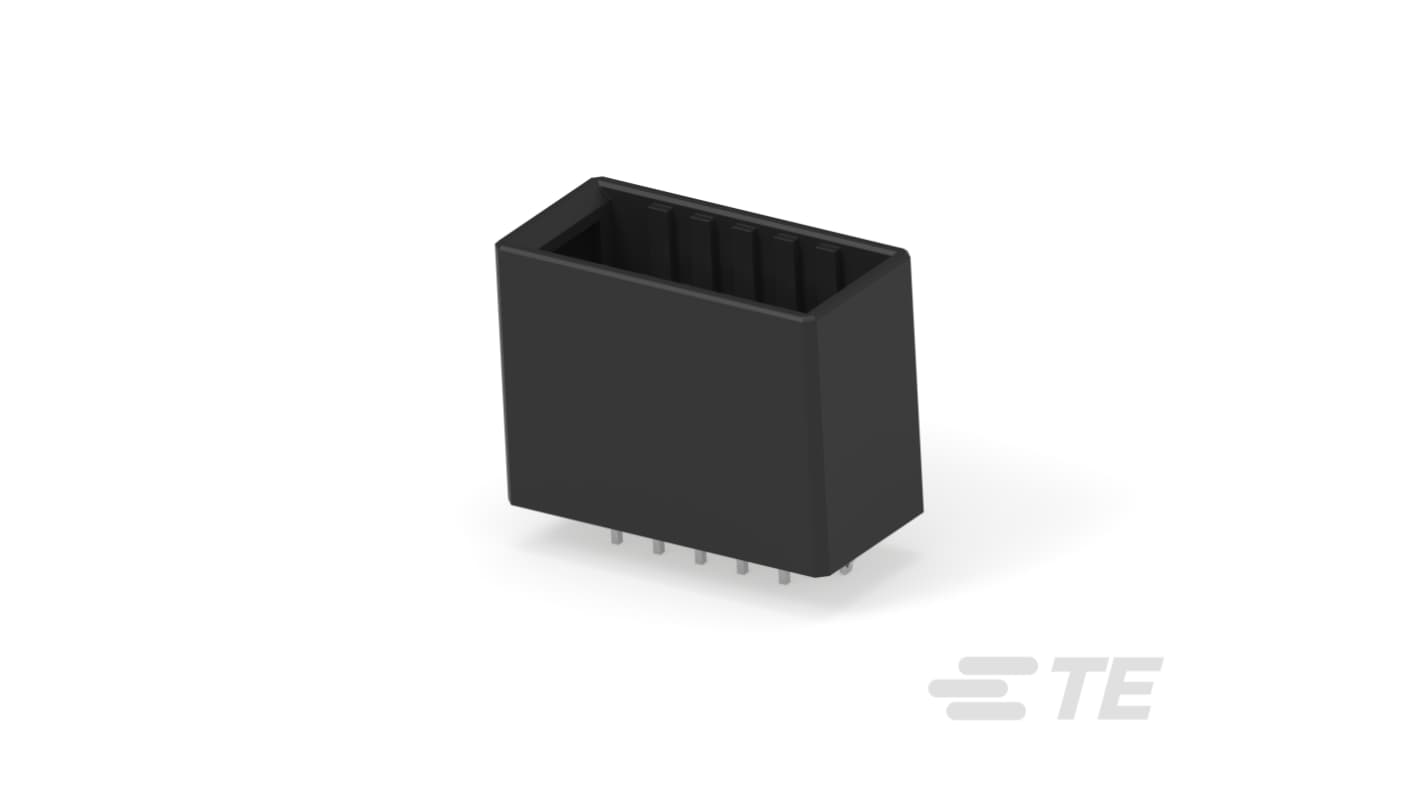

TE Connectivity Dynamic 3000 Series Vertical Board PCB Header, 10 Contact(s), 3.81 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 51 units)*

£220.22

(exc. VAT)

£264.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£220.22£4.318

*price indicative

RS Stock No.:
479-269
Mfr. Part No.:
178325-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

Dynamic 3000

Product Type

PCB Header

Current

15A

Pitch

3.81mm

Number of Contacts

10

Housing Material

Fibreglass Polyester

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Board

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Row Pitch

3.81mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

105°C

Tail Pin Length

3.8mm

Standards/Approvals

TUV, UL 94V-0

Voltage

250 V

Distrelec Product Id

304-53-722

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header is a versatile connector solution designed for wire-to-board applications. Offering a unique combination of a vertical orientation and a fully shrouded design, it efficiently accommodates up to 10 positions, ensuring reliable connections in space-constrained environments. The product forms part of the Dynamic 3000 Series, showcasing a robust build quality with superior materials, including a nickel and tin plating for enhanced conductivity. With an operating voltage of 250 VDC, it is engineered to handle power and signal applications seamlessly, ensuring durability and longevity in demanding conditions. Its user-friendly design features polarization and retention mechanisms, simplifying the integration process while maintaining a secure fit. This header is tailored for engineers seeking a dependable and feature-rich connector for various electronic projects.

Engineered for vertical PCB mounting to optimise space efficiency

Fully shrouded design offers protection against accidental disconnections

Supports a maximum current rating of 15 A, making it suitable for power applications

Utilises polyester GF housing material, providing durability in various environments

Wave solder capable, ensuring compatibility with different soldering techniques

Polarisation feature enhances mating alignment, facilitating easy assembly

Matte finish on the mating area plating improves durability and performance

Constructed with copper alloy contacts for excellent conductivity

Designed for use within a wide temperature range of -55 to 105°C

Compliance with EU RoHS and REACH regulations ensures environmental responsibility
