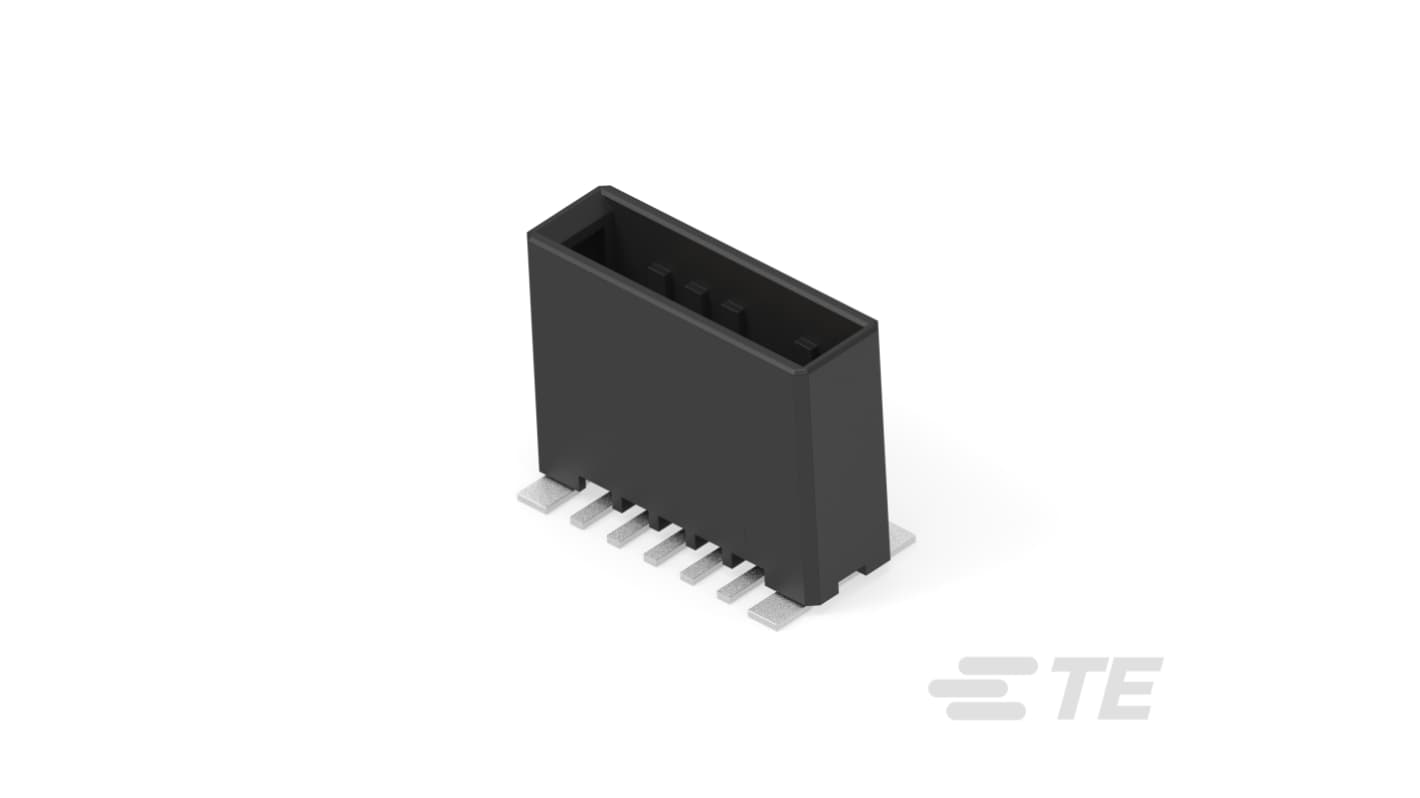

TE Connectivity Dynamic 3000 Series Vertical Board PCB Header, 5 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 471-445
- Mfr. Part No.:
- 1-1903481-2
- Brand:
- TE Connectivity
Subtotal (1 tube of 51 units)*
£232.98
(exc. VAT)
£279.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £232.98 | £4.568 |
*price indicative
- RS Stock No.:
- 471-445
- Mfr. Part No.:
- 1-1903481-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Dynamic 3000 | |
| Current | 15A | |
| Pitch | 3.81mm | |
| Number of Contacts | 5 | |
| Housing Material | Glass Filled Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 3.81mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Distrelec Product Id | 304-64-295 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Dynamic 3000 | ||
Current 15A | ||
Pitch 3.81mm | ||
Number of Contacts 5 | ||
Housing Material Glass Filled Thermoplastic | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 3.81mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Distrelec Product Id 304-64-295 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header provides a reliable wire-to-board connection in a compact design, perfectly suited for modern electronic applications. Engineered for efficiency, this connector features five positions arranged in a vertical orientation, accommodating a 3.81 mm centerline. With its fully shrouded design and gold plating, it offers excellent conductivity and protection against environmental factors. The robust construction ensures durability and long-lasting performance, making it ideal for various applications within the Dynamic 3000 Series. By integrating seamless soldering capabilities and superior mating retention, this component simplifies the assembly process and ensures a secure electrical connection, enhancing overall device efficiency.
Designed for easy integration into PCB layouts
Vertical orientation aids in space-saving configurations
Fully shrouded design mitigates the risk of misalignment
Gold plating enhances conductivity and reduces oxidation
Solder peg retention provides additional stability during assembly
Appropriate for both power and signal applications
Serves well in a temperature range suitable for demanding environments
Box and tube packaging options ensure safe delivery
