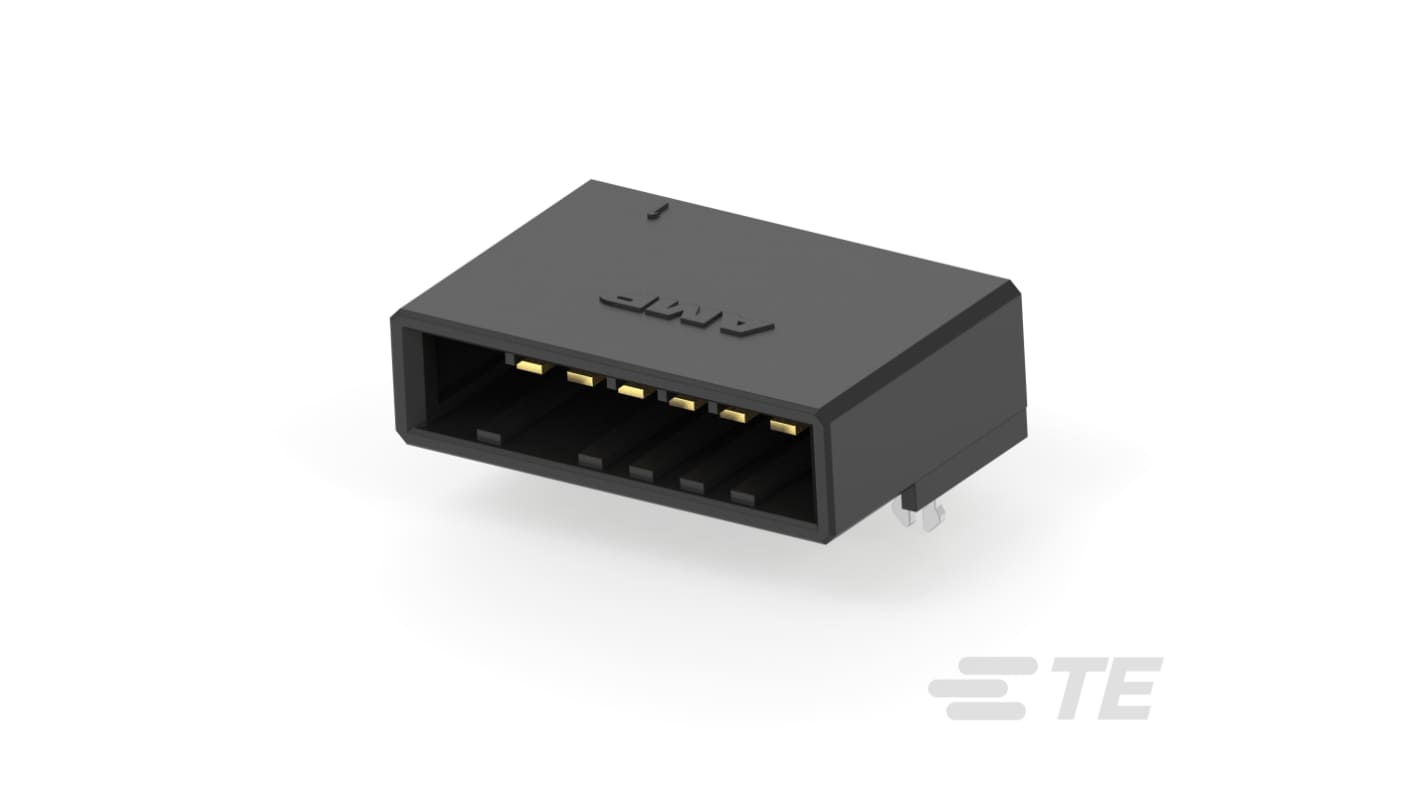

TE Connectivity Dynamic 3000 Series Horizontal Board PCB Header, 6 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 468-109
- Mfr. Part No.:
- 1-178296-3
- Brand:
- TE Connectivity
Subtotal (1 tube of 45 units)*
£191.70
(exc. VAT)
£230.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £191.70 | £4.26 |
*price indicative
- RS Stock No.:
- 468-109
- Mfr. Part No.:
- 1-178296-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Dynamic 3000 | |
| Current | 15A | |
| Pitch | 3.81mm | |
| Housing Material | Fibreglass Polyester | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 3.81mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Distrelec Product Id | 304-51-377 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Dynamic 3000 | ||
Current 15A | ||
Pitch 3.81mm | ||
Housing Material Fibreglass Polyester | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 3.81mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Distrelec Product Id 304-51-377 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is engineered for versatility and reliability in wire-to-board connections. Featuring a horizontal mount design, this 6-position header guarantees efficient alignment and ease of installation, making it perfect for space-constrained applications. Crafted with fully shrouded contacts and gold plating, it enhances conductivity while ensuring protection against mechanical stress. Its robust housing material contributes to the durability needed for demanding environments, while the operational temperature range of -55 to 105°C makes it suitable for various industrial applications. The header's compatibility extends to a wide array of connectors, offering flexibility for designers looking to streamline their assembly process.
Designed for board level applications with a horizontal orientation
Fully shrouded design provides enhanced protection and reliability
Optimised for wire to board applications ensuring secure connections
Gold plating on contacts enhances conductivity and resistance to corrosion
Durable polyester GF housing material withstands harsh conditions
High operational temperature range accommodates diverse environments
Wave solder capability ensures compatibility with various soldering processes
Polarisation feature simplifies mating and prevents misalignment
