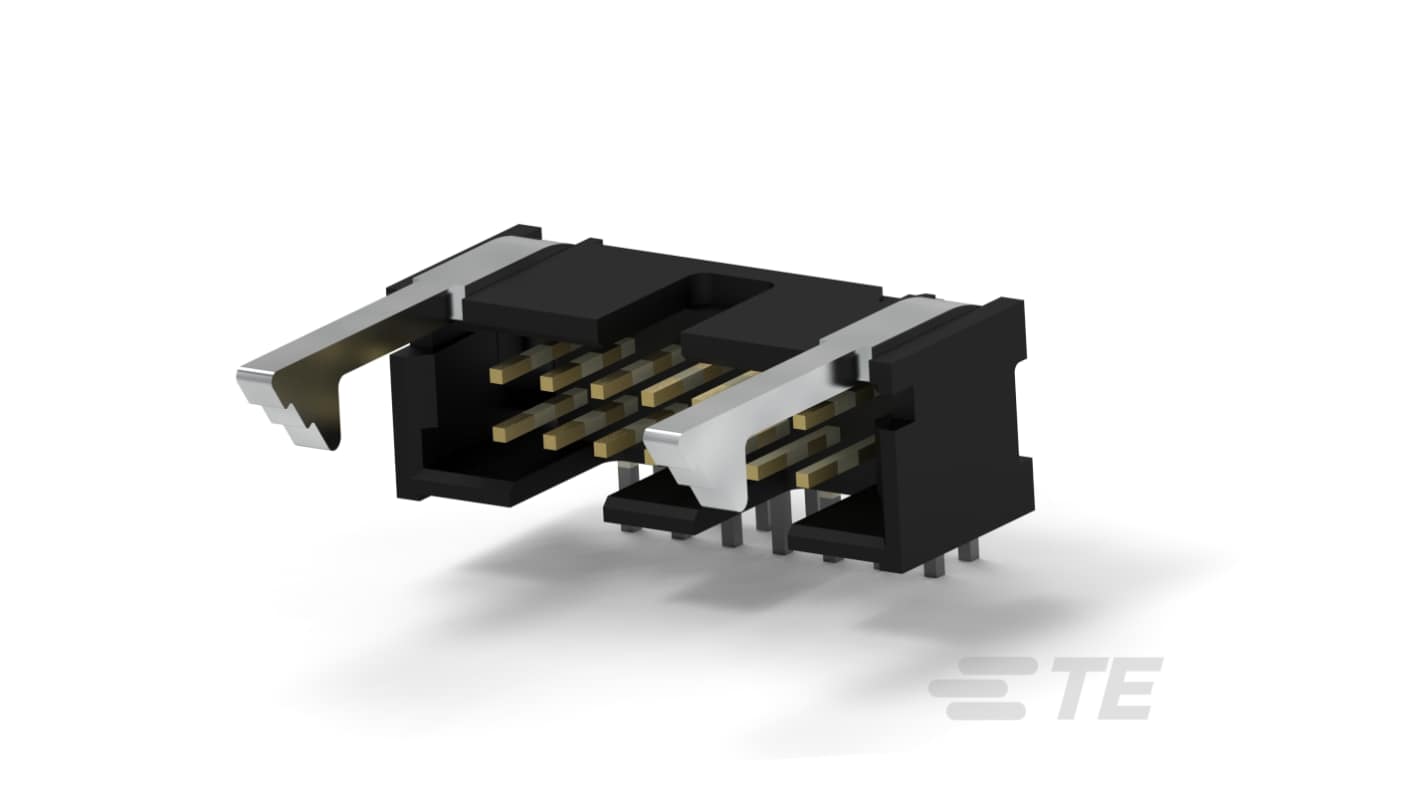

TE Connectivity AMP-LATCH Series Right Angle Board PCB Connector, 14 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tray of 40 units)*

£178.39

(exc. VAT)

£214.07

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£178.39£4.46

*price indicative

RS Stock No.:
468-085
Mfr. Part No.:
104130-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

AMP-LATCH

Product Type

PCB Connector

Pitch

2.54mm

Current

1A

Housing Material

Thermoplastic

Number of Contacts

14

Number of Rows

2

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Board-to-Board

Contact Plating

Gold Flash over Nickel

Contact Material

Copper Alloy

Minimum Operating Temperature

65°C

Row Pitch

2.54mm

Termination Type

Solder

Tail Pin Length

3.43mm

Maximum Operating Temperature

105°C

Standards/Approvals

UL 94 V-0

Distrelec Product Id

304-48-508

Non Compliant

COO (Country of Origin):
CN
The TE Connectivity board-to-board connector is designed for seamless integration with ribbon cables, offering a low-profile solution for space-constrained applications. With 14 positions and a 2.54 mm centerline, this connector ensures reliable connections in varied electronic setups. The right-angle orientation and through-hole solder feature facilitate easy mounting on printed circuit boards. Built to withstand harsh environments, it boasts an operating temperature range of -65 to 105 °C, making it ideal for demanding applications. The innovative mating alignment with dual polarizing bar enhances usability, ensuring proper connections every time. Whether it's for consumer electronics or industrial machinery, this connector provides the robustness and performance that engineers require.

Low-profile design optimizes space within electronic devices

Right-angle orientation simplifies PCB layout considerations

Dual polarizing bar aids in correct orientation during installation

High insulation resistance ensures durability and longevity

Constructed with thermoplastic housing for increased reliability

Nickel underplating combined with gold mating area enhances conductivity

Suitable for high-temperature applications, supporting a broad operational range

Ejection latch mechanism provides secure mating retention
