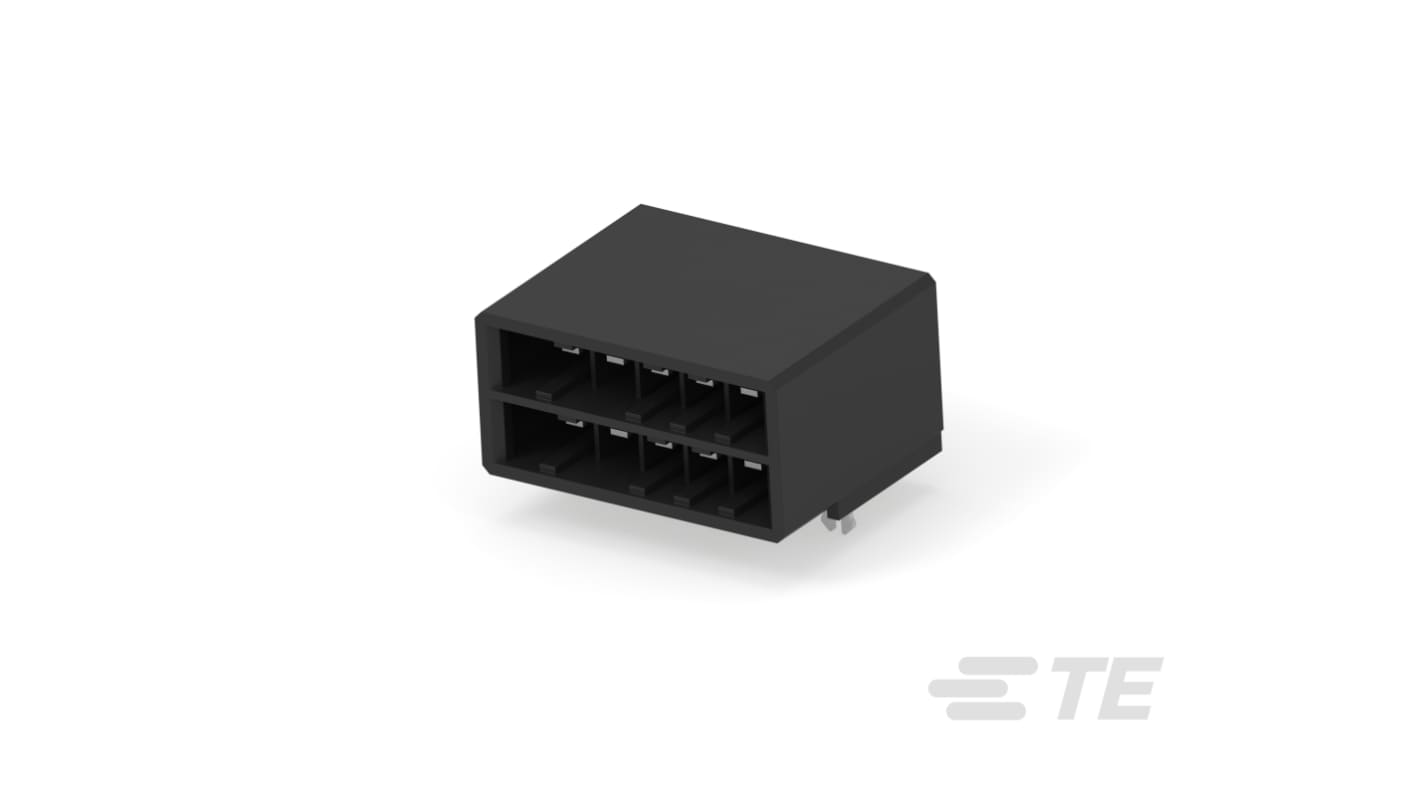

TE Connectivity Dynamic 3000 Series Horizontal Board PCB Header, 10 Contact(s), 5.08 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 467-912
- Mfr. Part No.:
- 1-316080-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 56 units)*
£186.86
(exc. VAT)
£224.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £186.86 | £3.337 |
*price indicative
- RS Stock No.:
- 467-912
- Mfr. Part No.:
- 1-316080-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Dynamic 3000 | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 5.08mm | |
| Number of Contacts | 10 | |
| Housing Material | Glass Filled Thermoplastic Polyester | |
| Number of Rows | 2 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 5.08mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, TUV Certificate, UL 94V-0 | |
| Distrelec Product Id | 304-51-412 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Dynamic 3000 | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 5.08mm | ||
Number of Contacts 10 | ||
Housing Material Glass Filled Thermoplastic Polyester | ||
Number of Rows 2 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 5.08mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, TUV Certificate, UL 94V-0 | ||
Distrelec Product Id 304-51-412 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed to meet the demanding requirements of modern electronic applications. Featuring a horizontal orientation and a robust 10-position configuration, it ensures secure connections between your printed circuit boards and wire-to-board systems. Constructed with fully shrouded features, this connector not only provides reliable performance but also enhances protection against accidental disconnections. The dynamic 3000 series is engineered for high reliability, utilising high-quality materials like glass-filled thermoplastic polyester for the housing. With a superior operating temperature range and nickel underplating for durability, this PCB Mount Header is ideal for power and signal applications. Its compact design and efficient layout allow for easy integration into various electronic configurations, making it the perfect choice for engineers seeking quality and performance in one package.
Offers excellent mating retention to ensure stable connections
Designed for straightforward assembly with through-hole soldering
Constructed from high-grade materials for enhanced durability
Optimised dimensions promote efficient use of board space
Supports a wide range of operating temperatures for versatile applications
Complies with international standards for safety and performance
Available in packaging quantities that suit both large and small projects
Part of a series known for its quality and reliability within the industry
