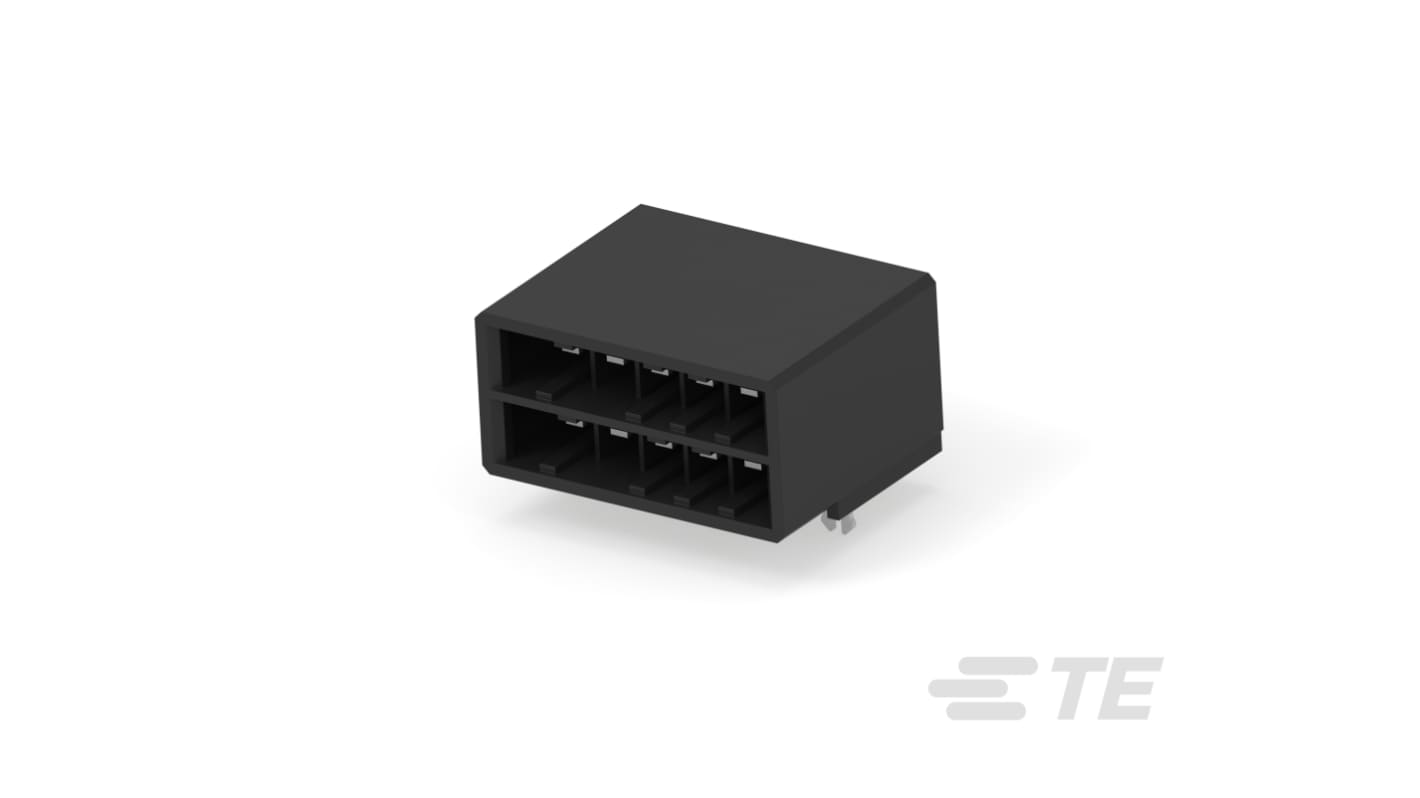

TE Connectivity Dynamic 3000 Series Series Horizontal Board Mount PCB Header, 10 Contact(s), 5.08mm Pitch, 2 Row(s),
- RS Stock No.:
- 510-019
- Mfr. Part No.:
- 3-316080-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 84 units)*
£226.16
(exc. VAT)
£271.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 + | £226.16 | £2.692 |
*price indicative
- RS Stock No.:
- 510-019
- Mfr. Part No.:
- 3-316080-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | Dynamic 3000 Series | |
Pitch | 5.08mm | |
Number of Contacts | 10 | |
Number of Rows | 2 | |
Body Orientation | Horizontal | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series Dynamic 3000 Series | ||
Pitch 5.08mm | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Body Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is a high-performance interconnect solution designed for horizontal wire-to-board applications. It features a fully shrouded design that ensures reliable connectivity in environments demanding robust performance. With a 10-position configuration and a 5.08 mm centreline spacing, this connector is ideally suited for applications where space is at a premium. Built to meet rigorous industry standards, it offers secure mounting options and enhanced durability, making it an excellent choice for modern electronic devices. The versatile design accommodates various PCB layouts while delivering exceptional signal integrity. The header is further enhanced by its tin plating, ensuring optimal conductivity and protection against corrosion, enabling it to outperform in both power and signal applications.
Robust retention features ensure a secure connection in challenging environments
Matte finish on the contact mating area enhances signal transmission and reliability
Keyed alignment simplifies the mating process and prevents errors during installation
Polyester GF housing material provides excellent mechanical strength and thermal stability
Compatible with a wide range of PCB designs for increased versatility in applications
Wave solder capable to 265°C, ensuring compatibility with high-temperature soldering processes
Rated for a maximum current capacity of 8 A, suitable for both power and signal circuits
Compliant with major industry standards, ensuring reliability and safety in use
Matte finish on the contact mating area enhances signal transmission and reliability
Keyed alignment simplifies the mating process and prevents errors during installation
Polyester GF housing material provides excellent mechanical strength and thermal stability
Compatible with a wide range of PCB designs for increased versatility in applications
Wave solder capable to 265°C, ensuring compatibility with high-temperature soldering processes
Rated for a maximum current capacity of 8 A, suitable for both power and signal circuits
Compliant with major industry standards, ensuring reliability and safety in use
