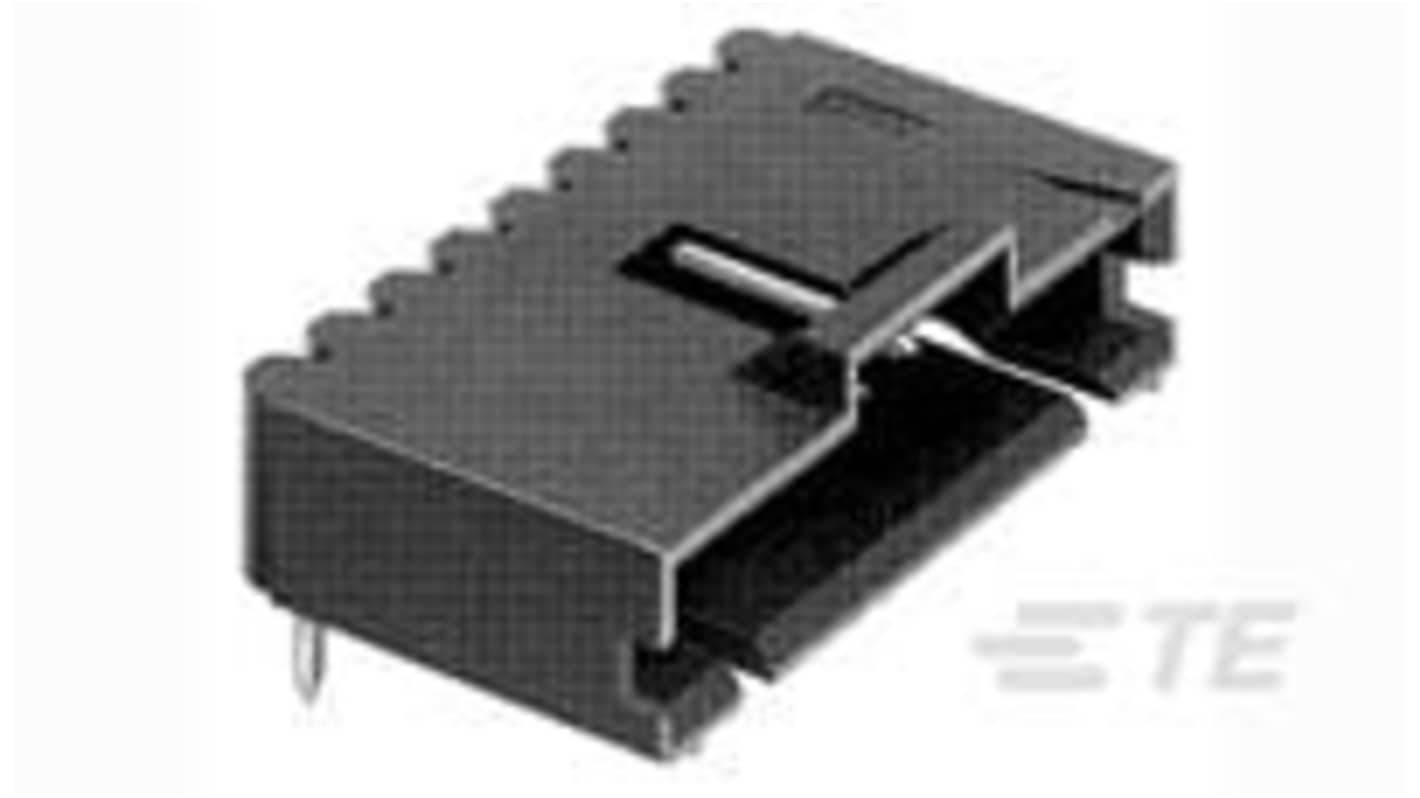

TE Connectivity 2-1036 Series Right Angle Board PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 467-464
- Mfr. Part No.:
- 2-103634-9
- Brand:
- TE Connectivity
Subtotal (1 tube of 280 units)*
£193.91
(exc. VAT)
£232.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £193.91 | £0.693 |
*price indicative
- RS Stock No.:
- 467-464
- Mfr. Part No.:
- 2-103634-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 2-1036 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 2 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Mating Pin Length | 5.84mm | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-53-744 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 2-1036 | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 2 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Mating Pin Length 5.84mm | ||
Voltage 60 V | ||
Distrelec Product Id 304-53-744 | ||
- COO (Country of Origin):
- US
The TE Connectivity Mount Header is meticulously designed to connect your wire-to-board applications with remarkable efficiency and reliability. Featuring a right-angle orientation and a compact configuration, it seamlessly integrates into various PCB designs. Its fully shrouded header type ensures optimal contact and stability, minimising the risk of connection errors during operation. With a robust construction, this header operates effectively in a wide temperature range, making it suitable for demanding environments. Crafted with premium materials and engineering excellence, this connector enhances the performance of your electronic devices, ensuring a secure and dependable connection every time.
Offers a right-angle orientation for space-saving installations
Comes with a fully shrouded header type to enhance contact protection
Engineered for signal applications, ensuring optimal data transmission
Built to accommodate high temperatures without compromising integrity
Constructed using thermoplastic housing for improved durability
Features polarised mating for simple and secure connections
Utilises high-quality materials for enhanced electrical performance
Facilitates easy through-hole solder termination for reliable assembly
Available in a convenient packaging quantity for efficient inventory management
