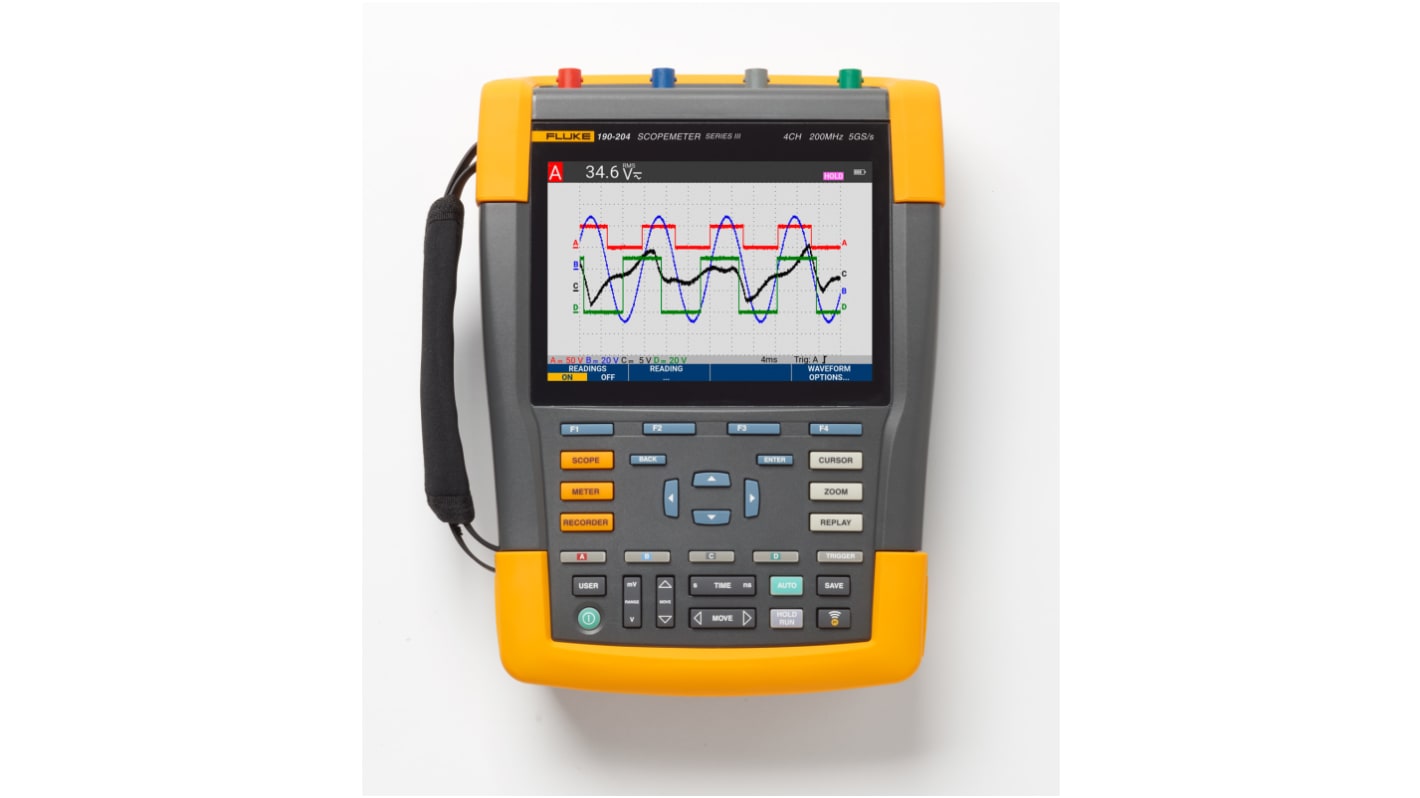

Fluke ScopeMeter III Series, 200 MHz Portable Oscilloscope, 4 Channels, UKAS

RS Stock No.:: 230-5781
Mfr. Part No.:: FLUKE-190-204-III-S
Brand:: Fluke

Fluke ScopeMeter III Series, 200 MHz Portable Oscilloscope, 4 Channels, UKAS

Subtotal (1 unit)*

£6,522.50

(exc. VAT)

£7,827.00

(inc. VAT)

FREE delivery for orders over £60.00

Limited stock

1 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£6,522.50

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 230-5781
Mfr. Part No.:: FLUKE-190-204-III-S
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope
	Bandwidth	200MHz
	Number of Channels	4
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Interface Type	USB
	Screen Size	6 in
	Series	ScopeMeter III
	Width	70mm
	Depth	192mm
	Height	265mm
	Standards/Approvals	No
	Power Source	Mains, Battery
	Safety Category Voltage	1000V
	Safety Category Level	CAT III, CAT IV
	Battery Life	7h
	Display Type	Colour Display Screen
	Vertical Resolution	8 bit
	Plug Type	USB
	Battery Type	Lithium-ion
	Minimum Vertical Sensitivity	2mV/div
	Calibrated	UKAS
	Maximum Time Base	4s/div
	Rise Time	1.7ns
	Maximum Vertical Sensitivity	100V/div
	Minimum Time Base	2ns/div

	Select all
	Brand Fluke
	Product Type Oscilloscope
	Bandwidth 200MHz
	Number of Channels 4
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Interface Type USB
	Screen Size 6 in
	Series ScopeMeter III
	Width 70mm
	Depth 192mm
	Height 265mm
	Standards/Approvals No
	Power Source Mains, Battery
	Safety Category Voltage 1000V
	Safety Category Level CAT III, CAT IV
	Battery Life 7h
	Display Type Colour Display Screen
	Vertical Resolution 8 bit
	Plug Type USB
	Battery Type Lithium-ion
	Minimum Vertical Sensitivity 2mV/div
	Calibrated UKAS
	Maximum Time Base 4s/div
	Rise Time 1.7ns
	Maximum Vertical Sensitivity 100V/div
	Minimum Time Base 2ns/div

Datasheet - FLUKE-190-204-III-S

COO (Country of Origin):: RO

Fluke ScopeMeter III Series Oscilloscope, 200 MHz Bandwidth, 4 Analogue Channels - FLUKE-190-204-III-S

This oscilloscope is a high-performance digital storage device designed for various applications in the electrical and electronics sectors. With a bandwidth of 200MHz and the Ability to capture signals through four analogue channels, this portable oscilloscope ensures precision and reliAbility. It measures 265 x 192 x 70 mm, making it an Ideal choice for fieldwork. The unit is powered by a rechargeable Li-ion battery, providing flexibility in use.

Features & Benefits

• 1.25 Gsps sampling rate captures Rapid signal changes effectively
• Battery powered for convenience in remote locations
• USB Interface allows easy data transfer and connection to a PC
• High memory depth of 30 kpts enables intricate signal analysis
• Vertical resolution of 8 bits ensures accurate waveform representation
• Safety rated for CAT III 1000V and CAT IV 600V, ensuring usability in high-voltage environments

Applications

• Used for capturing transient signals in electrical circuits
• Ideal for maintenance and troubleshooting in automation systems
• Suitable for testing and validation of power electronic devices
• Utilised in research and development within the mechanical industry
• Perfect for educational institutions focusing on electronics labs

What is the maximum time base of this device?

The maximum time base is 4 s/div, allowing for detailed analysis of long-duration signals.

How does the input impedance affect the oscilloscope's performance?

The input impedance of 1 MΩ ensures minimal loading on the circuit under test, maintaining signal integrity.

Can this unit handle complex signal patterns?

Yes, with its 200MHz bandwidth and four channels, the oscilloscope can effectively handle complex waveforms and capture multiple signals simultaneously.

What type of display does it utilise for visualisation of data?

It features an LCD display measuring 133 x 90 mm, providing clear visibility of waveforms and measurements.
