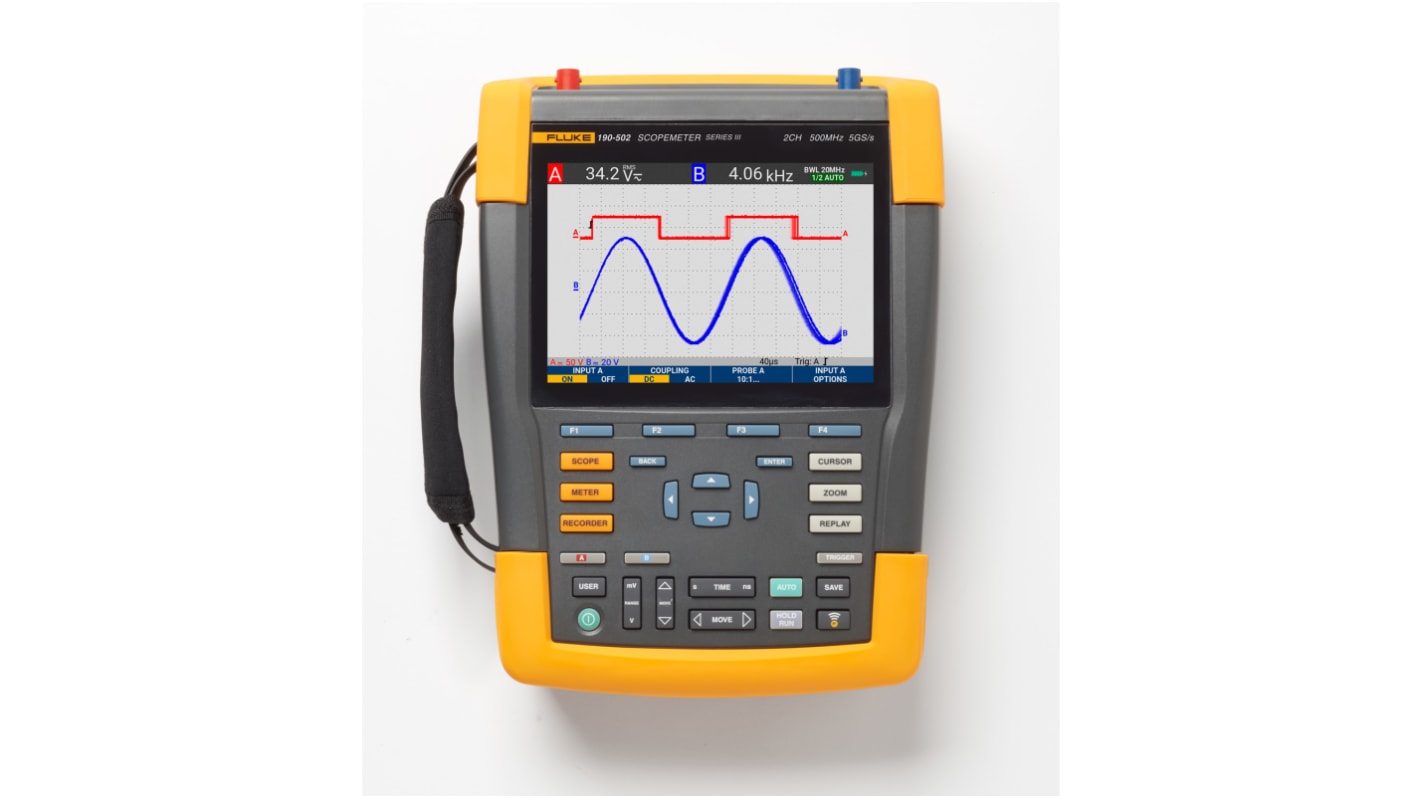

Fluke III Series, 500 MHz Portable Oscilloscope, 2 Channels - UKAS

RS Stock No.:: 230-5793
Mfr. Part No.:: FLUKE-190-502-III-S
Brand:: Fluke

Fluke III Series, 500 MHz Portable Oscilloscope, 2 Channels - UKAS

Subtotal (1 unit)*

£6,805.50

(exc. VAT)

£8,166.60

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£6,805.50

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 230-5793
Mfr. Part No.:: FLUKE-190-502-III-S
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope
	Bandwidth	500MHz
	Number of Channels	2
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Interface Type	USB
	Screen Size	6 in
	Series	III
	Width	70mm
	Height	192mm
	Standards/Approvals	No
	Safety Category Voltage	1000V
	Power Source	Mains, Battery
	Safety Category Level	CAT III, CAT IV
	Battery Life	7h
	Display Type	Colour Display Screen
	Vertical Resolution	8 bit
	Calibrated	UKAS
	Maximum Time Base	4s/div
	Plug Type	USB
	Battery Type	Lithium-ion
	Minimum Vertical Sensitivity	2mV/div
	Rise Time	0.7ns
	Maximum Vertical Sensitivity	100V/div
	Minimum Time Base	1ns/div

	Select all
	Brand Fluke
	Product Type Oscilloscope
	Bandwidth 500MHz
	Number of Channels 2
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Interface Type USB
	Screen Size 6 in
	Series III
	Width 70mm
	Height 192mm
	Standards/Approvals No
	Safety Category Voltage 1000V
	Power Source Mains, Battery
	Safety Category Level CAT III, CAT IV
	Battery Life 7h
	Display Type Colour Display Screen
	Vertical Resolution 8 bit
	Calibrated UKAS
	Maximum Time Base 4s/div
	Plug Type USB
	Battery Type Lithium-ion
	Minimum Vertical Sensitivity 2mV/div
	Rise Time 0.7ns
	Maximum Vertical Sensitivity 100V/div
	Minimum Time Base 1ns/div

Datasheet - FLUKE-190-502-III-S

COO (Country of Origin):: RO

Fluke ScopeMeter III Series Oscilloscope, 500 MHz Bandwidth, 2 Analogue Channels - FLUKE-190-502-III-S

This portable digital storage oscilloscope is designed for professionals in the fields of automation, electronics, and mechanical engineering. With a bandwidth of 500MHz and two analogue channels, it provides exceptional performance for both Basic and Advanced applications. Measuring just 265 x 192 x 70 mm and weighing 2.1kg, this Compact device is easy to transport and handle. It features a user-friendly USB Interface for seamless connectivity.

Features & Benefits

• 2 channel configuration allows for simultaneous viewing of signals
• High sample rate of 5 Gsps ensures precise data capturing
• 30kpts memory depth supports detailed waveform storage
• Battery-powered design offers flexibility for field use
• Minimum vertical sensitivity of 20mV for fine measurements

Applications

• Used for troubleshooting in electrical installations
• Effective in auto repair diagnostics for signal analysis
• Utilised in research and development for waveform capture
• Ideal for testing high voltage in various environments

What power source should I use for this device when working in the field?

The device operates using a Li-ion battery, providing a convenient battery-powered option for fieldwork, ensuring flexibility and portability during use.

How is signal accuracy maintained during high-frequency measurements?

The oscilloscope's 500MHz bandwidth and high sample rate of 5 Gsps ensure that even fast-changing signals are accurately captured, enabling reliable analysis.

Can I connect it to a computer for data transfer?

Yes, the oscilloscope includes a USB Interface which facilitates an easy connection to computers for data transfer and analysis, enhancing usability in various settings.

What is the maximum input voltage this device can handle?

The oscilloscope is rated for a maximum safety category voltage of 1000V, making it suitable for high voltage applications while ensuring user safety.
