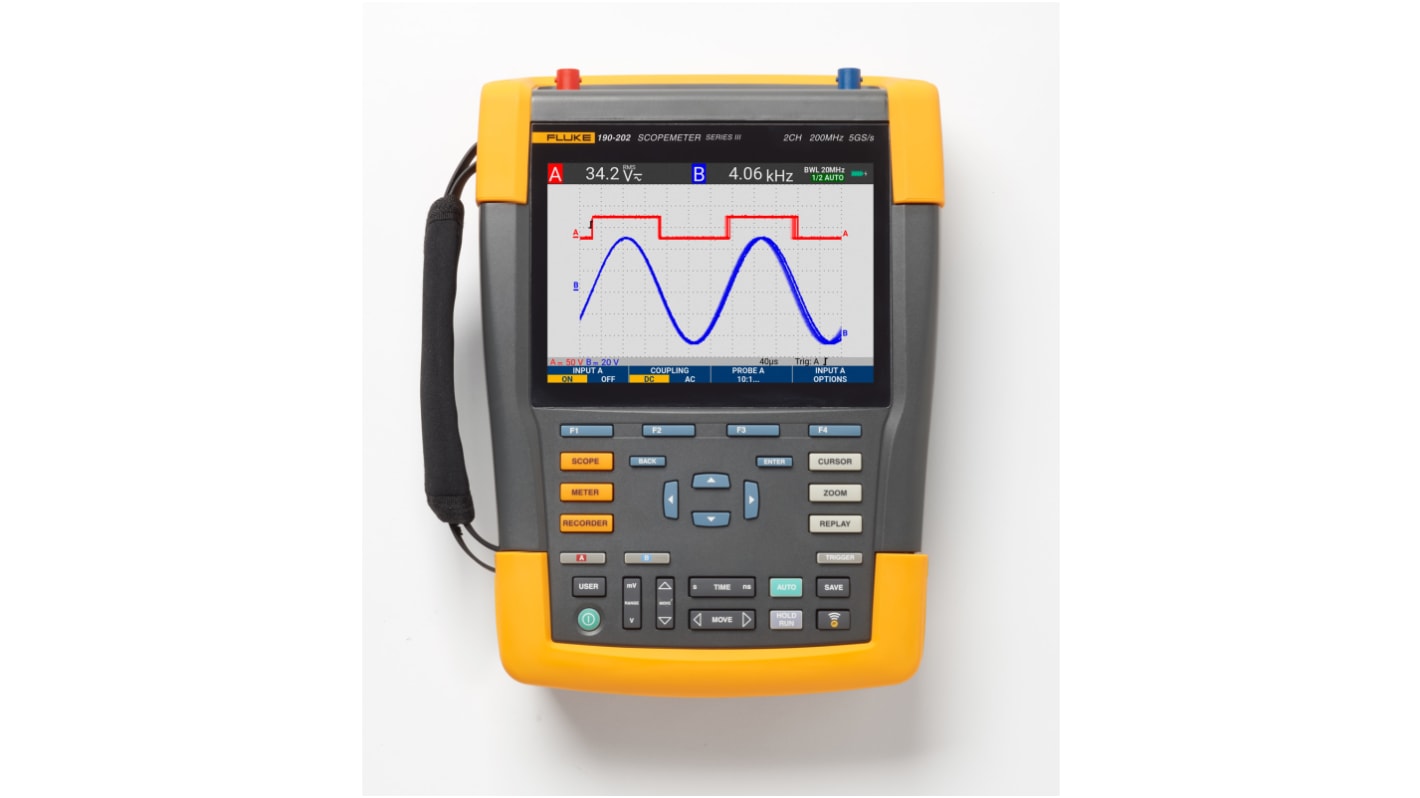

Fluke ScopeMeter III Series, 200 MHz Portable Oscilloscope, 2 Channels, UKAS
- RS Stock No.:
- 230-5768
- Mfr. Part No.:
- FLUKE-190-202-III-S
- Brand:
- Fluke
Subtotal (1 unit)*
£5,984.00
(exc. VAT)
£7,180.80
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 1 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5,984.00 |
*price indicative
- RS Stock No.:
- 230-5768
- Mfr. Part No.:
- FLUKE-190-202-III-S
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Oscilloscope | |
| Bandwidth | 200MHz | |
| Number of Channels | 2 | |
| Oscilloscope Type | Portable | |
| Oscilloscope Form | Digital Storage | |
| Interface Type | USB | |
| Memory Depth | 30kpts | |
| Screen Size | 6 in | |
| Series | ScopeMeter III | |
| Depth | 192mm | |
| Standards/Approvals | No | |
| Width | 70mm | |
| Height | 265mm | |
| Safety Category Level | CAT III, CAT IV | |
| Power Source | Mains, Battery | |
| Battery Type | Rechargeable Lithium-ion | |
| Safety Category Voltage | 1000V | |
| Plug Type | USB | |
| Calibrated | UKAS | |
| Vertical Resolution | 8 bit | |
| Display Type | LCD | |
| Maximum Vertical Sensitivity | 100V/div | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Maximum Time Base | 4s/div | |
| Rise Time | 1.7ns | |
| Minimum Time Base | 2ns/div | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Oscilloscope | ||
Bandwidth 200MHz | ||
Number of Channels 2 | ||
Oscilloscope Type Portable | ||
Oscilloscope Form Digital Storage | ||
Interface Type USB | ||
Memory Depth 30kpts | ||
Screen Size 6 in | ||
Series ScopeMeter III | ||
Depth 192mm | ||
Standards/Approvals No | ||
Width 70mm | ||
Height 265mm | ||
Safety Category Level CAT III, CAT IV | ||
Power Source Mains, Battery | ||
Battery Type Rechargeable Lithium-ion | ||
Safety Category Voltage 1000V | ||
Plug Type USB | ||
Calibrated UKAS | ||
Vertical Resolution 8 bit | ||
Display Type LCD | ||
Maximum Vertical Sensitivity 100V/div | ||
Minimum Vertical Sensitivity 2mV/div | ||
Maximum Time Base 4s/div | ||
Rise Time 1.7ns | ||
Minimum Time Base 2ns/div | ||
- COO (Country of Origin):
- RO
Fluke ScopeMeter III Series Oscilloscope, 200 MHz Bandwidth, 30kpts Memory Depth - FLUKE-190-202-III-S
This portable digital oscilloscope is designed for professionals in the fields of automation, electronics, and the electrical and mechanical industries. With a bandwidth of 200MHz and dimensions of 265 x 192 x 70 mm, this digital storage device offers superb performance in various applications. It features a user-friendly LCD display and operates on a battery power source, making it Ideal for on-site measurements.
Features & Benefits
• 2 channel input provides flexibility for multiple signals
• 30kpts memory depth ensures detailed waveform capture
• USB Interface simplifies data transfer and connectivity
• Compact and lightweight design at 2.1kg for portability
• 30kpts memory depth ensures detailed waveform capture
• USB Interface simplifies data transfer and connectivity
• Compact and lightweight design at 2.1kg for portability
Applications
• Used for troubleshooting electrical circuits and components
• Ideal for analysing complex signals in automation systems
• Suitable for verifying performance in mechanical devices
• Utilised in educational settings for hands-on training
• Effective in field tests due to its battery-powered capability
• Ideal for analysing complex signals in automation systems
• Suitable for verifying performance in mechanical devices
• Utilised in educational settings for hands-on training
• Effective in field tests due to its battery-powered capability
What is the significance of the 200 MHz bandwidth in practical applications?
A 200MHz bandwidth allows for the analysis of high-frequency signals, making it suitable for tasks like testing RF circuits or evaluating fast digital signals.
How does the 30kpts memory depth enhance usability during diagnostics?
The 30kpts memory depth allows for the capturing of intricate waveforms, enabling in-depth analysis and accurate representation of complex signals during diagnostic tests.
What kind of impedance does it have, and why is that important?
It features a 1MΩ input impedance, which is essential for preventing loading effects that could distort measurements when connecting to different circuits.
How does the high-speed sampling rate affect signal fidelity?
The 2.5 Gsps sampling rate helps maintain signal integrity by capturing fast transient signals accurately, which is critical for detailed analysis and troubleshooting.
