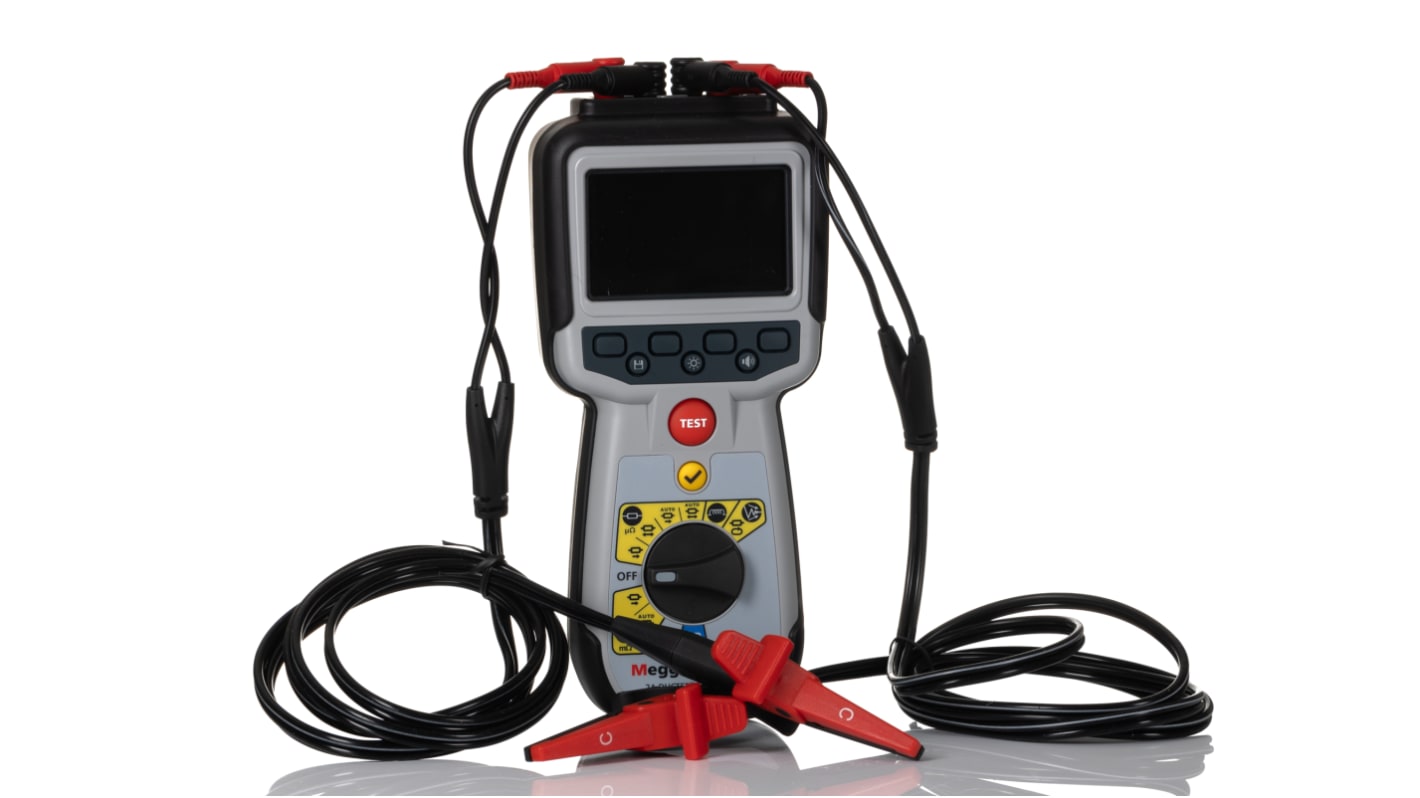

Megger Handheld Ohmmeter, 3.2 Ω Max, 100mΩ Resolution, Low Resistance
- RS Stock No.:
- 265-5896
- Mfr. Part No.:
- 1013-795
- Brand:
- Megger
Subtotal (1 unit)*
£3,061.92
(exc. VAT)
£3,674.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,061.92 |
*price indicative
- RS Stock No.:
- 265-5896
- Mfr. Part No.:
- 1013-795
- Brand:
- Megger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Megger | |
Maximum Resistance Measurement | 3.2 Ω | |
Resistance Measurement Resolution | 100mΩ | |
Measurement Type | Low Resistance | |
Battery Life | 1000 Tests | |
Battery Type | HR6 NiMH | |
Power Source | Battery | |
Handheld | Yes | |
Dimensions | 228 x 105 x 75mm | |
Weight | 905g | |
Height | 105mm | |
Length | 228mm | |
Maximum Operating Temperature | +50°C | |
Width | 75mm | |
Minimum Operating Temperature | 0°C | |
Plug Type | Australia, Europe, UK, US | |
Select all | ||
---|---|---|
Brand Megger | ||
Maximum Resistance Measurement 3.2 Ω | ||
Resistance Measurement Resolution 100mΩ | ||
Measurement Type Low Resistance | ||
Battery Life 1000 Tests | ||
Battery Type HR6 NiMH | ||
Power Source Battery | ||
Handheld Yes | ||
Dimensions 228 x 105 x 75mm | ||
Weight 905g | ||
Height 105mm | ||
Length 228mm | ||
Maximum Operating Temperature +50°C | ||
Width 75mm | ||
Minimum Operating Temperature 0°C | ||
Plug Type Australia, Europe, UK, US | ||
- COO (Country of Origin):
- GB
Megger Ohmmeter, 1μΩ to 0.1Ω Test Resolution Range, 1mA to 2A Test Current Range - DLRO2 Series - 1013-795
For flexibility in your resistance readings, go for this Megger ohmmeter. It performs normal or inductive tests for low resistances of up to 15,000μΩ with a sharp 1μΩ resolution but can also handle large loads of up to 2,000Ω. The component's built-in noise-rejection mode limits interference to ensure accuracy and keep your measurements spot on. Results are easy to read on the full-colour LCD screen, which has an adjustable backlight for use in poorly lit areas.
Features & Benefits
• USB compatibility lets you transfer data to a PC
• Integrated storage for up to 8 million sets of test results to safeguard your information
• Compact measurements of 228 (L) x 105 (W) x 75mm (H) for portability
• Battery lasts for over 1000 bi-directional tests, so you can use it for repeat testing applications
• IP54 rating for partial dust protection and resistance to water sprays from any direction
• Integrated storage for up to 8 million sets of test results to safeguard your information
• Compact measurements of 228 (L) x 105 (W) x 75mm (H) for portability
• Battery lasts for over 1000 bi-directional tests, so you can use it for repeat testing applications
• IP54 rating for partial dust protection and resistance to water sprays from any direction
Applications
• Measurement and instrumentation
• Industrial control networks
• Electrical repair and maintenance
• Renewable energy sector
• Industrial control networks
• Electrical repair and maintenance
• Renewable energy sector
What's the operating temperature range of this device?
This hardy component withstands ambient temperatures between 0°C and +50°C, suiting use in demanding environments.
