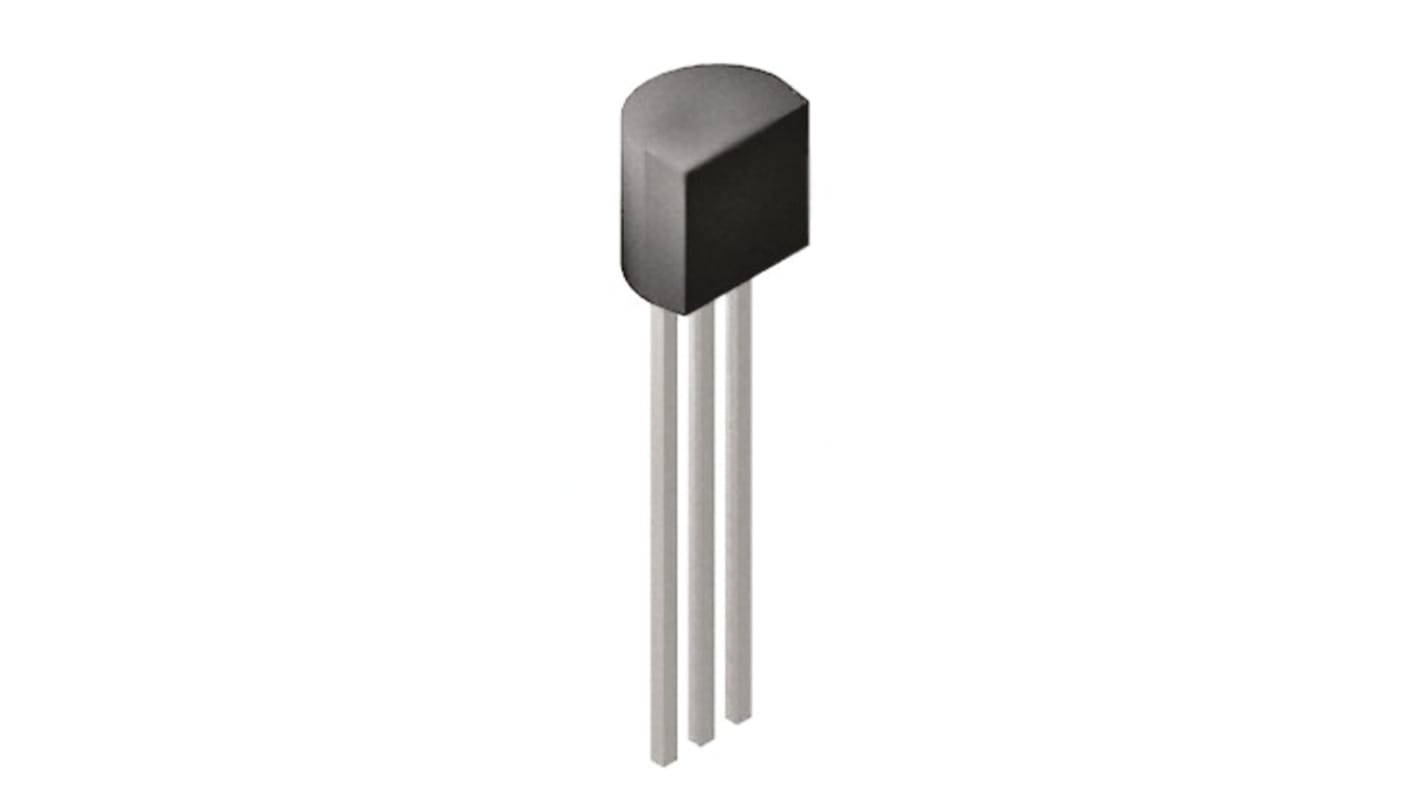

Microchip DN2530 Type N-Channel MOSFET, 170 mA, 300 V Depletion, 3-Pin TO-92 DN2530N3-G
- RS Stock No.:
- 829-3320
- Mfr. Part No.:
- DN2530N3-G
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.77
(exc. VAT)
£6.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 710 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 20 | £0.577 | £5.77 |
| 30 - 90 | £0.548 | £5.48 |
| 100 + | £0.507 | £5.07 |
*price indicative
- RS Stock No.:
- 829-3320
- Mfr. Part No.:
- DN2530N3-G
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 170mA | |
| Maximum Drain Source Voltage Vds | 300V | |
| Package Type | TO-92 | |
| Series | DN2530 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 12Ω | |
| Channel Mode | Depletion | |
| Forward Voltage Vf | 1.8V | |
| Maximum Power Dissipation Pd | 740mW | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 5.2mm | |
| Width | 4.19 mm | |
| Height | 5.33mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 170mA | ||
Maximum Drain Source Voltage Vds 300V | ||
Package Type TO-92 | ||
Series DN2530 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 12Ω | ||
Channel Mode Depletion | ||
Forward Voltage Vf 1.8V | ||
Maximum Power Dissipation Pd 740mW | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 5.2mm | ||
Width 4.19 mm | ||
Height 5.33mm | ||
Automotive Standard No | ||
Supertex N-Channel Depletion Mode MOSFET Transistors
The Supertex range of N-channel depletion-mode DMOS FET transistors from Microchip are suited to applications requiring high breakdown voltage, high input impedance, low input capacitance and fast switching speeds.
Features
High input impedance
Low input capacitance
Fast switching speeds
Low on-resistance
Free from secondary breakdown
Low input and output leakage
Typical Applications
Normally-on switches
Solid state relays
Converters
Linear amplifiers
Constant current sources
Power supply circuits
Telecoms
MOSFET Transistors, Microchip
