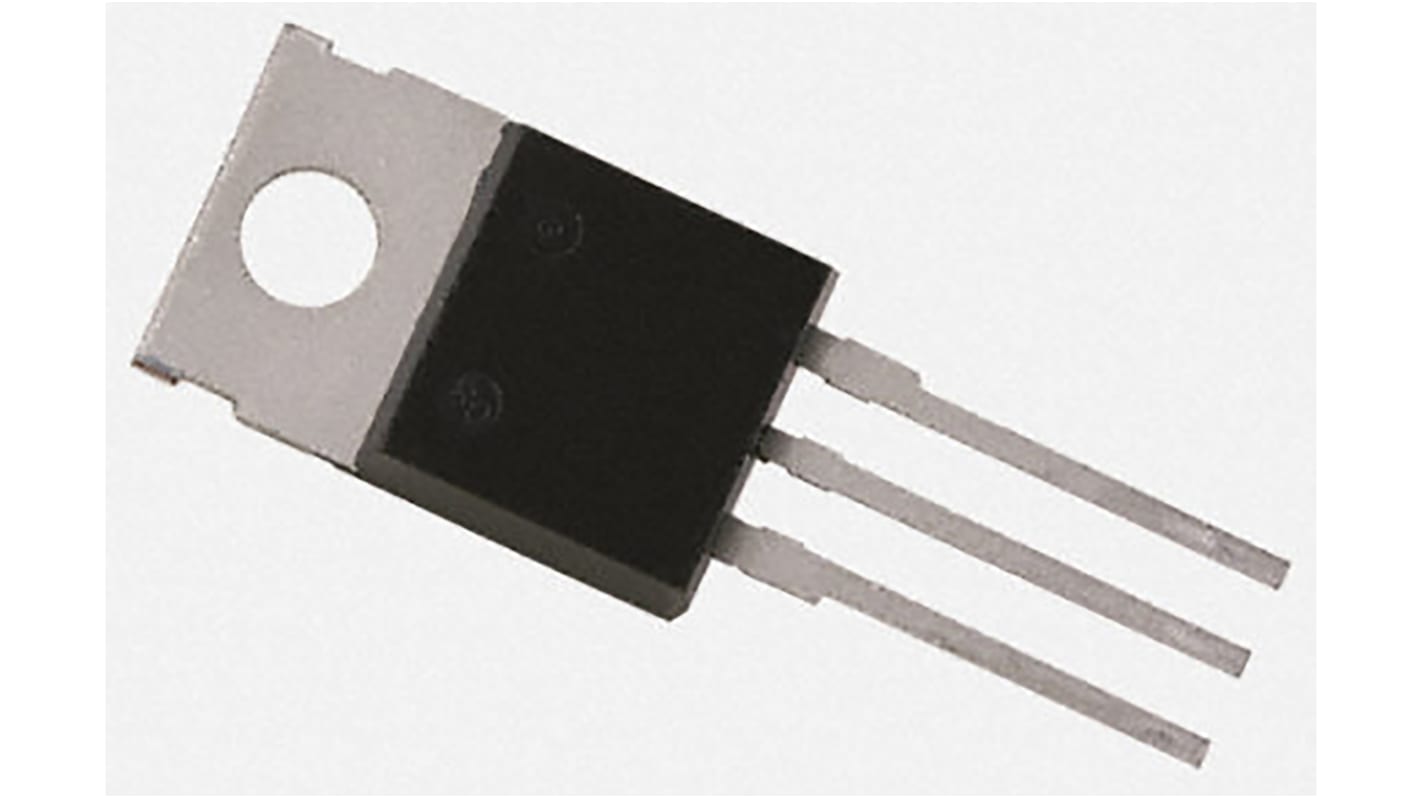

onsemi Type N-Channel MOSFET, 76 A, 100 V Enhancement, 3-Pin TO-220 NTP6410ANG
- RS Stock No.:
- 802-4105
- Mfr. Part No.:
- NTP6410ANG
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£15.97
(exc. VAT)
£19.165
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.194 | £15.97 |
*price indicative
- RS Stock No.:
- 802-4105
- Mfr. Part No.:
- NTP6410ANG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 76A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 13mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.3V | |
| Maximum Power Dissipation Pd | 188W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 120nC | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Height | 4.82mm | |
| Width | 15.75 mm | |
| Length | 10.28mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 76A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 13mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.3V | ||
Maximum Power Dissipation Pd 188W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 120nC | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Height 4.82mm | ||
Width 15.75 mm | ||
Length 10.28mm | ||
Automotive Standard AEC-Q101 | ||
N-Channel Power MOSFET, 100V to 1700V, ON Semiconductor
MOSFET Transistors, ON Semiconductor
