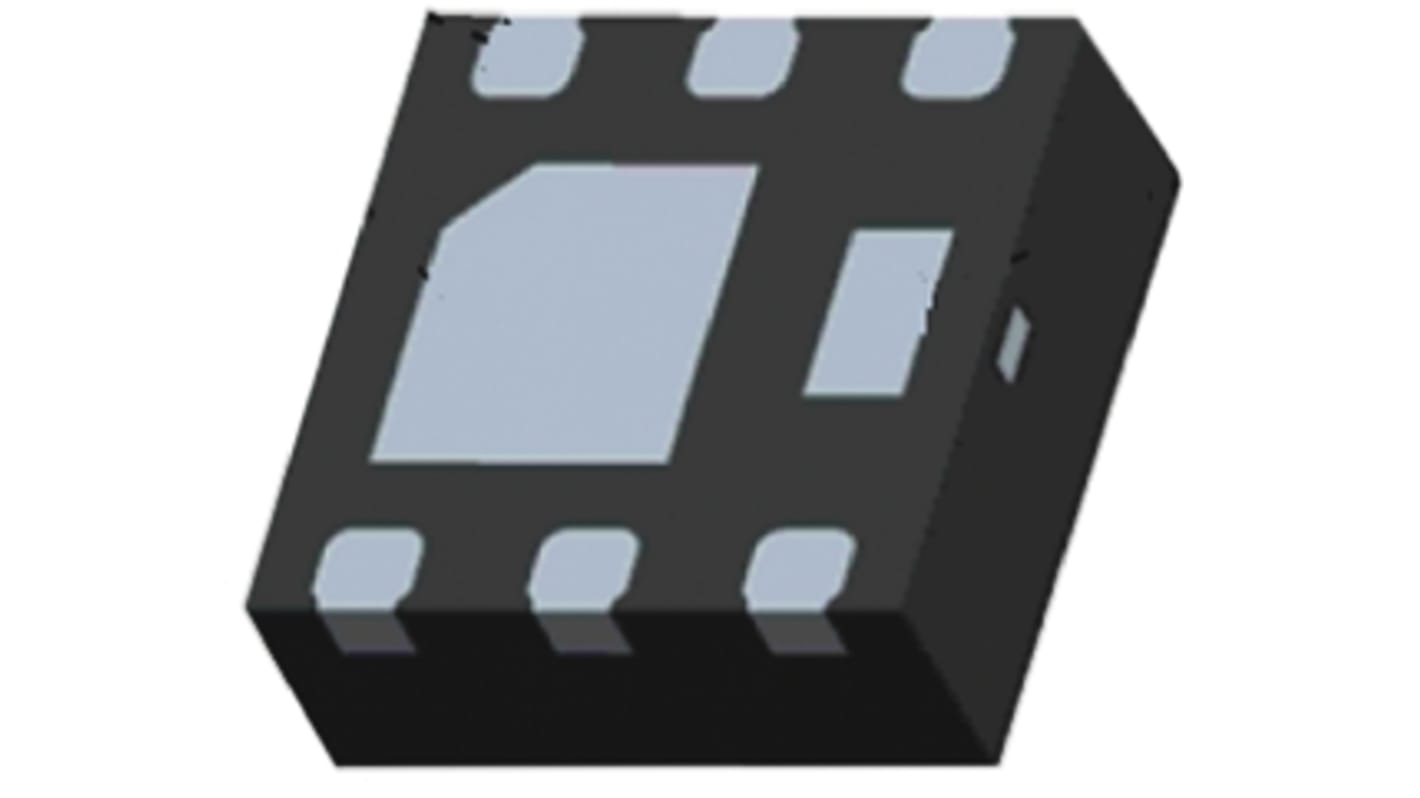

onsemi PowerTrench N-Channel MOSFET, 9.5 A, 20 V, 6-Pin MicroFET 2 x 2 FDMA410NZ
- RS Stock No.:
- 739-6241
- Mfr. Part No.:
- FDMA410NZ
- Brand:
- onsemi
Save 40% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£4.64
(exc. VAT)
£5.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.928 | £4.64 |
| 50 - 95 | £0.80 | £4.00 |
| 100 - 495 | £0.694 | £3.47 |
| 500 - 995 | £0.61 | £3.05 |
| 1000 + | £0.554 | £2.77 |
*price indicative
- RS Stock No.:
- 739-6241
- Mfr. Part No.:
- FDMA410NZ
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 9.5 A | |
| Maximum Drain Source Voltage | 20 V | |
| Series | PowerTrench | |
| Package Type | MicroFET 2 x 2 | |
| Mounting Type | Surface Mount | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance | 50 mΩ | |
| Channel Mode | Enhancement | |
| Minimum Gate Threshold Voltage | 0.4V | |
| Maximum Power Dissipation | 900 mW | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -8 V, +8 V | |
| Typical Gate Charge @ Vgs | 10 nC @ 4.5 V | |
| Width | 2mm | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
| Length | 2mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.75mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 9.5 A | ||
Maximum Drain Source Voltage 20 V | ||
Series PowerTrench | ||
Package Type MicroFET 2 x 2 | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Maximum Drain Source Resistance 50 mΩ | ||
Channel Mode Enhancement | ||
Minimum Gate Threshold Voltage 0.4V | ||
Maximum Power Dissipation 900 mW | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -8 V, +8 V | ||
Typical Gate Charge @ Vgs 10 nC @ 4.5 V | ||
Width 2mm | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
Length 2mm | ||
Maximum Operating Temperature +150 °C | ||
Height 0.75mm | ||
Minimum Operating Temperature -55 °C | ||
PowerTrench® N-Channel MOSFET, up to 9.9A, Fairchild Semiconductor
MOSFET Transistors, ON Semi
ON Semi offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V) types. The advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.
ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
