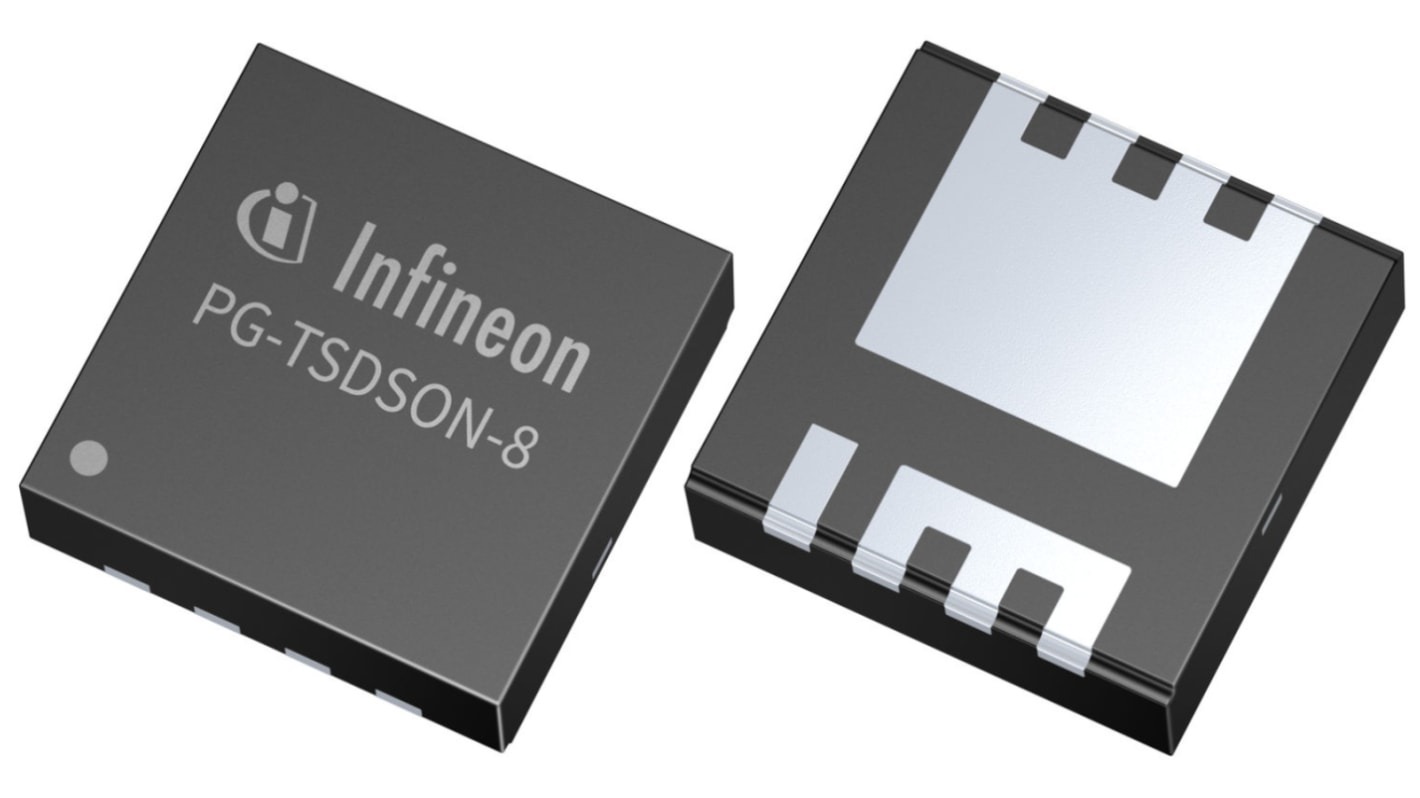

Infineon ISZ Type N-Channel MOSFET, 40 A, 30 V Enhancement, 8-Pin PG-TSDSON-8FL ISZ019N03L5SATMA1

RS Stock No.:: 273-5358
Mfr. Part No.:: ISZ019N03L5SATMA1
Brand:: Infineon

Infineon ISZ Type N-Channel MOSFET, 40 A, 30 V Enhancement, 8-Pin PG-TSDSON-8FL ISZ019N03L5SATMA1

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 273-5358
Mfr. Part No.:: ISZ019N03L5SATMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	40A
	Maximum Drain Source Voltage Vds	30V
	Package Type	PG-TSDSON-8FL
	Series	ISZ
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	1.9mΩ
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	44nC
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	20 V
	Forward Voltage Vf	1V
	Maximum Operating Temperature	150°C
	Standards/Approvals	IEC61249-2-21, JEDEC Standard, RoHS

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 40A
	Maximum Drain Source Voltage Vds 30V
	Package Type PG-TSDSON-8FL
	Series ISZ
	Mount Type Surface
	Pin Count 8
	Maximum Drain Source Resistance Rds 1.9mΩ
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 44nC
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 20 V
	Forward Voltage Vf 1V
	Maximum Operating Temperature 150°C
	Standards/Approvals IEC61249-2-21, JEDEC Standard, RoHS

Datasheet - ISZ019N03L5SATMA1

The Infineon Power MOSFET is an optimized for high performance buck converter. This power MOSFET has an excellent gate charge. It has very low on resistance and qualified according to JEDEC standard.

Halogen free

RoHS compliant

Pb free lead plating

Superior thermal resistance
