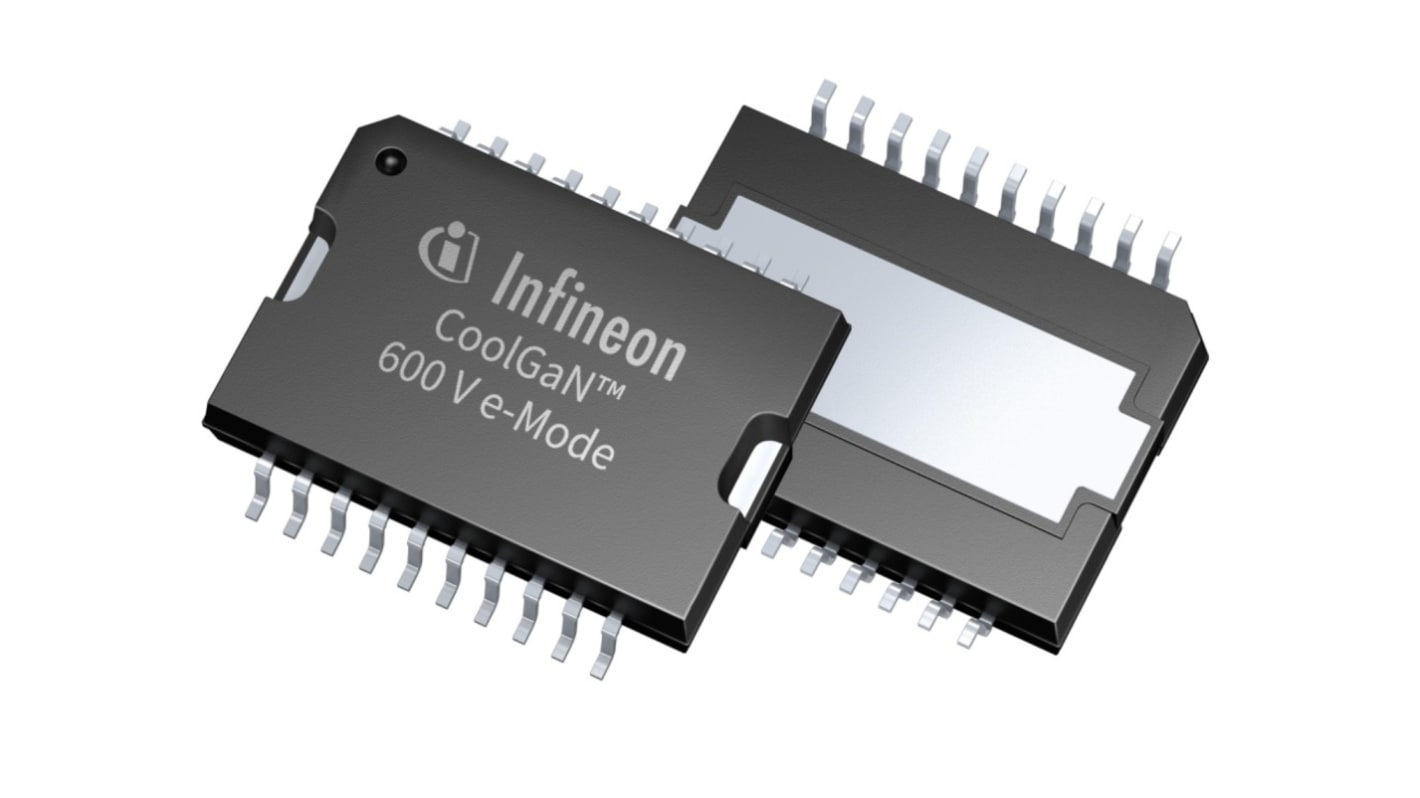

Infineon GaN MOSFET, 60 A, 600 V, 20-Pin DSO IGO60R070D1AUMA2
- RS Stock No.:
- 273-2751
- Mfr. Part No.:
- IGO60R070D1AUMA2
- Brand:
- Infineon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 273-2751
- Mfr. Part No.:
- IGO60R070D1AUMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Drain Current | 60 A | |
| Maximum Drain Source Voltage | 600 V | |
| Package Type | DSO | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Channel Mode | Enhancement | |
| Transistor Material | GaN | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Drain Current 60 A | ||
Maximum Drain Source Voltage 600 V | ||
Package Type DSO | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Channel Mode Enhancement | ||
Transistor Material GaN | ||
Number of Elements per Chip 1 | ||
The Infineon Power Transistor is a Gallium nitride CoolGaN™ 600V enhancement mode power transistor. This power transistor offers fast turn on and turn off speed, minimum switching losses and enables simple half bridge topologies with highest efficiency. The gallium nitride CoolGaN™ 600V series is qualified according to a comprehensive GaN tailored qualification well beyond existing standards. It addresses Datacom and server SMPS, telecom as well as adapter, charger, wireless charging and numerous other applications that demand highest efficiency or power density.
Reduces EMI
System cost reduction savings
Capable of reverse conduction
Superior commutation ruggedness
Enables higher operating frequency
Low gate charge and low output charge
System cost reduction savings
Capable of reverse conduction
Superior commutation ruggedness
Enables higher operating frequency
Low gate charge and low output charge
