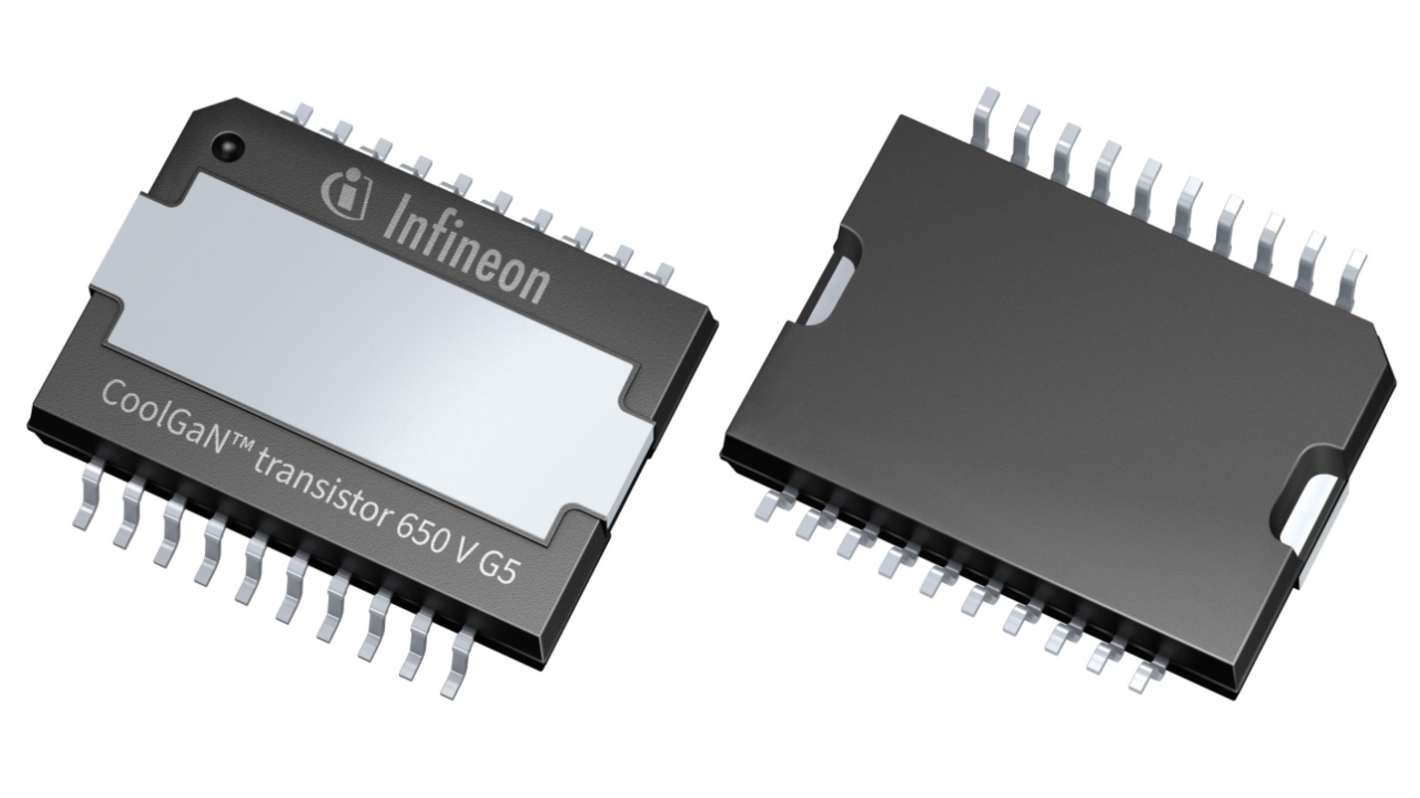

Infineon IGOT65 Type N-Channel MOSFET, 34 A, 650 V Enhancement, 20-Pin PG-DSO-20 IGOT65R045D2AUMA1
- RS Stock No.:
- 351-880
- Mfr. Part No.:
- IGOT65R045D2AUMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£6.69
(exc. VAT)
£8.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 799 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.69 |
| 10 - 99 | £6.02 |
| 100 - 499 | £5.55 |
| 500 - 999 | £5.15 |
| 1000 + | £4.62 |
*price indicative
- RS Stock No.:
- 351-880
- Mfr. Part No.:
- IGOT65R045D2AUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 34A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | PG-DSO-20 | |
| Series | IGOT65 | |
| Mount Type | Surface | |
| Pin Count | 20 | |
| Maximum Drain Source Resistance Rds | 0.054Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 109W | |
| Typical Gate Charge Qg @ Vgs | 6nC | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | JEDEC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 34A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type PG-DSO-20 | ||
Series IGOT65 | ||
Mount Type Surface | ||
Pin Count 20 | ||
Maximum Drain Source Resistance Rds 0.054Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 109W | ||
Typical Gate Charge Qg @ Vgs 6nC | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals JEDEC | ||
Automotive Standard No | ||
- COO (Country of Origin):
- ID
The Infineon GaN power transistor allows for increased efficiency at high-frequency operation. As part of the CoolGaN 650 V G5 family, it meets the highest quality standards, enabling highly reliable designs with superior efficiency. Housed in a top-side cooled DSO package, it is designed for optimal power dissipation in various industrial applications.
650 V e-mode power transistor
Ultrafast switching
No reverse-recovery charge
Capable of reverse conduction
Low gate charge, low output charge
Superior commutation ruggedness
Low dynamic RDS(on)
High ESD robustness: 2 kV HBM - 1 kV CDM
Top-side cooled package
JEDEC qualified (JESD47, JESD22)
