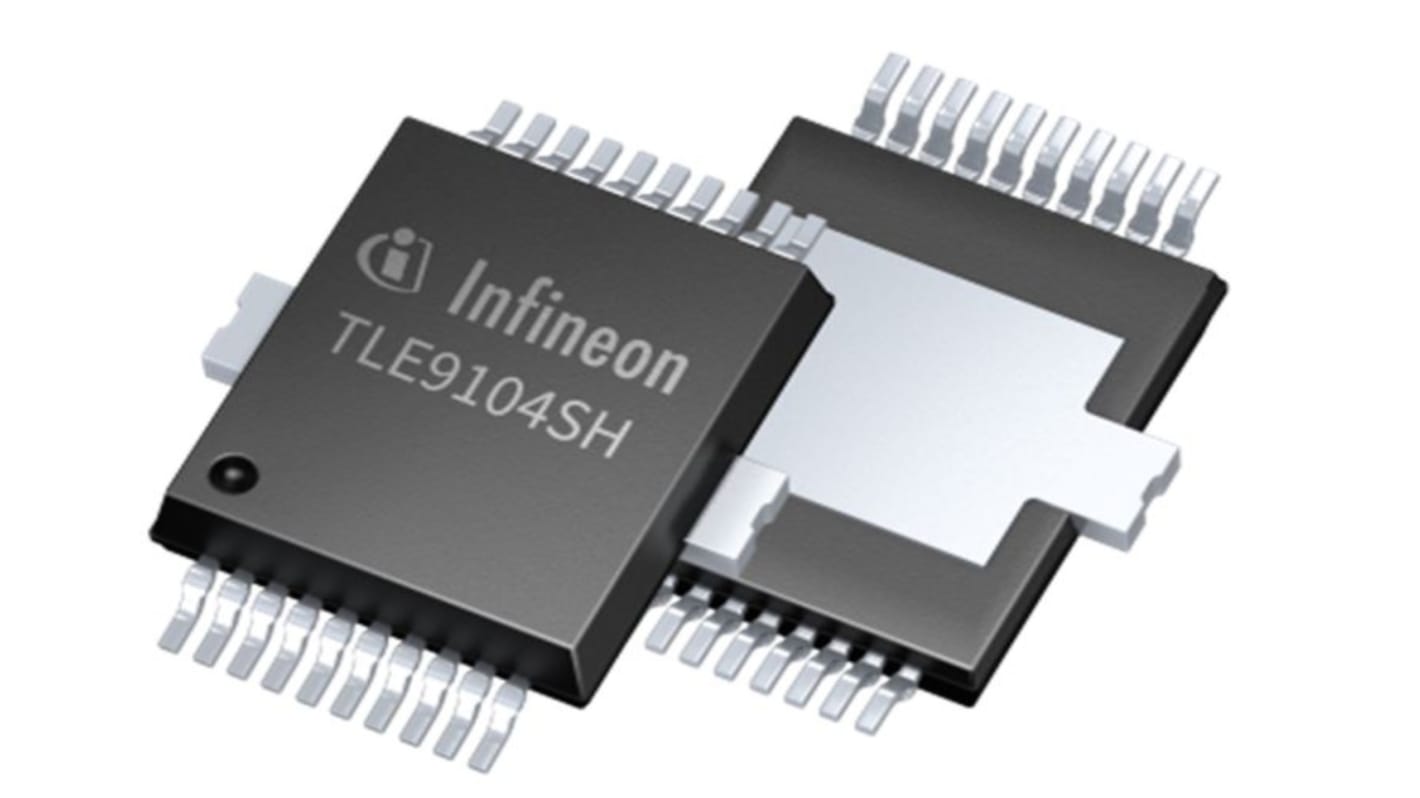

Infineon Low Side, Powertrain Switch Power Switch IC 20-Pin, PG-DSO-20

RS Stock No.:: 242-5831
Mfr. Part No.:: TLE9104SHXUMA1
Brand:: Infineon

Infineon Low Side, Powertrain Switch Power Switch IC 20-Pin, PG-DSO-20

Subtotal (1 reel of 1000 units)*

£2,070.00

(exc. VAT)

£2,480.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

4,000 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 +	£2.07	£2,070.00

*price indicative

RS Stock No.:: 242-5831
Mfr. Part No.:: TLE9104SHXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Switch Type	Powertrain Switch
	Product Type	Power Switch IC
	Power Switch Topology	Low Side
	Switch On Resistance RdsOn	150mΩ
	Number of Outputs	4
	Interface Type	Serial
	Mount Type	Surface
	Minimum Supply Voltage	3V
	Package Type	PG-DSO-20
	Pin Count	20
	Maximum Supply Voltage	5V
	Maximum Operating Temperature	150°C
	Minimum Operating Temperature	-40°C
	Operating Current	5A
	Width	6.4mm
	Standards/Approvals	RoHS
	Length	7.5mm
	Height	2.35mm
	Automotive Standard	AEC-Q101, AEC-Q100
	Series	TLE9104SH

	Select all
	Brand Infineon
	Power Switch Type Powertrain Switch
	Product Type Power Switch IC
	Power Switch Topology Low Side
	Switch On Resistance RdsOn 150mΩ
	Number of Outputs 4
	Interface Type Serial
	Mount Type Surface
	Minimum Supply Voltage 3V
	Package Type PG-DSO-20
	Pin Count 20
	Maximum Supply Voltage 5V
	Maximum Operating Temperature 150°C
	Minimum Operating Temperature -40°C
	Operating Current 5A
	Width 6.4mm
	Standards/Approvals RoHS
	Length 7.5mm
	Height 2.35mm
	Automotive Standard AEC-Q101, AEC-Q100
	Series TLE9104SH

Datasheet - TLE9104SHXUMA1

Infineon TLE9104SH Series Power Switch IC, 5V Maximum Supply Voltage, 5A Operating Current - TLE9104SHXUMA1

This power switch IC is a low-side powertrain switch designed for automotive electrical control, providing four individually controlled outputs and a serial control Interface for system integration. It operates within a 3-5 V supply range and is constructed for surface mounting in a PG-DSO-20 package. The device is intended for use in demanding vehicular environments where multiple load channels are required.

Features and Benefits:

• 4 outputs enabling independent channel control and simplified wiring
• 5 A operating current supporting moderate current loads per channel
• 150 mΩ Rds(on) reducing conduction losses during operation
• Rated to 150 °C allowing high-temperature operation in harsh environments
• AEC-Q101 and AEC-Q100 compliant design meeting automotive stress criteria
• RoHS-compliant material selection aiding regulatory acceptance

Applications

• Suitable for controlling resistive and inductive loads in powertrain systems
• Ideal for multiplexed actuator switching in vehicle subsystems
• Used with CAN or ECU networks via serial command control
• Can be used for low-side switching of lighting and motor drivers
• Useful in Compact assemblies requiring surface-mount implementation
